1. Front bagger tube
Dump handle tube
Clevis pin 10 x 44mm
1. Top Surfaces Even
3. Vertical Adjustment

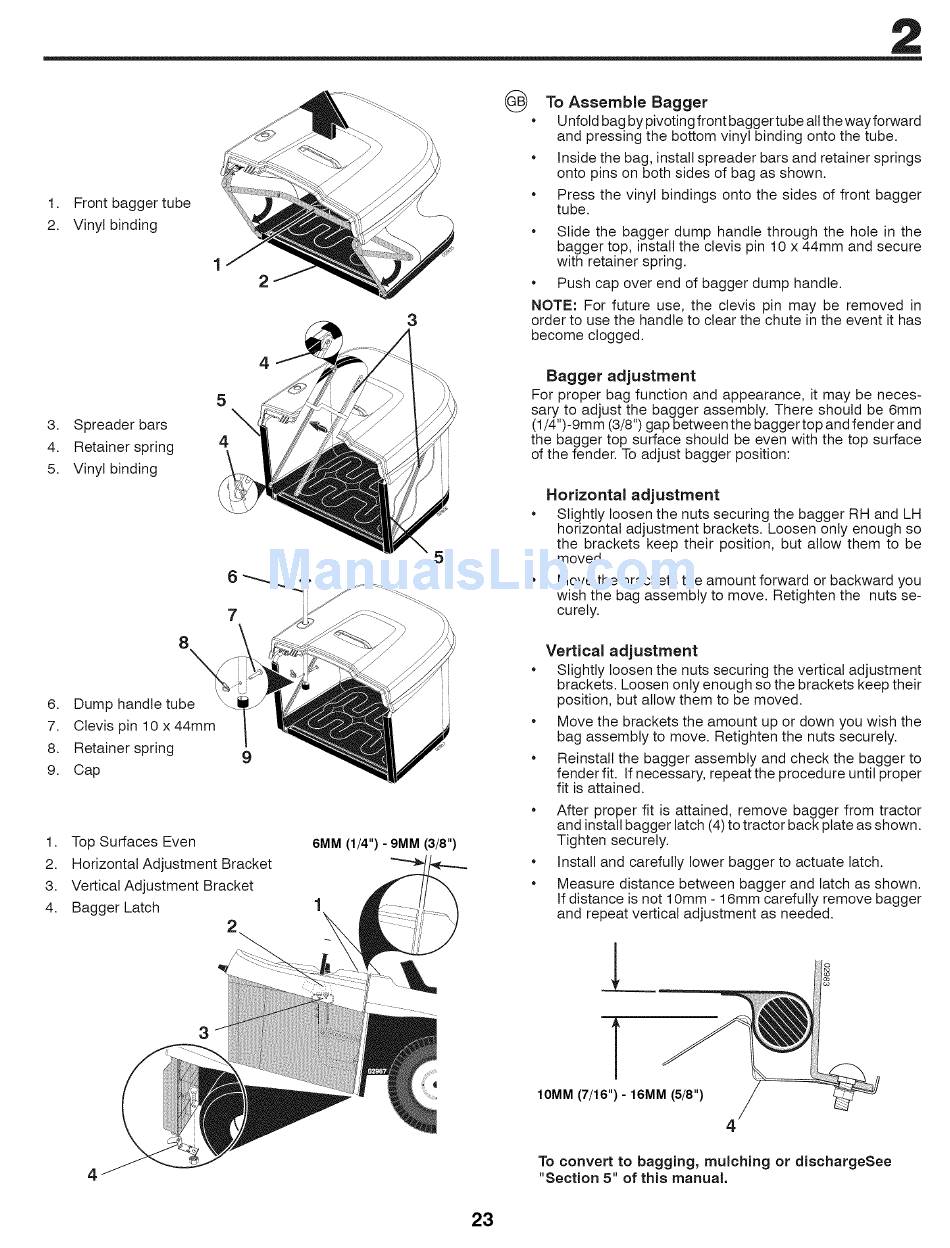

Unfotd bag by pivoting front bagger tube all the way forward
and pressing the bottom vinyl binding onto the tube.
Inside the bag, install spreader bars and retainer springs
onto pins on both sides of bag as shown.
Press the vinyl bindings onto the sides of front bagger
Slide the bagger dump handle through the hole in the
bagger top, install the clevis pin 10 x 44mm and secure
with retainer spring.
Push cap over end of bagger dump handle.
NOTE: For future use, the clevis pin may be removed in
order to use the handle to clear the chute in the event it has
For proper bag function and appearance,
it may be neces-
sary to adjust the bagger assembly. There should be 6mm
(1/4")-9mm (3/8") gap between the bagger top and fender and
the bagger top surface should be even with the top surface
of the fender. To adjust bagger position:
Slightly loosen the nuts securing the bagger RH and LH
horizontal adjustment brackets. Loosen only enough so
the brackets keep their position, but allow them to be
Move the brackets the amount forward or backward you
wish the bag assembly to move. Retighten the nuts se-
Slightly loosen the nuts securing the vertical adjustment
brackets. Loosen only enough so the brackets keep their
position, but allow them to be moved.
Move the brackets the amount up or down you wish the
bag assembly to move. Retighten the nuts securely.
Reinstall the bagger assembly and check the bagger to
fender fit. If necessary, repeat the procedure until proper
fit is attained.
After proper fit is attained, remove bagger from tractor
and install bagger latch (4) to tractor back plate as shown.
install and carefully lower bagger to actuate latch.
Measure distance between bagger and latch as shown.
If distance is not 10mm - 16mm carefully remove bagger
and repeat vertical adjustment as needed.
IOMM (7/16") - 16MM (5/8")
To convert to bagging, mulching or dischargeSee
5" of this manual,
