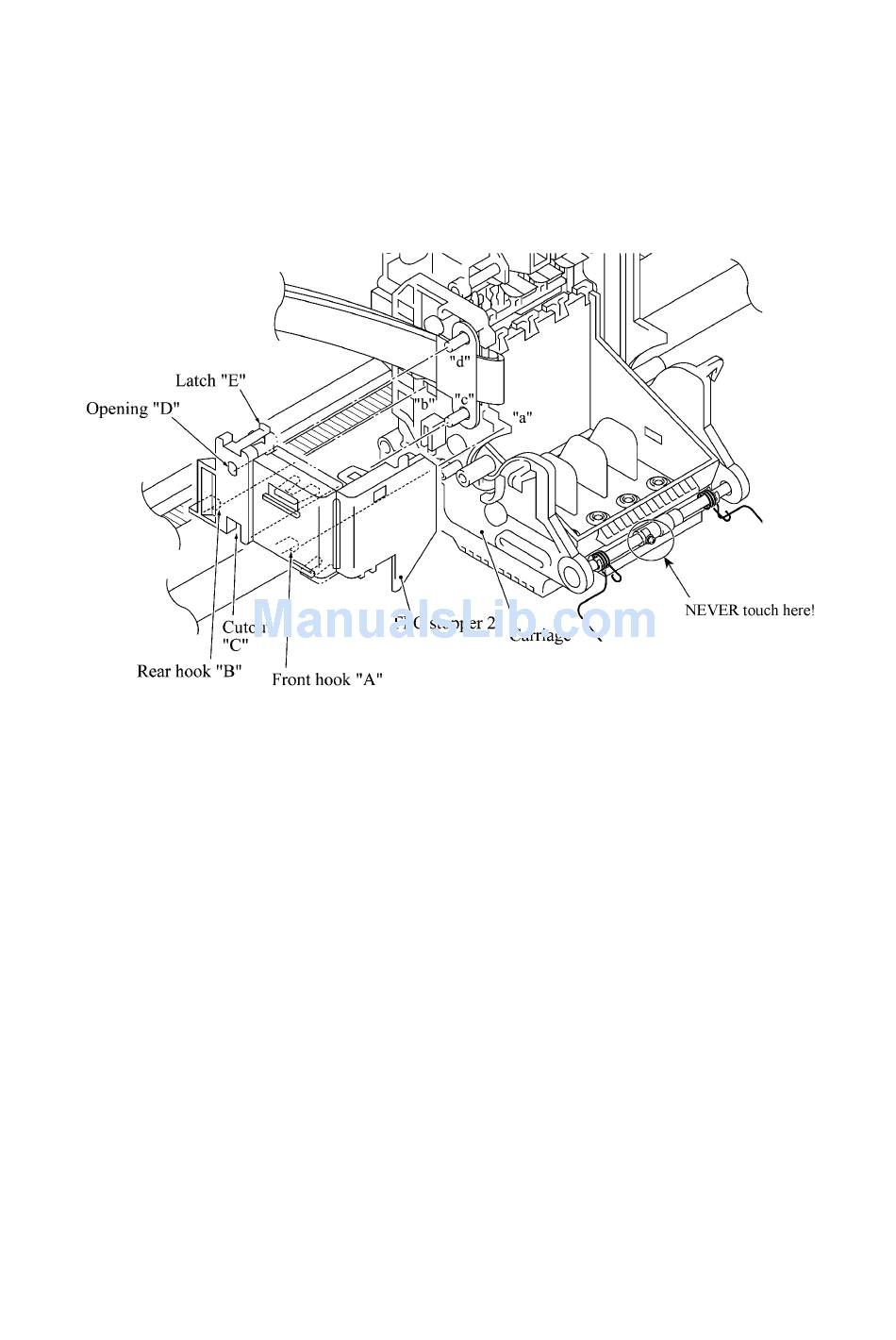

(24) Set the FFC stopper 2 to the carriage according to the following steps:
First, fit front and rear hooks "A" and "B" over section "a" and into hole "b," respectively Fit
cutout "C" and opening "D" over bosses "c" and "d," respectively. Then press the upper edge
of the FFC stopper 2 against the carriage so that latch "E" catches the carriage.
Close the FFC stopper 2.
(25) Set new ink cartridges into the print head unit.
(26) Close the scanner unit.
(27) While pressing the Menu key, plug the power cord into a wall socket.
The carriage automatically moves to the right-end home position.
(28) Press the 8 and 4 keys in this order to start a head cleaning cycle that will take approx. 5
minutes.
(29) Update the head property information stored in the EEPROM of the driver PCB, referring to
Appendix 2, A2.3.
(30) Load paper into the paper tray of the ASF.
(31) Press the 0 and 9 keys in this order to print out a test pattern. On the printed PRINT QUALITY
CHECK SHEET, check the color print quality according to the STEP A instructions. (Refer to
CHAPTER 7, Subsection 7.5.5.) If white horizontal streaks are found in any color block, press
the 8 and 4 keys as in step (28) and perform head cleaning for that color.
(32) Correct the positioning error of the print head unit, referring to Section 6.3 "ADJUSTMENT."
(33) If the print head unit is replaced with a new one, be sure to update the paper feeding correction
value stored in the EEPROM. Refer to Appendix A, A2.5 and CHAPTER 7, Subsection
7.5.14.
(34) Adjust the alignment of vertical print lines, referring to CHAPTER 7, Subsection 7.5.13.
