6.1.15 ASF and ASF roller ASSY
(1) Disconnect the manual feed slot cover sensor harness from the main PCB, if the main PCB has
not been removed.

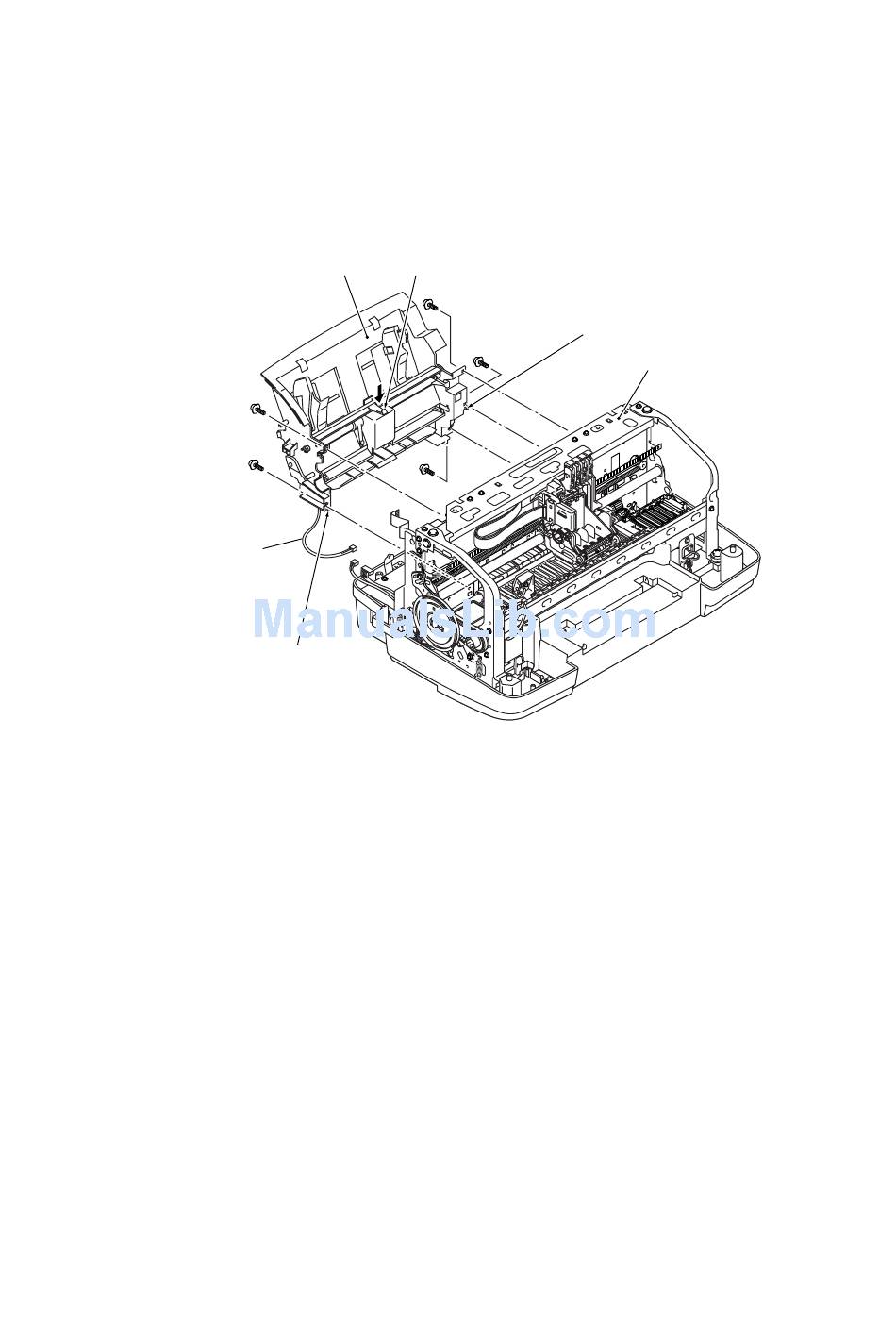

(2) Remove the five screws from the rear side of the ASF and unlatch the ASF from the main
chassis.
Taptite, cup S
M3x6
Manual feed slot
cover sensor harness
Positioning boss
Latch
ASF
6 -4 3
Positioning boss
Main chassis
