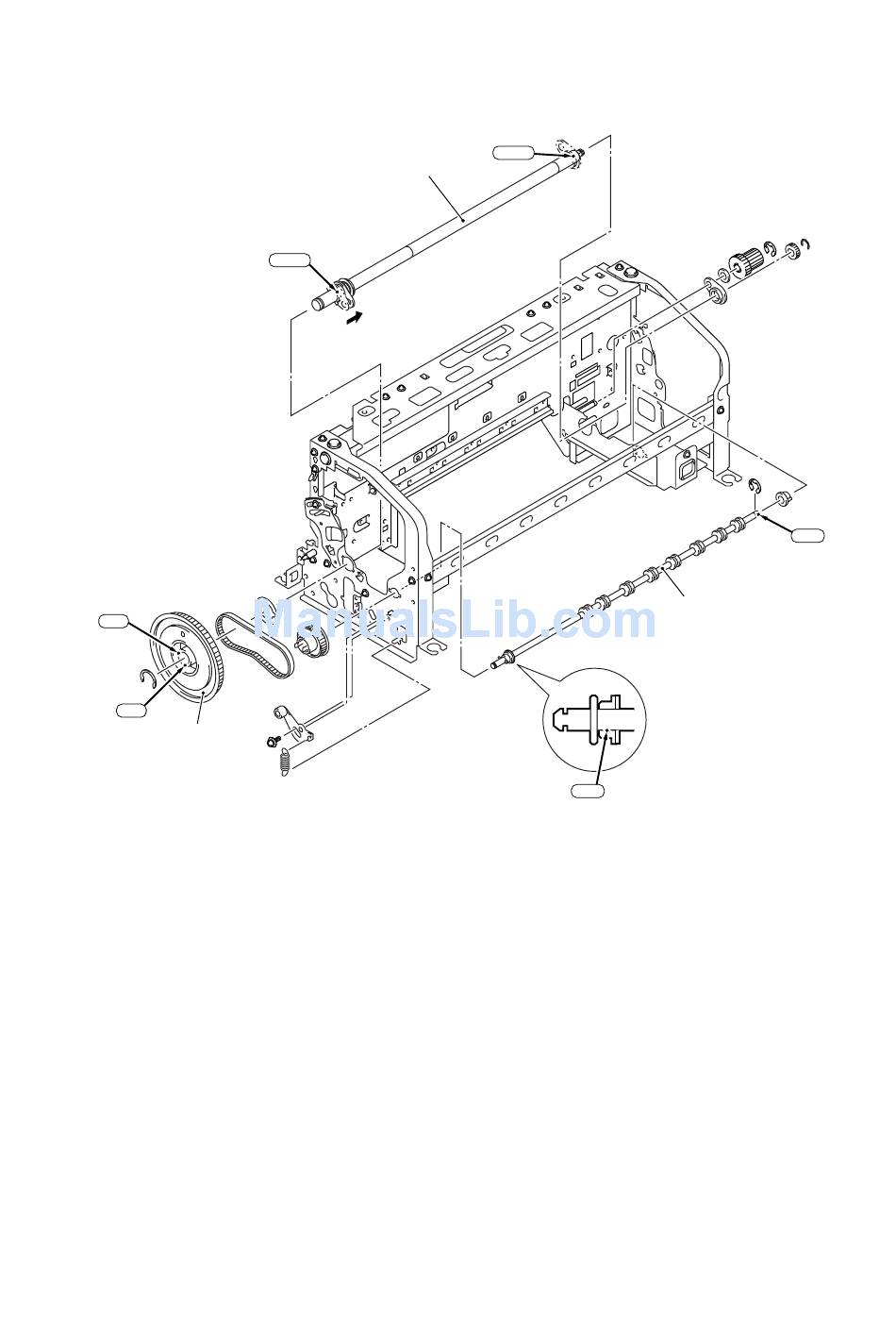

Paper feed roller, paper ejection roller, and PF roller pulley L
EM0.5
Paper feed roller
EM0.5
EM3
Paper ejection roller
EM1
(Contact with
the retaining
ring)
EM1
PF roller pulley L
EM3
(Joint between the shaft and busing)
6 -8 2
