6.1.27 Main Chassis

(1) If you have not removed the main PCB, disconnect the speaker harness, NCU harness, media
flat cables 1 and 2, and manual feed slot cover sensor harness from the main PCB.
(2) If you have not removed the driver PCB, disconnect the purge switch harness and power
supply harness from the driver PCB.

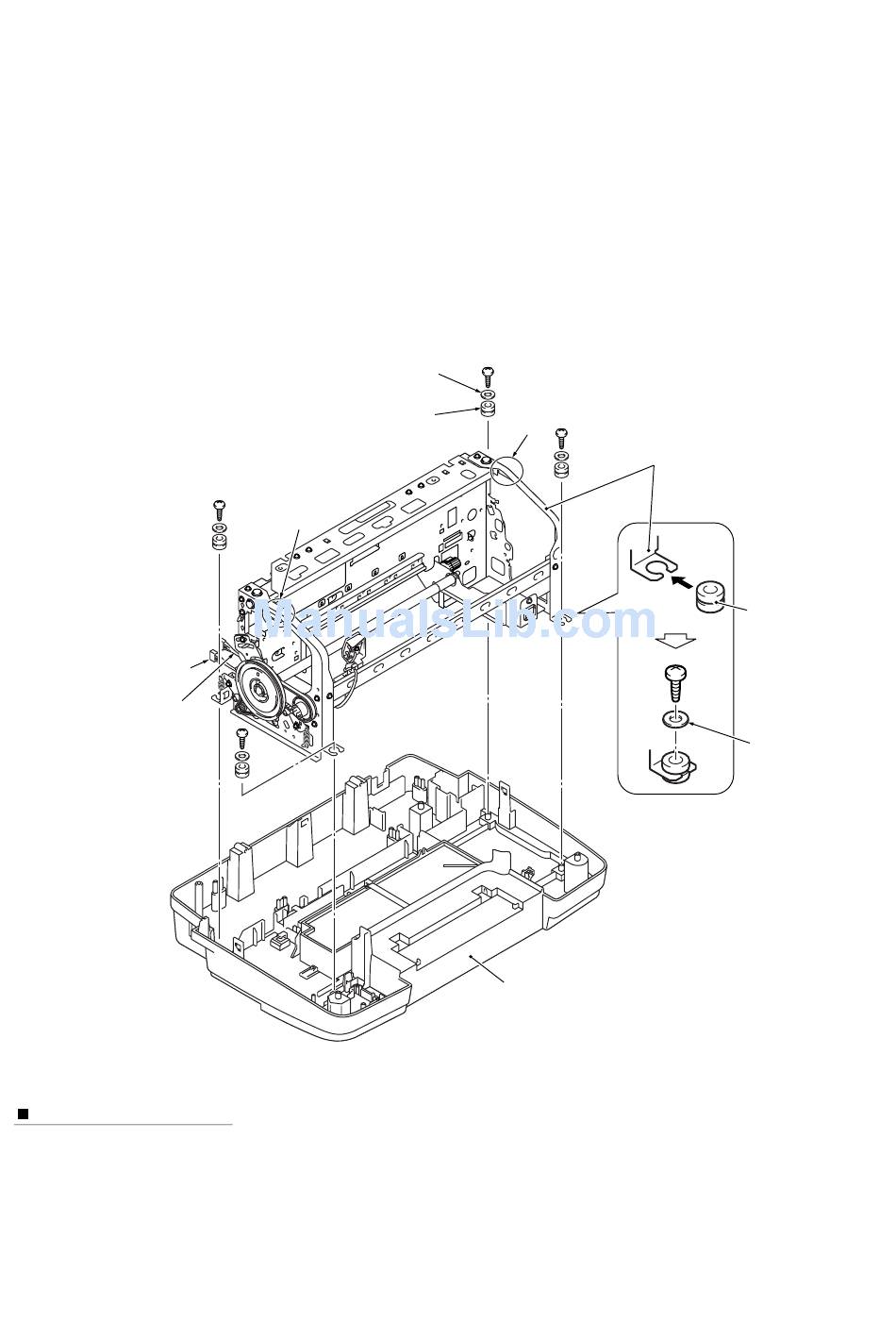

(3) Remove the four screws and lift up the main chassis.
NOTE: When lifting it up, hold sections "Z" by hand. Do not touch other sections that may be
sharp-edged.
Paper feed
motor harness
Ink empty
sensor harness
Reassembling Notes
• When securing the main chassis to the lower cover with four screws, be sure to set the rubber
bushings and plain washers.
Plain washer
Rubber bushing
"Z"
6 -6 8
Screw, bind B tite M4x12
"Z"
Main chassis
Lower cover
Rubber
bushing
Plain
washer
