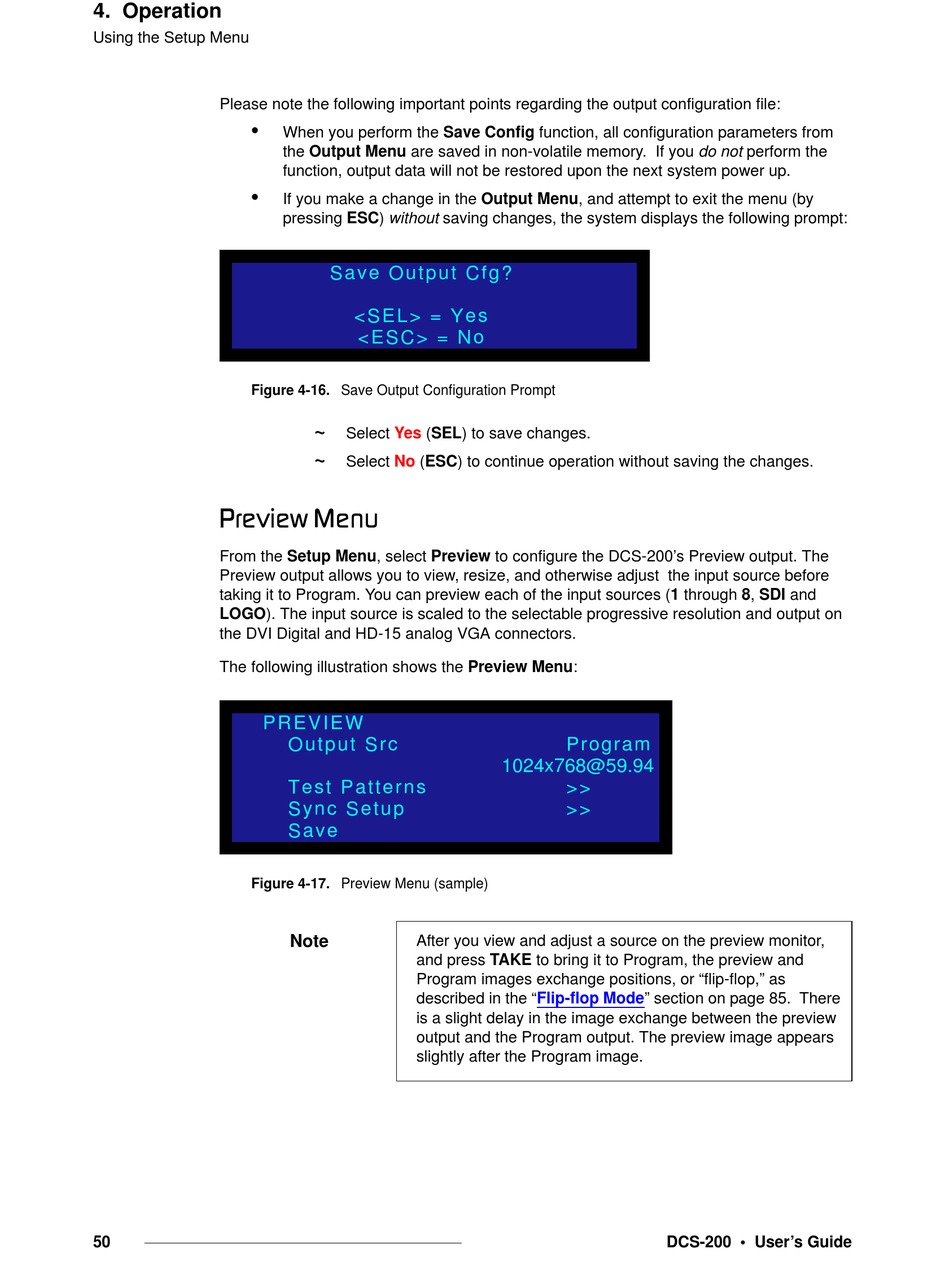

4. Operation
Using the Setup Menu
Please note the following important points regarding the output configuration file:
Figure 4-16. Save Output Configuration Prompt
mêÉîáÉï=jÉåì
From the Setup Menu, select Preview to configure the DCS-200's Preview output. The
Preview output allows you to view, resize, and otherwise adjust the input source before
taking it to Program. You can preview each of the input sources (1 through 8, SDI and
LOGO). The input source is scaled to the selectable progressive resolution and output on
the DVI Digital and HD-15 analog VGA connectors.
The following illustration shows the Preview Menu:
PREV IE W
Figure 4-17. Preview Menu (sample)
50
When you perform the Save Config function, all configuration parameters from
the Output Menu are saved in non-volatile memory. If you do not perform the
function, output data will not be restored upon the next system power up.
If you make a change in the Output Menu, and attempt to exit the menu (by
pressing ESC) without saving changes, the system displays the following prompt:
S a v e O u t p u t C f g ?
< S E L > = Y e s
< E S C > = N o
~
Select
Yes
(SEL) to save changes.
~
Select
No
(ESC) to continue operation without saving the changes.
O u t p u t S r c
Test Patt erns
Sync Setu p
S a v e
Note
After you view and adjust a source on the preview monitor,
and press TAKE to bring it to Program, the preview and
Program images exchange positions, or "flip-flop," as
described in the
is a slight delay in the image exchange between the preview
output and the Program output. The preview image appears
slightly after the Program image.
Program
1024x768@59.94
>>
>>
"Flip-flop
Mode" section on page 85. There
DCS-200 • User's Guide
