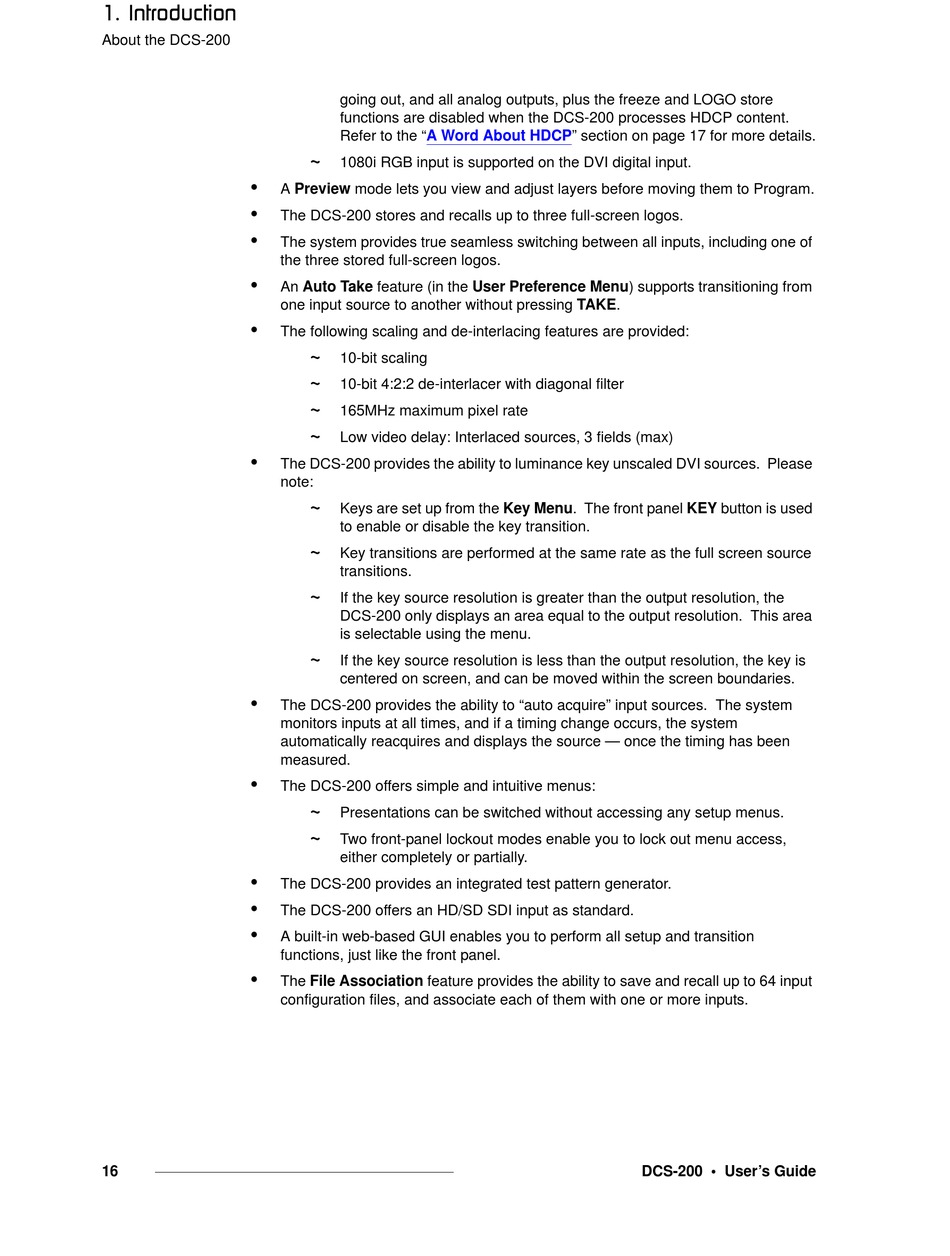

About the DCS-200
16
going out, and all analog outputs, plus the freeze and LOGO store
functions are disabled when the DCS-200 processes HDCP content.
Refer to the
"A Word About
~
1080i RGB input is supported on the DVI digital input.
A Preview mode lets you view and adjust layers before moving them to Program.
The DCS-200 stores and recalls up to three full-screen logos.
The system provides true seamless switching between all inputs, including one of
the three stored full-screen logos.
An Auto Take feature (in the User Preference Menu) supports transitioning from
one input source to another without pressing TAKE.
The following scaling and de-interlacing features are provided:
~
10-bit scaling
~
10-bit 4:2:2 de-interlacer with diagonal filter
~
165MHz maximum pixel rate
~
Low video delay: Interlaced sources, 3 fields (max)
The DCS-200 provides the ability to luminance key unscaled DVI sources. Please
note:
~
Keys are set up from the Key Menu. The front panel KEY button is used
to enable or disable the key transition.
~
Key transitions are performed at the same rate as the full screen source
transitions.
~
If the key source resolution is greater than the output resolution, the
DCS-200 only displays an area equal to the output resolution. This area
is selectable using the menu.
~
If the key source resolution is less than the output resolution, the key is
centered on screen, and can be moved within the screen boundaries.
The DCS-200 provides the ability to "auto acquire" input sources. The system
monitors inputs at all times, and if a timing change occurs, the system
automatically reacquires and displays the source — once the timing has been
measured.
The DCS-200 offers simple and intuitive menus:
~
Presentations can be switched without accessing any setup menus.
~
Two front-panel lockout modes enable you to lock out menu access,
either completely or partially.
The DCS-200 provides an integrated test pattern generator.
The DCS-200 offers an HD/SD SDI input as standard.
A built-in web-based GUI enables you to perform all setup and transition
functions, just like the front panel.
The File Association feature provides the ability to save and recall up to 64 input
configuration files, and associate each of them with one or more inputs.
HDCP" section on page 17 for more details.
DCS-200 • User's Guide
