qê~åë=qáãÉ

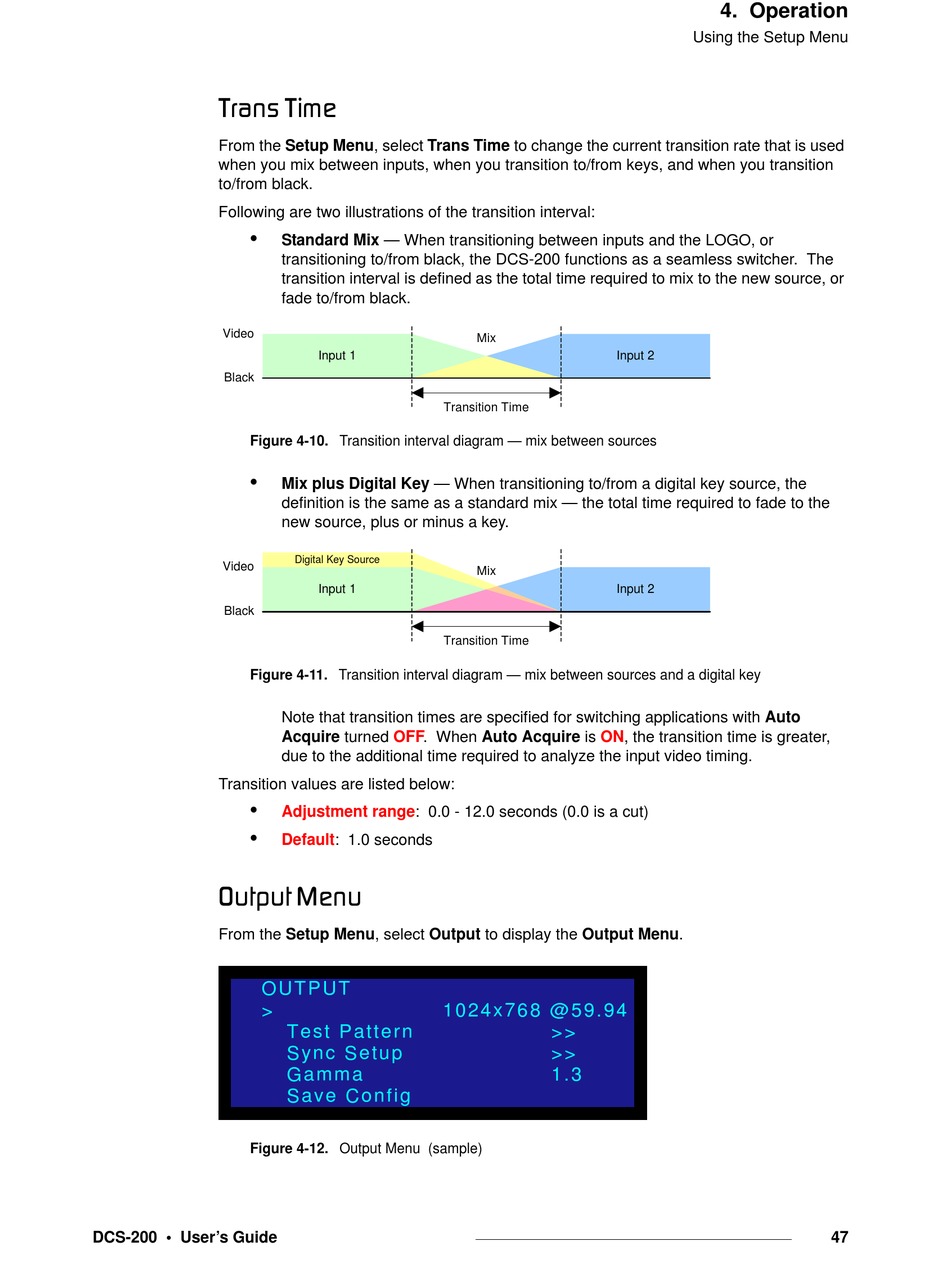

From the Setup Menu, select Trans Time to change the current transition rate that is used
when you mix between inputs, when you transition to/from keys, and when you transition
to/from black.
Following are two illustrations of the transition interval:
Video
Black
Figure 4-10. Transition interval diagram — mix between sources
Video
Black
Figure 4-11. Transition interval diagram — mix between sources and a digital key
Transition values are listed below:
lìíéìí=jÉåì
From the Setup Menu, select Output to display the Output Menu.
OUTPUT
>
Figure 4-12. Output Menu (sample)
DCS-200 • User's Guide
Standard Mix — When transitioning between inputs and the LOGO, or
transitioning to/from black, the DCS-200 functions as a seamless switcher. The
transition interval is defined as the total time required to mix to the new source, or
fade to/from black.
Input 1
Transition Time
Mix plus Digital Key — When transitioning to/from a digital key source, the
definition is the same as a standard mix — the total time required to fade to the
new source, plus or minus a key.
Digital Key Source
Input 1
Transition Time
Note that transition times are specified for switching applications with Auto
Acquire turned OFF. When Auto Acquire is ON, the transition time is greater,
due to the additional time required to analyze the input video timing.
Adjustment
range: 0.0 - 12.0 seconds (0.0 is a cut)
Default: 1.0 seconds
1024x76 8 @59. 94
Test Patt ern
Sync Setu p
G a m m a
Save Con fig
Mix
Input 2
Mix
Input 2
>>
>>
1.3
4. Operation
Using the Setup Menu
47
