Preliminary

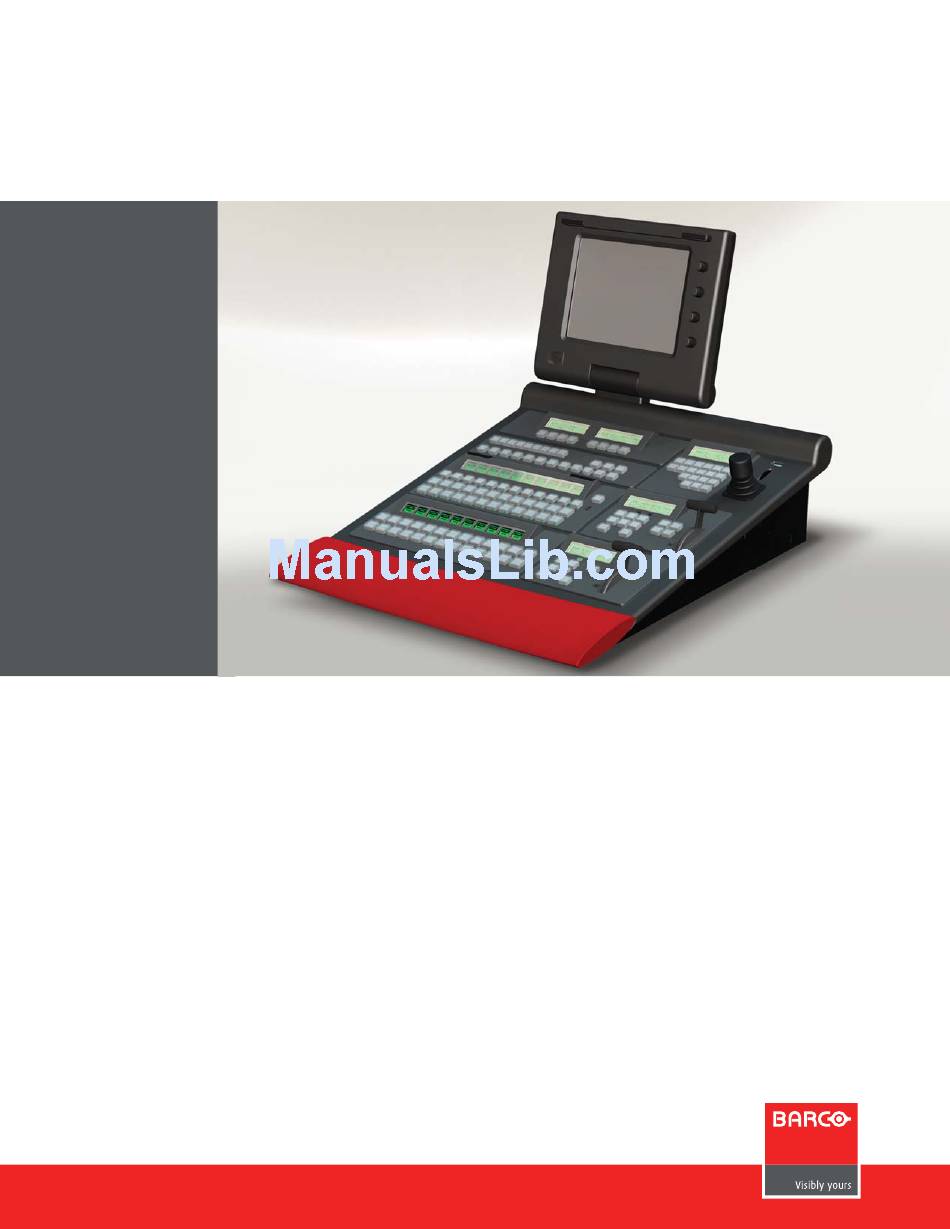

FSN Series Multi-format Production Switchers
The Fusion of Production Switching and Barco Image Processing Expertise
The FSN series is a new high-resolution production switcher that combines advanced video switching functionality with
the power and fl exibility of Barco image processing — in a streamlined multi-format package that's modular, easy to
operate, and easy on your budget.
Imagine the power —
Native HD or SD operation, cross-conversion, frame synchronization and selectable native output formats (480i, 576i,
720p, 1080i).
Unprecedented input and output fl exibility, using the power of Barco's Athena scalers. The system's architecture
enables you to install up to fi ve dual-channel universal input cards, and up to two dual-channel universal output
cards. By seamlessly integrating analog, digital, and computer resolutions into your workfl ow, the FSN series places
serious input and output power — at your fi ngertips.
Internal storage of 100 still frames (with up to three frame buffers on line simultaneously), up to four channels of
optional internal 2D DVEs, and integration with the Encore Presentation System.
A minimum two lines of delay for native genlocked inputs.
The FSN series delivers — with a highly confi gurable multi-format system that enables users to adapt to today's
continuously demanding live production environment — at an extremely economical price point. As the industry's
next generation switcher, the FSN series represents the perfect fusion of production switching, Athena scaling, and the
roadworthiness you've come to expect from Barco.

Advertisement

   Related Manuals for Barco FSN-150

   Summary of Contents for Barco FSN-150

  • Page 1

    The FSN series is a new high-resolution production switcher that combines advanced video switching functionality with the power and fl exibility of Barco image processing — in a streamlined multi-format package that’s modular, easy to operate, and easy on your budget.

  • Page 2

    FSN Series Control Panels FSN-150 — a 1.5 M/E panel providing 20 assignable crosspoints (10 buttons plus SHIFT) Each FSN series panel is divided into eight sections: Custom Control Section Buttons can be programmed to perform functions such as GPO triggers, macros, freeze, menu access and more.

  • Page 3

    (UIC), each providing the power of two Barco Athena scalers. • Install up to two dual-channel Universal Output Cards (UOC) as Aux Bus outputs. Each card provides the power of two Barco Athena scalers, with selectable output resolutions up to UXGA or 1920x1080. • Install up to two dual-channel...

  • Page 4

    FSN-1400, including cameras, PCs, VTRs, DVRs and servers. • The FSN-1400 connects to the control panel (FSN-150 or FSN-250) via Ethernet. • Program and Preview outputs enable the technical director to view the output of the switcher, and preview the “look” that’s coming next.
