Removing and Replacing the I/O Board

This section describes how to remove and replace the I/O Board.

NOTE

Prior to removing the I/O Board, the Front, Top, and Left Side panels, the

Power Supply, the PCI Retainer Clip, and PCI I/O Cards need to be removed.

See the appropriate section(s) for removing and replacing these components.

Removing the I/O Board

1. Remove the cables from the USB Clip from the back of the Workstation.

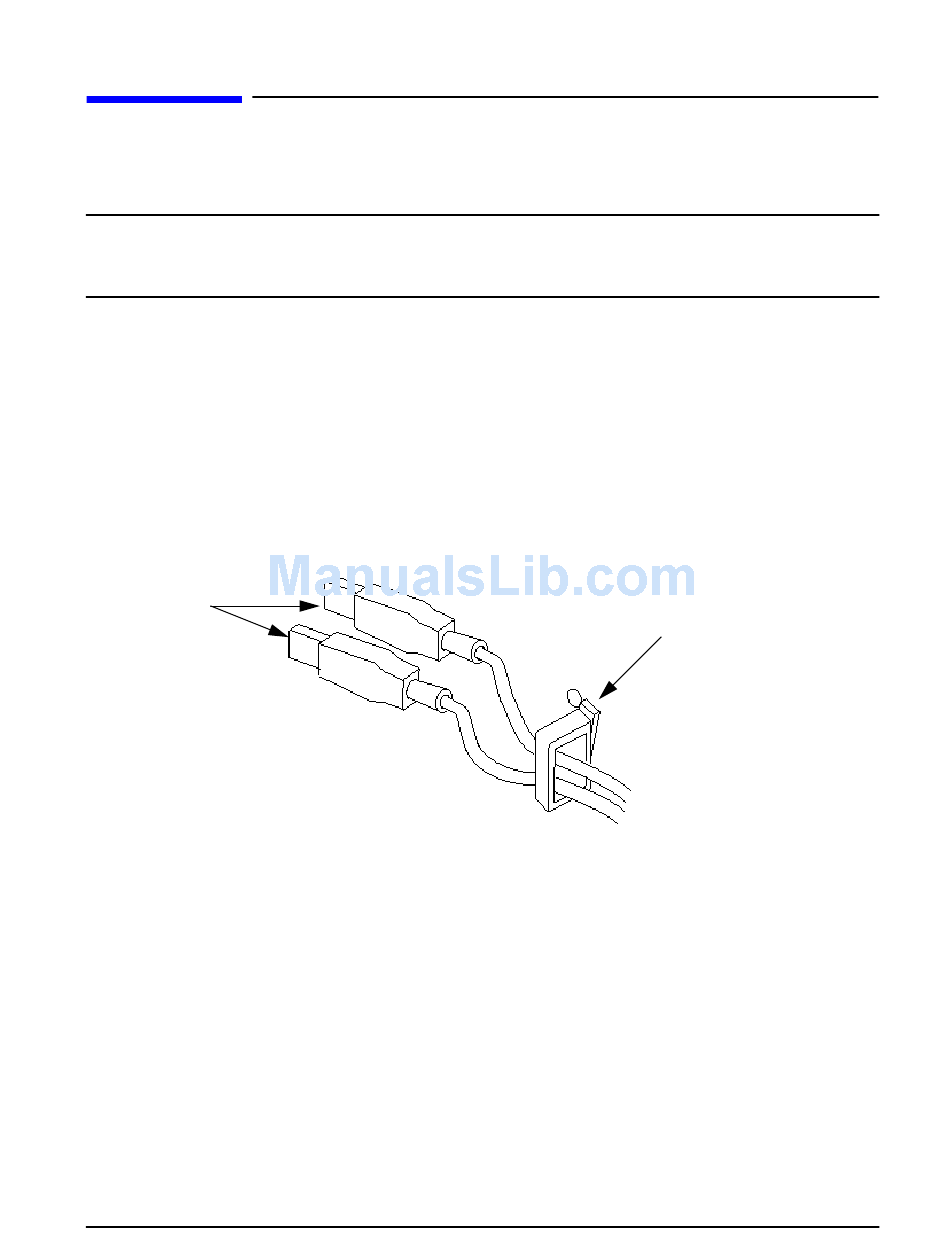

Figure 2-41. Opening the USB Clip

Keyboard and

Mouse connectors.

2. Disconnect all cables and SCSI terminators from the back of the system.

3. Remove the two T-15 Torx screws that secure the I/O board to the back of the

workstation.

Chapter 2

Parts Removal and Replacement

Removing and Replacing the I/O Board

Insert a ﬁngernail under the

locking lever of the USB clip .

Lift up.
