Parts Removal and Replacement
Removing and Replacing the Hard Disk Drive
Replacing the Hard Disk Drives

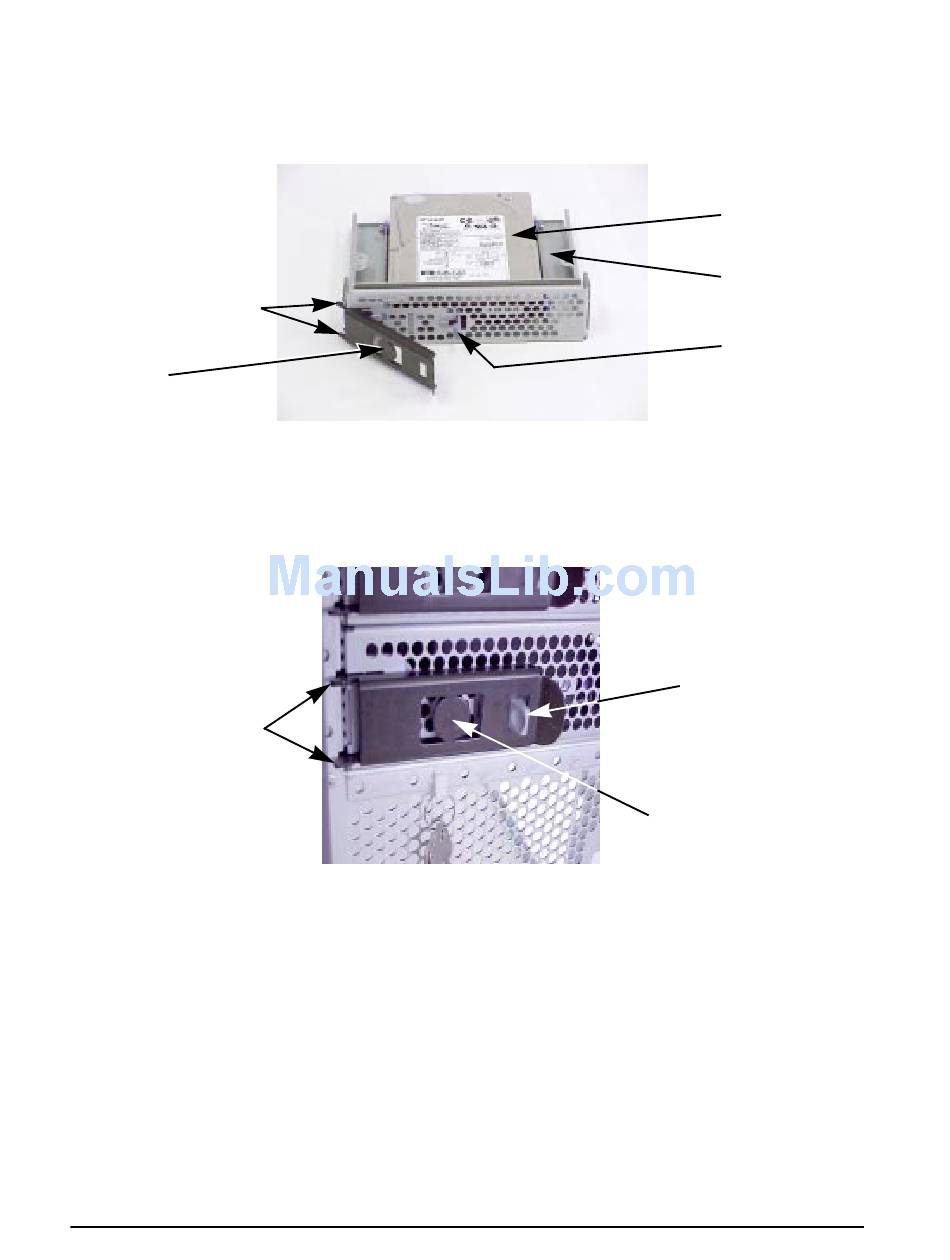

Figure 2-36. Details of Hard Disk Drive and Tray
Release Lever Hinge Hooks
Release Lever
1. Making sure that the hooks on the hinge end of the release lever engage their slots in
the chassis, push the black release lever inward onto the release hook, connecting the
hard disk to the hard disk backplane board at the back of the hard disk drive bay.
Figure 2-37. Hard Disk Drives
Release Lever Hinge Hooks
2. To verify good connection to the hard disk backplane board, press firmly on the four
corners of the carrier.
40
Hard Disk Drive
Hard Disk Drive Tray
Release Hook
Release Hook
Release Lever
