Parts Removal and Replacement
Removing and Replacing the DDS-3 Tape Drive
3. Gently slide the DDS-3 drive tray assembly out of the chassis and disconnect the power
and ribbon cables from the DDS-3 tape drive.
4. Remove the DDS-3 drive tray assembly from the drive bay.

Replacing the DDS-3 Tape Drive

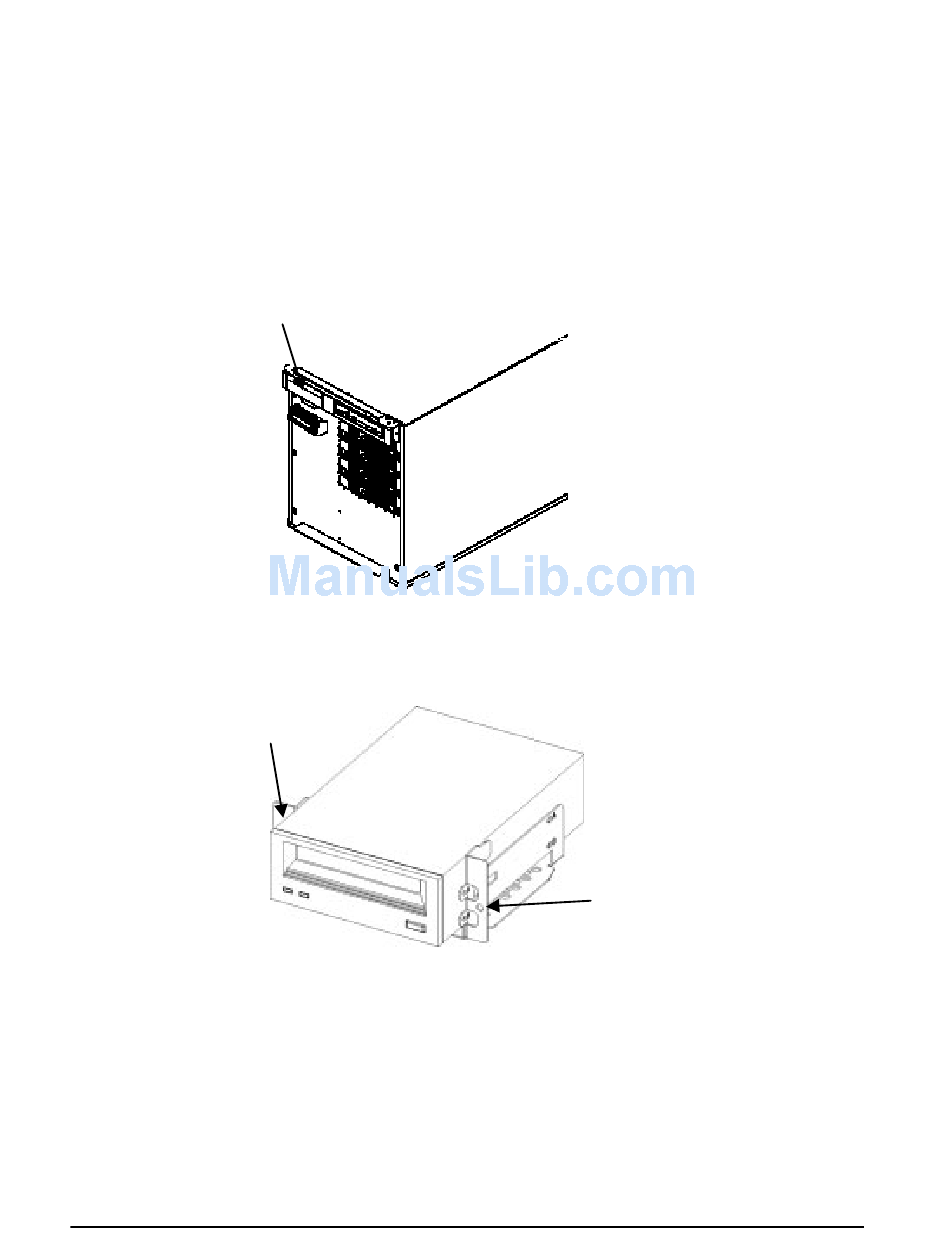

Figure 2-32. Replacing the DDS-3 Tape Drive
DDS-3 tape drive
Figure 2-33. Securing the DDS-3 Tape Drive
T-15 Torx
T-15 Torx screw
Screws
1. Reconnect the power and ribbon cables and gently slide the DDS-3 drive carrier
halfway into the tape drive bay.
2. From the front of the workstation, push the DDS-3 drive carrier assembly into the drive
bay so that the assembly rests flush against the front panel. Take care not to pinch the
drive ribbon cable; reach in through the top of the workstation, where the EMI cover
was, to make any required adjustments.
36
T-15 Torx Screws
T-15 Torx screw
Chapter 2
