Parts Removal and Replacement
CD ROM Drive

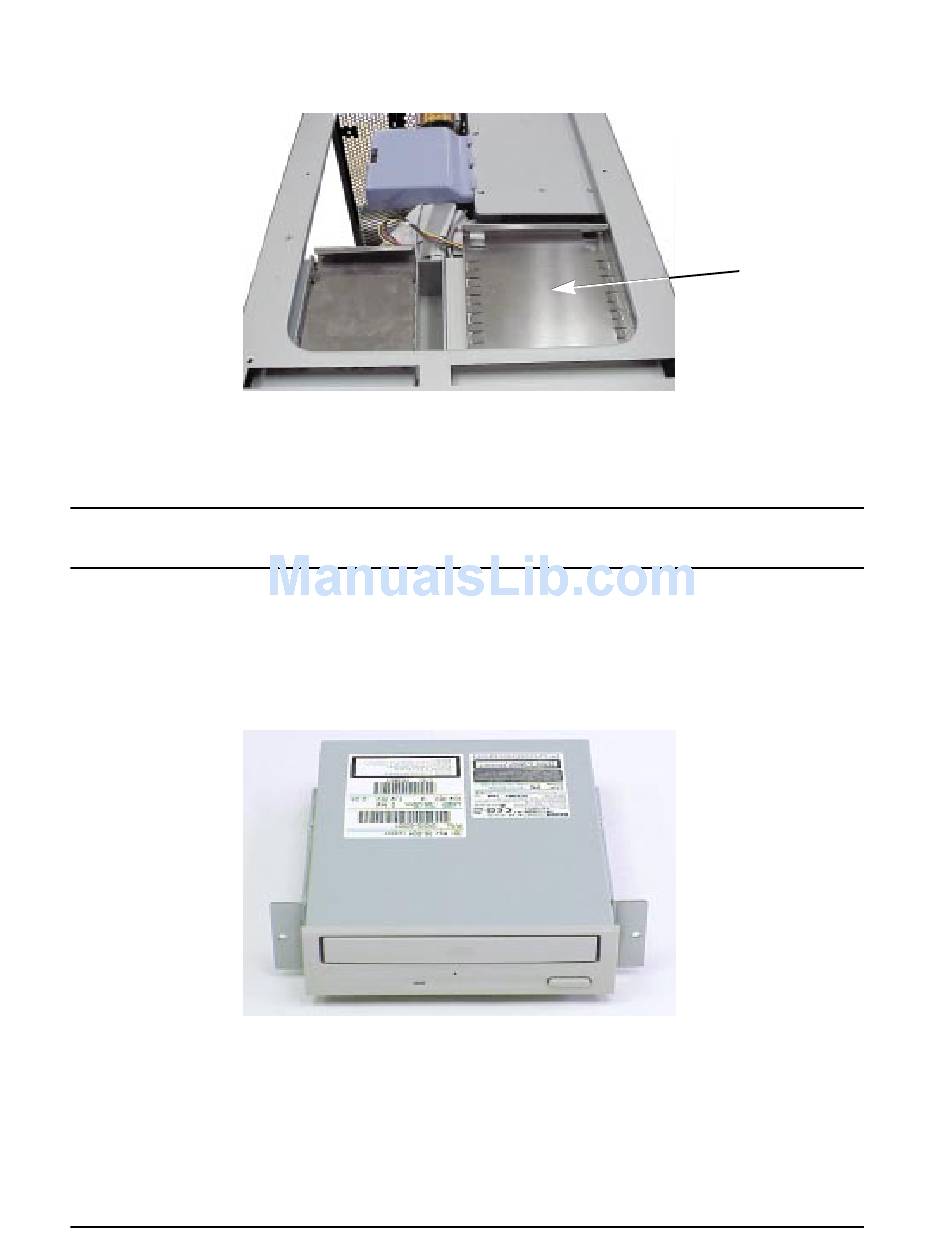

Figure 2-22. Removing the EMI Cover
3. Slide the CD ROM drive out about halfway and disconnect the audio cable, power cable,
and ATAPI interface ribbon cable from the back of the CD ROM drive. Once the cables
are disconnected, pull the CD ROM drive out of the chassis and set it aside.
CAUTION
CD ROM drives are fragile and can easily be damaged if dropped. Handle
with care.
Replacing the CD ROM Drive
1. Slide the CD ROM drive/tray assembly halfway into the CD ROM drive bay (above the
four hard disk drive bays).
Figure 2-23. The CD ROM Drive/Tray Assembly
2. Connect the power cable, the ATAPI interface ribbon cable (the data cable), and the
audio cable to the back of the CD ROM drive, as shown below.
30
CD Drive's
EMI Cover
Chapter 2
