Parts Removal and Replacement
Replacing the Front-Panel Display
Replacing the Front-Panel Display
1. Connect the chassis hooks on the left side of the front-panel display with the
corresponding slots on the chassis.

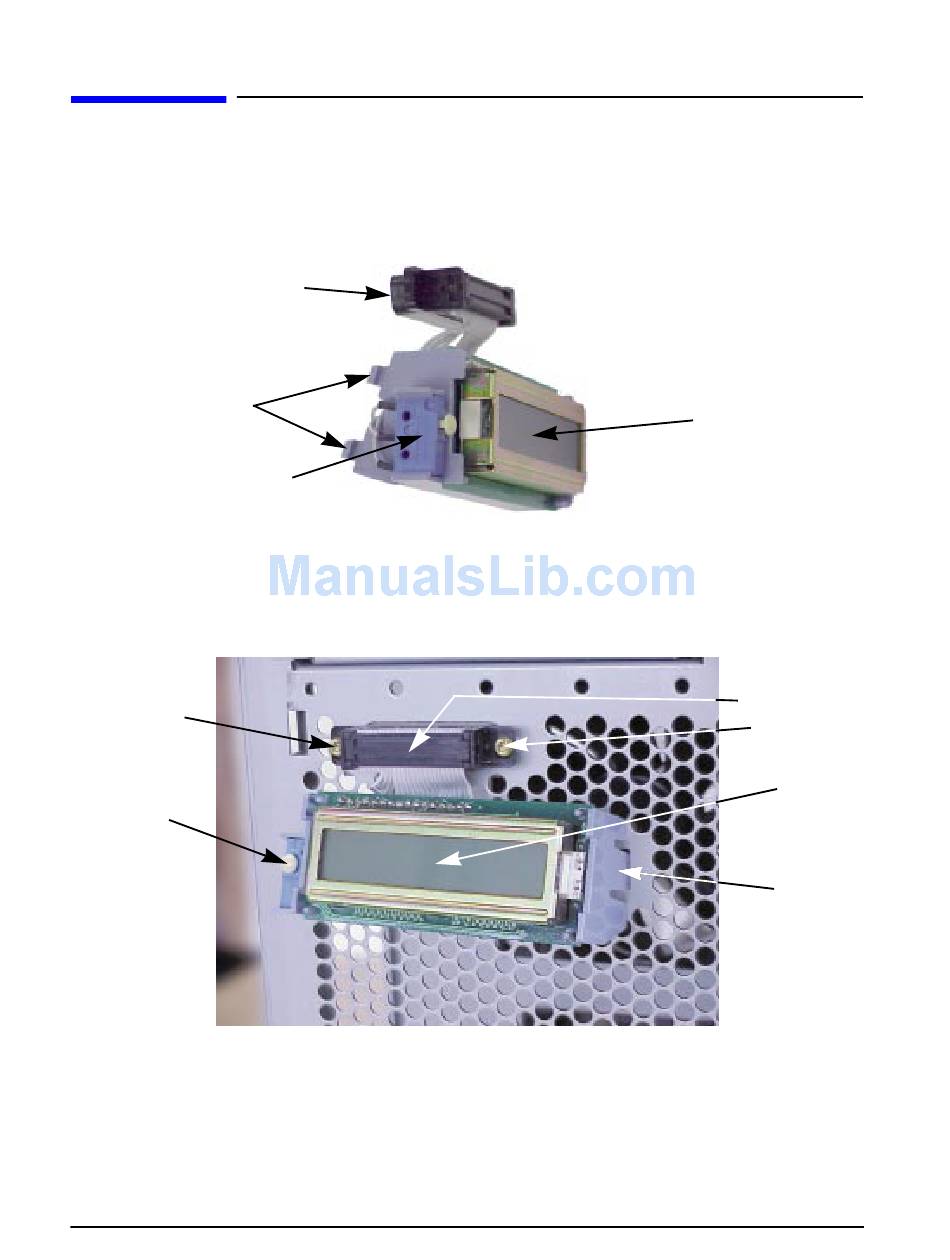

Figure 2-39. Front Panel Display Hooks
25-pin Connector
Front-Panel Display Hooks
Power Switch
2. Squeeze the right side tab while rotating the assembly to the right. Release the tab
when the assembly is flush with the chassis; the front-panel display will snap into
place.
Figure 2-40. Front Panel Display
T-15 Torx Screw
Power Switch
3. Plug the ribbon cable's 25-pin connector into its socket and secure it with the two T-15
Torx screws.
42
Front-Panel Display
25-pin Connector
T-15 Torx Screw
Front-Panel
Display
Release Tab
Chapter 2
