Parts Removal and Replacement
Top, Front, and Side Panels

Removing the Top and Side Panels

1. Facing the back of the workstation, remove the T-15 Torx thumbscrew located in each
top corner of the back of the workstation. The upper left one (when facing the back of
the workstation) is the power supply interlock—a safety feature that disengages the
power supply when the thumbscrew is removed.

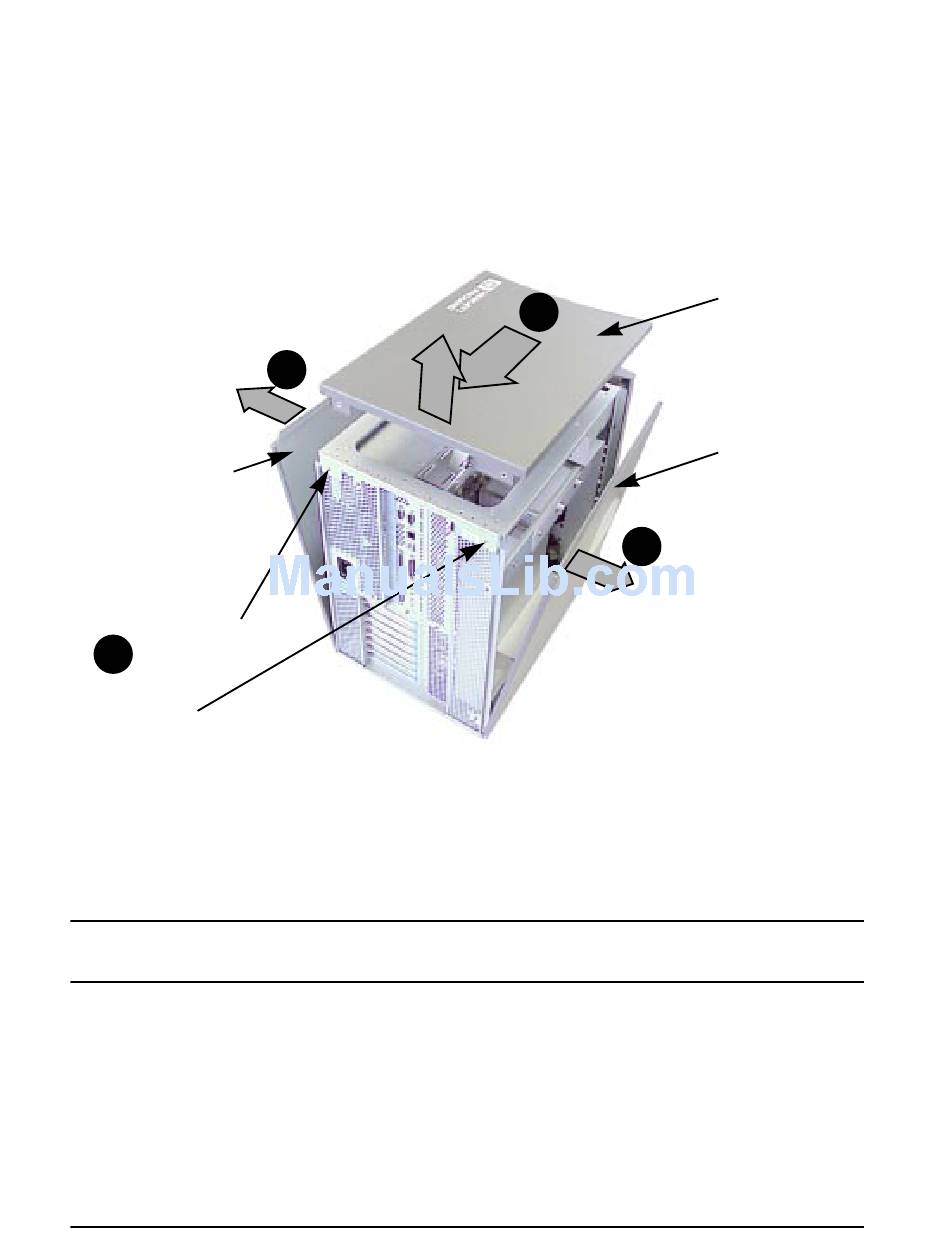

Figure 2-3. Back View of the Workstation
Right Side Panel
Hole for T-15
Torx Thumbscrew
(Power Supply Interlock)
1
Hole for T-15
Torx Thumbscrew
2. Slide the top panel toward the back of the workstation and then lift up to remove it. Set
the top panel and its screws aside.
3. Lift one of the side panels up and away from the chassis and out of its groove in the
bottom of the side of the chassis. Remove the other side panel in the same way. Set the
panels aside.
CAUTION To avoid damage to internal components, leave the system in the upright
position.
14
3
2
3
Top Panel
Left Side Panel
Chapter 2
