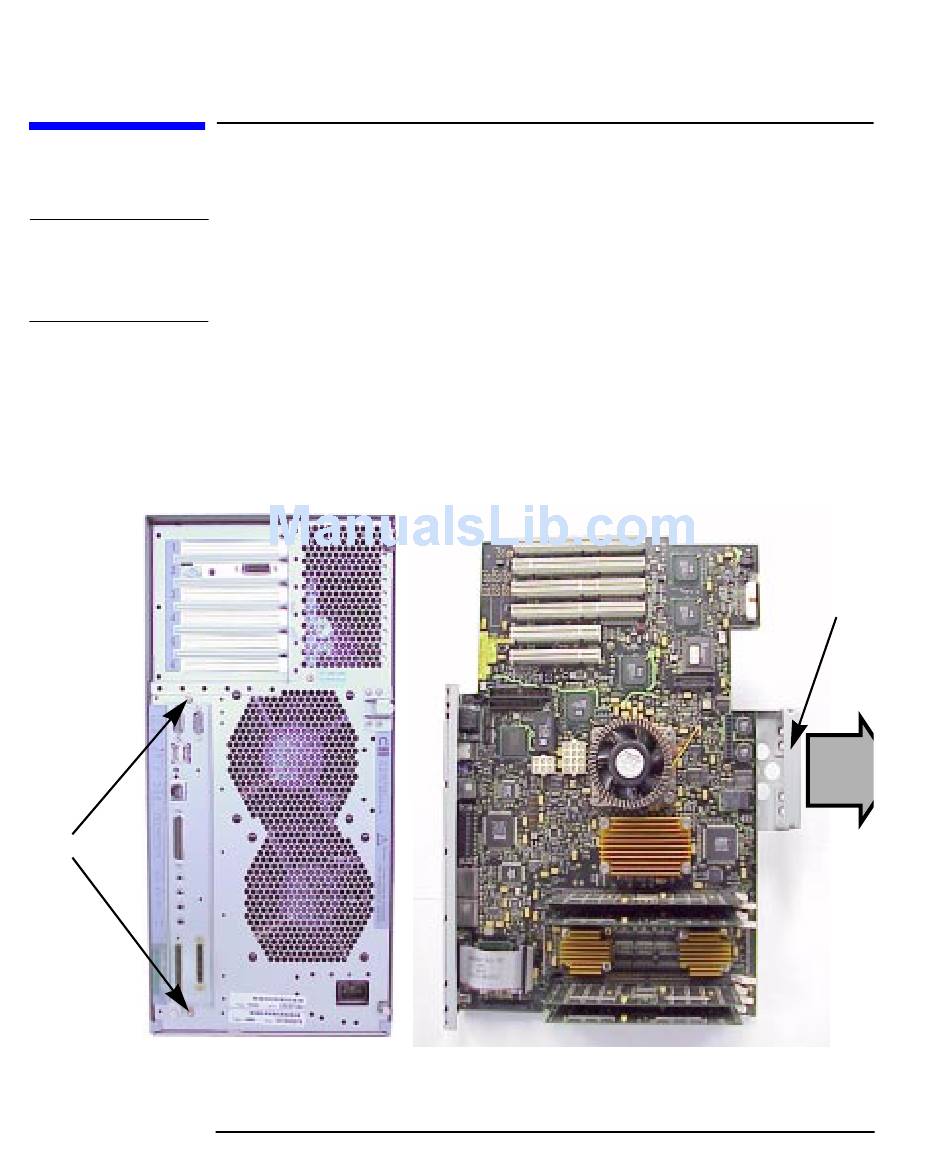

Figure 2-12

5 Torx Screws

System Board Removal/Replacement

Removing and Replacing the System Board

To avoid system damage, make sure your static-grounding strap

is securely attached to your wrist and to the bare metal on the

workstation.

1. Ensure all workstation cables are out of the way to avoid interference

or damage when you remove the system board tray.

Removing the System Board

2. Remove the two T-15 Torx screws that secure the system board tray to

the rear wall of the workstation.

System boa

tray handle

Chapter 2
