Floppy Disk Drive
This section describes how to remove and replace the floppy disk drive.
NOTE
Prior to removing the Floppy Disk Drive, the Front, Top, and Left Side panels
need to be removed. See the appropriate section(s) for removing and replacing
these components.
Removing the Floppy Disk Drive
1. Remove the two T-15 Torx screws securing the Floppy Disk drive to the front panel of
the workstation.

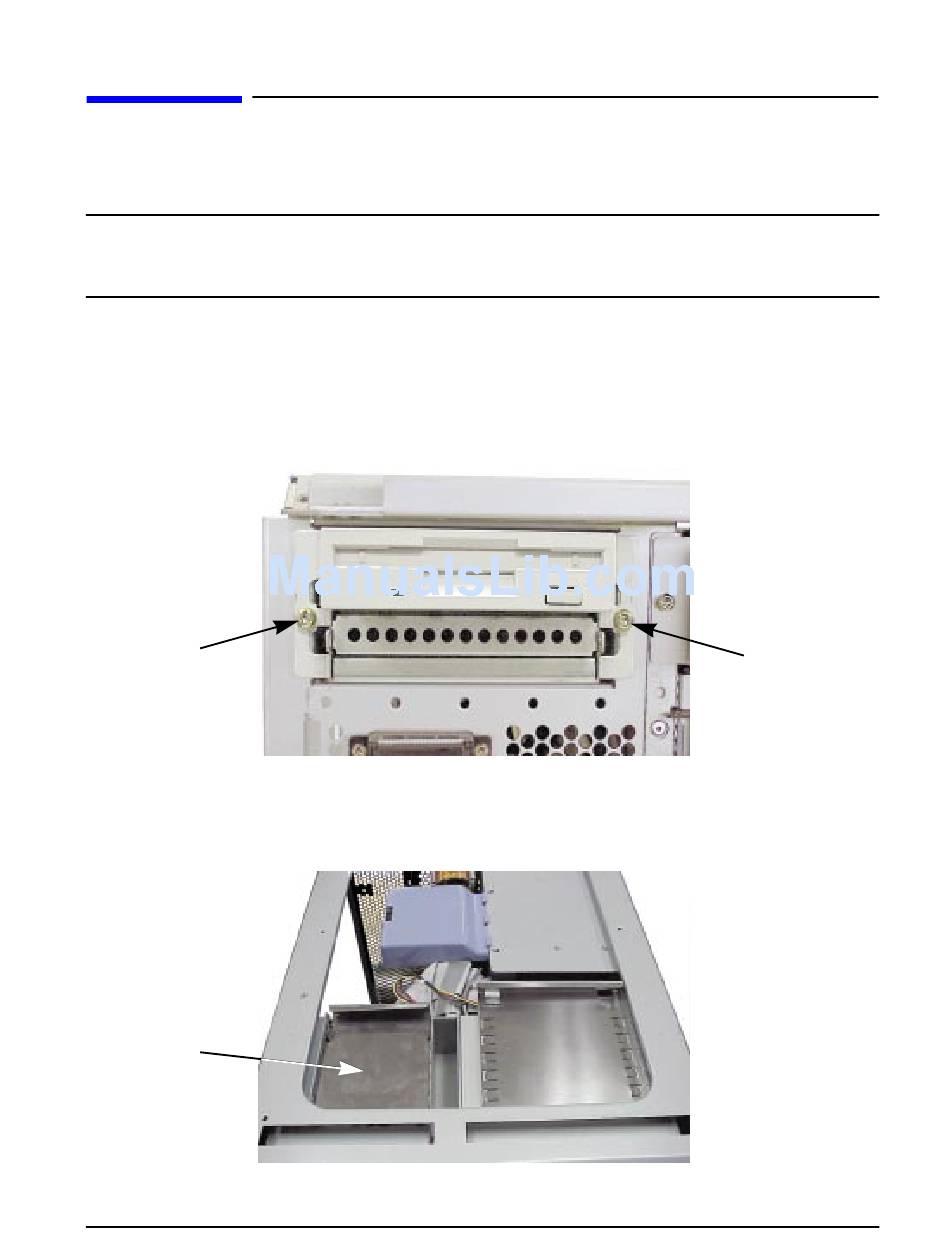

Figure 2-27. Removing the Torx Screws
T-15 Torx Screw
2. Remove the thin, metal EMI (electromagnetic interference) cover, which is snapped in
place above the floppy drive bay.
Figure 2-28. Removing the EMI Cover
Floppy Disk Drive's
EMI Cover
Chapter 2
Parts Removal and Replacement
Floppy Disk Drive
T-15 Torx Screw
33
