Removing the Front-Panel Display

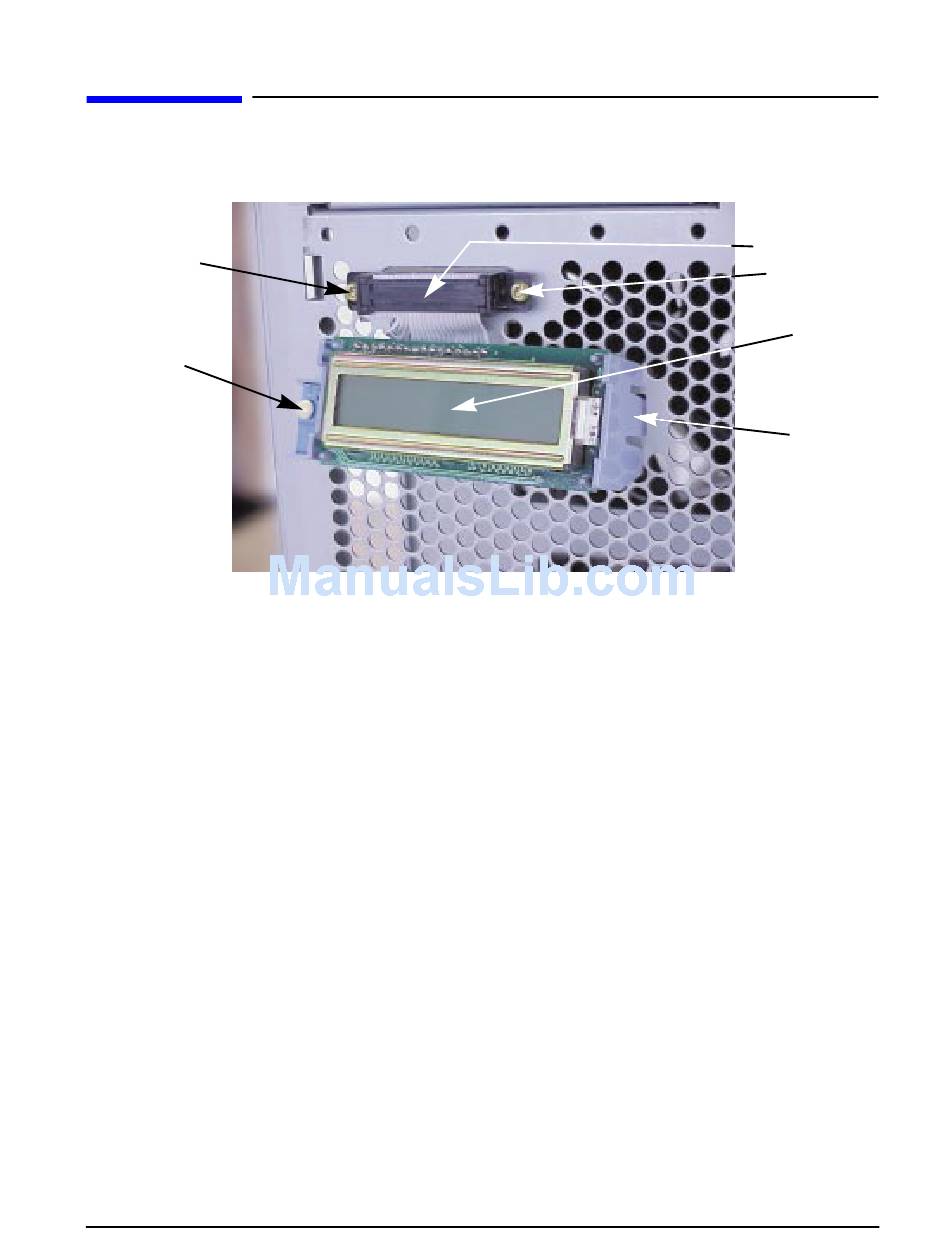

Figure 2-38. Front Panel Display
T-15 Torx Screw
Power Switch
1. Remove the two T-15 Torx screws that secure the front-panel display's connector.
2. Unplug the ribbon cable's 25-pin connector from its socket.
3. The power switch/LCD assembly has two chassis hooks on the left side and a release
tab on the right side. Squeeze the release tab (push it toward the power switch) until it
releases from the chassis, and then rotate the bracket left and outward to lift the hooks
out of the chassis slots.
Chapter 2
Parts Removal and Replacement
Removing the Front-Panel Display
25-pin Connector
T-15 Torx Screw
Front-Panel
Display
Release Tab
