Removing and Replacing the DDS-3 Tape Drive
This section describes how to remove and replace the DDS-3 tape drive.
NOTE
Prior to removing the DDS-3 Drive, the Front, Top, and Left Side panels need
to be removed. See the appropriate section(s) for removing and replacing
these components.
Removing the DDS-3 Tape Drive
1. Remove the two T-15 Torx screws securing the DDS-3 tape drive to the front panel of
the workstation. (See )

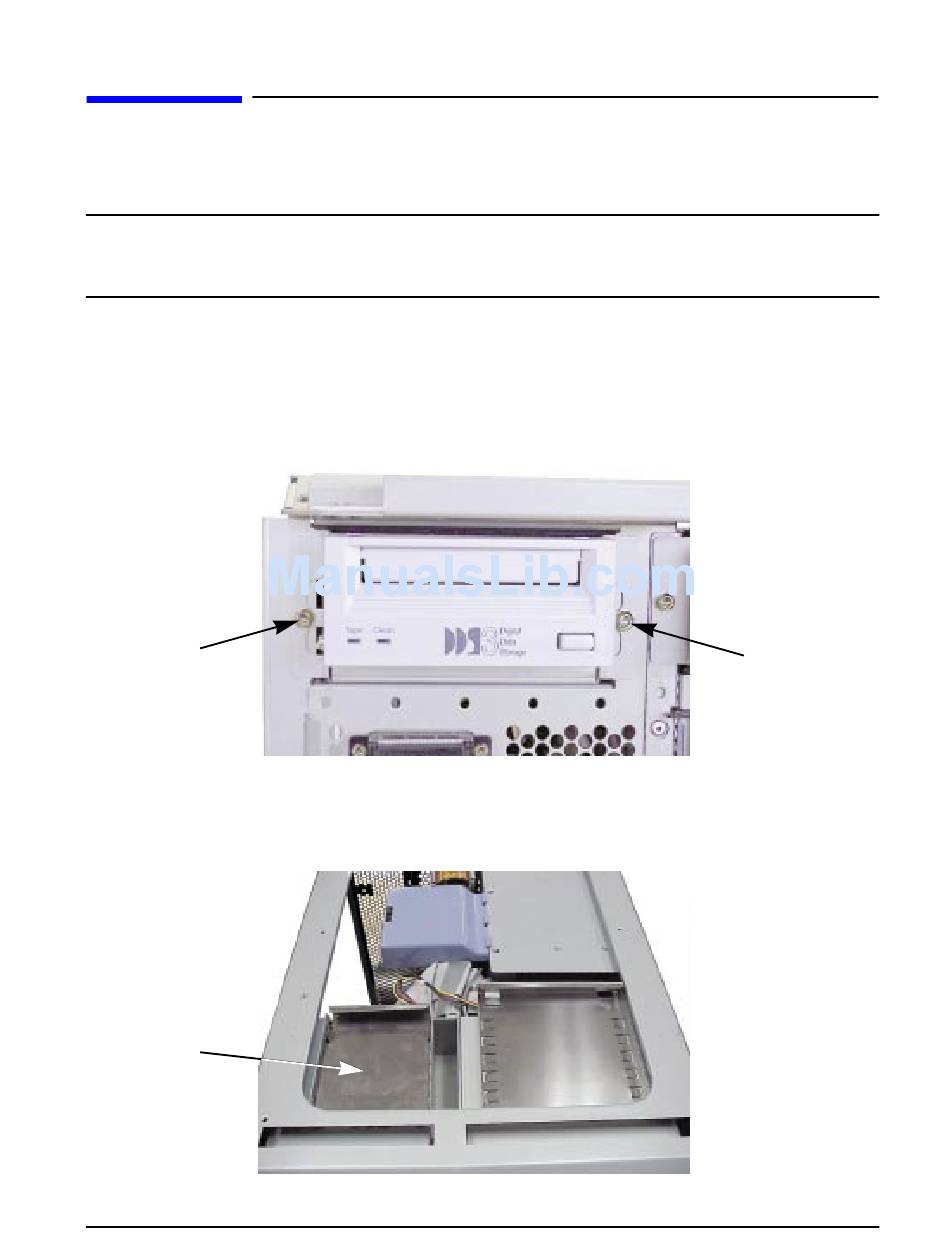

Figure 2-30. Removing the Torx Screws
T-15 Torx Screw
2. Remove the thin, metal EMI (electromagnetic interference) cover, which is snapped in
place above the DDS-3 drive bay.
Figure 2-31. Removing the EMI Cover
DDS Drive's
EMI Cover
Chapter 2
Parts Removal and Replacement
Removing and Replacing the DDS-3 Tape Drive
T-15 Torx Screw
35
