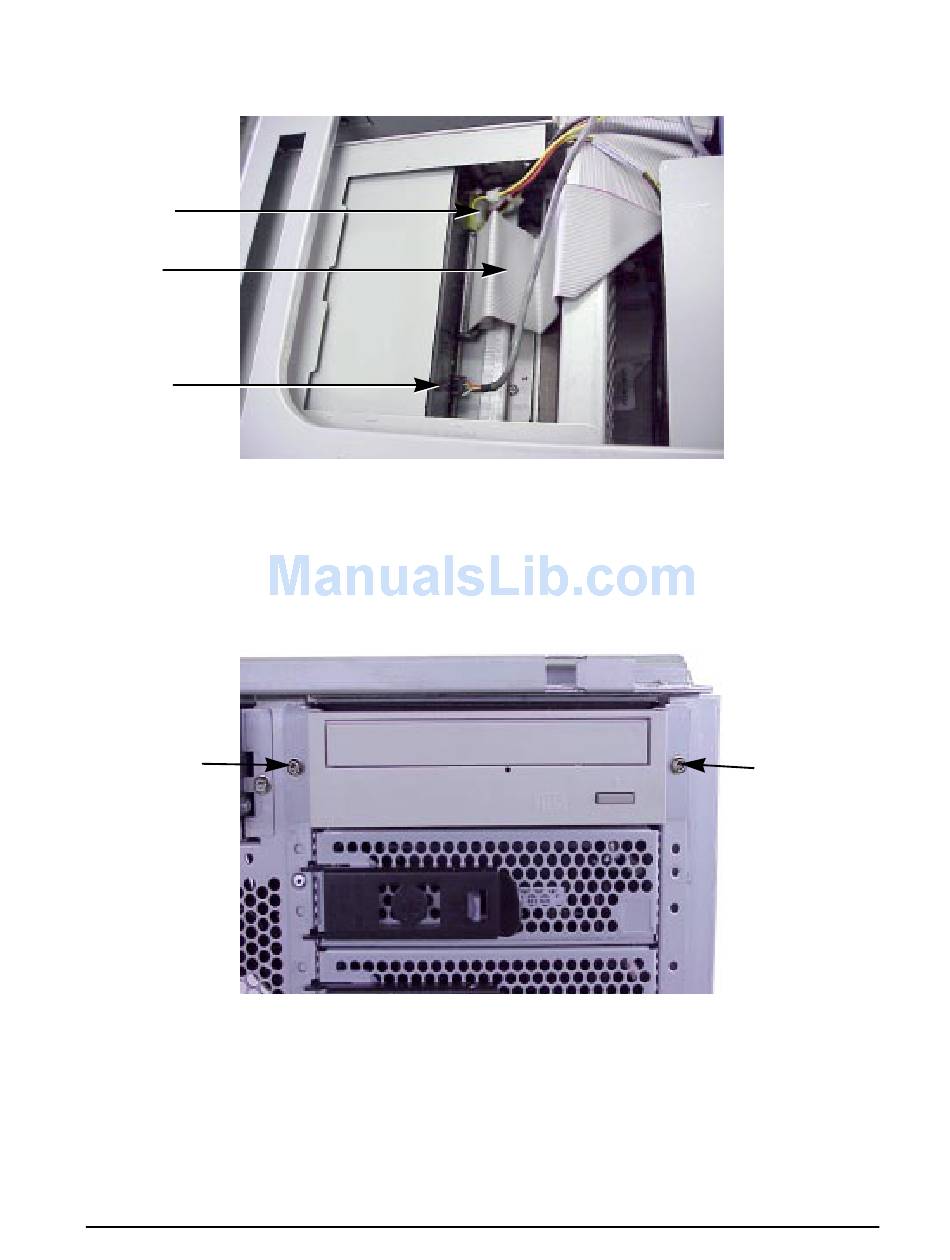

Figure 2-24. Attaching CD ROM Drive Cables
Power Cable
Data Cable
Audio Cable
3. From the front of the workstation, carefully push the CD ROM drive/tray assembly
flush against the front panel, taking care not to pinch any cables.
4. Insert and tighten the two T-15 Torx screws to secure the CD ROM drive tray to the
front panel of the chassis.
Figure 2-25. CD ROM Drive in Place
T-15 Torx Screw
5. Replace the EMI cover, again being careful not to pinch any cables.
Chapter 2
Parts Removal and Replacement
CD ROM Drive
T-15 Torx Screw
31
