Parts Removal and Replacement
Removing and Replacing the Hard Disk Backplane Board
Replacing the Hard Disk Backplane Board

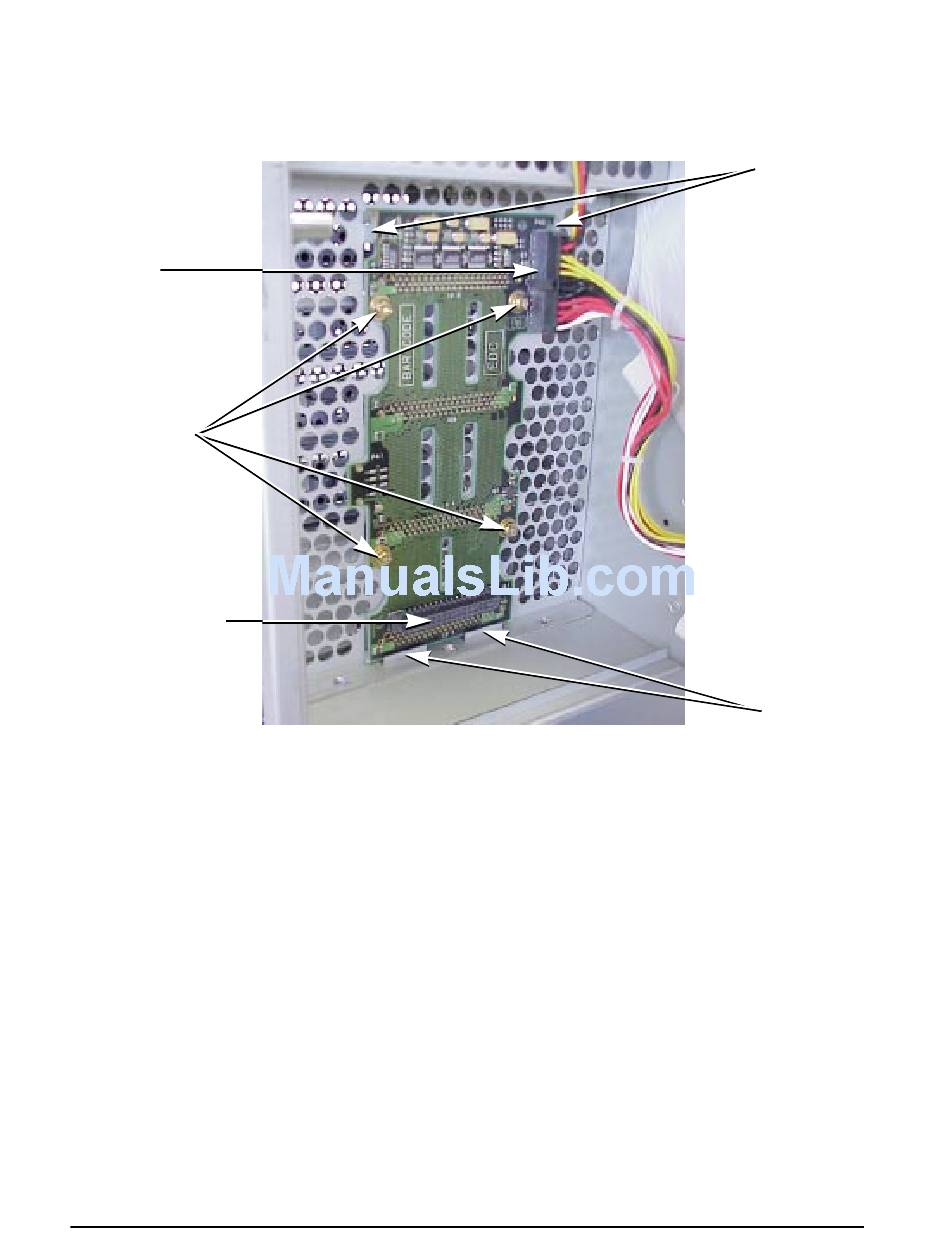

Figure 2-43. Hard Disk Backplane Board
Hard-Disk Backplane
Power Cable
T-15 Torx Screws
Hard-Disk Backplane
Data Cable Connector
1. Position the hard disk backplane board over the chassis hooks at the top and behind the
retainer tabs at the bottom, and slide downward into place.
46
Chassis Hooks
Retainer Tabs
Chapter 2
