Memory

This workstation has 16 memory slots, labeled 0A, 0B through 7A, 7B. Memory can
be configured from 32 MB to 256 MB installed in pairs of 16 MB SIMMs, 128 MB
to 768 MB (128 MB to 1 GB if you are running HP-UX 10.0), installed in pairs of 64
MB SIMMs, or memory can be cofigured in combinations of pairs of 32 MB and 128
MB SIMM pairs. Memory SIMMs must be installed in pairs of equal size, with 128
MB SIMM pairs installed first, followed by 32 MB SIMM pairs. Figure 3–9 gives the
recommended order for installing pairs of SIMMs.

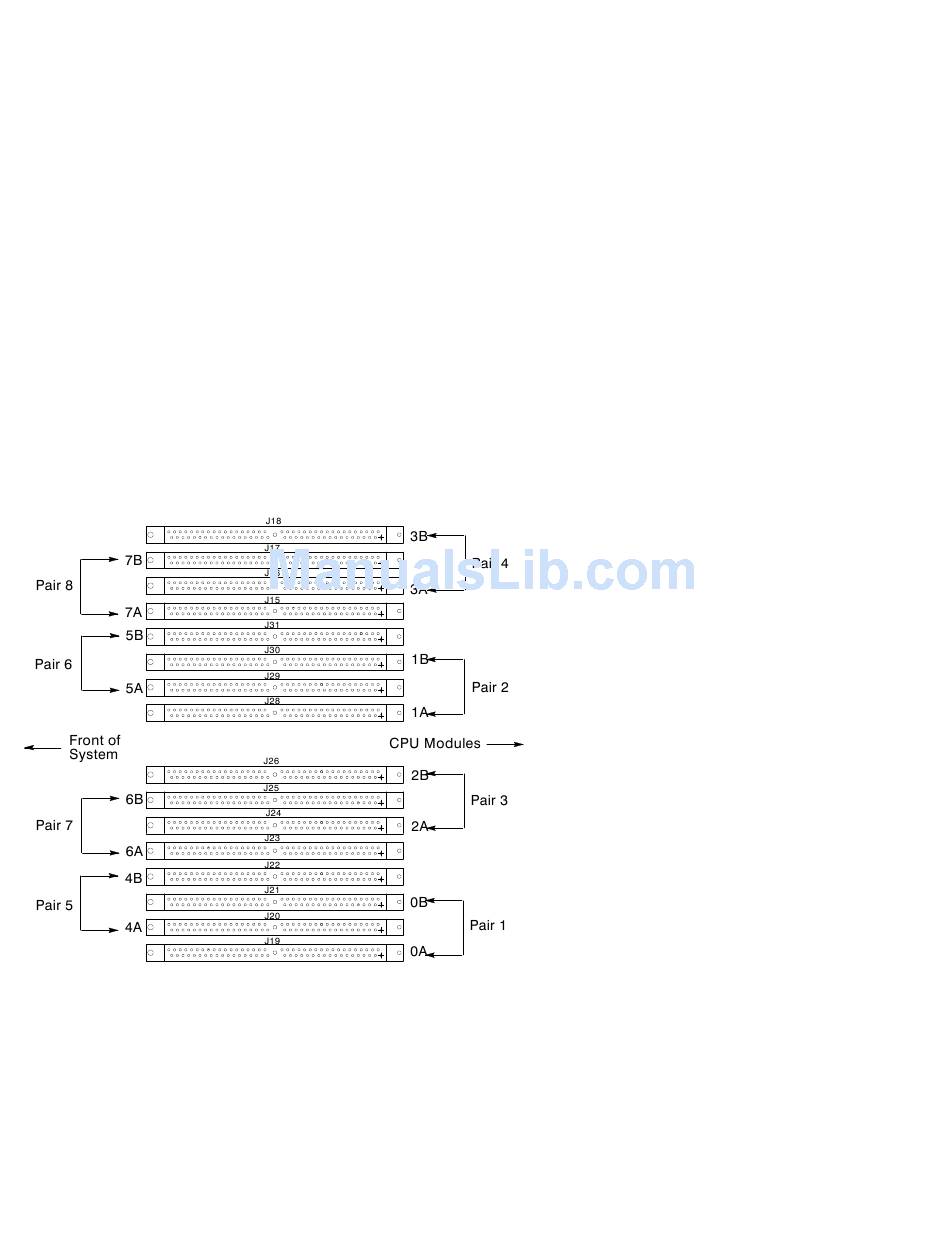

Figure 3–9. Memory Connectors
NOTICE:
Any combination of memory may be used although,
for maximum performance, the use of common-sized
memory boards is recommended; either all 32 MB or
128 MB board pairs. Therefore, users who wish to
achieve both maximum performance and maximum
future capacity are advised to use 128 MB board
pairs exclusively.
See chapter 5 of this manual for details on installing memory modules.
3–10 Configuration
