Removing The System Motherboard; System Motherboard - HP Visualize J5000 - Workstation Service Handbook

System Motherboard

To remove the system motherboard, perform the following procedures:
D
Open the system unit.
D
Remove the CPU assembly.
D
Disconnect the cables from the system motherboard.
Perform the following steps to remove and replace the system motherboard:
1. Remove the shroud cover.
2. Remove the processor module(s).
3. Remove the memory DIMMs.
4. Remove the screws securing the processor module to the support bracket.
5. Remove the screws securing the motherboard to the carrier and slide themother-
board on the keyhole posts to remove it from the carrier. See Figure 5–24 for the
Model J280 and Figure 5–25 for all other models.
Screws

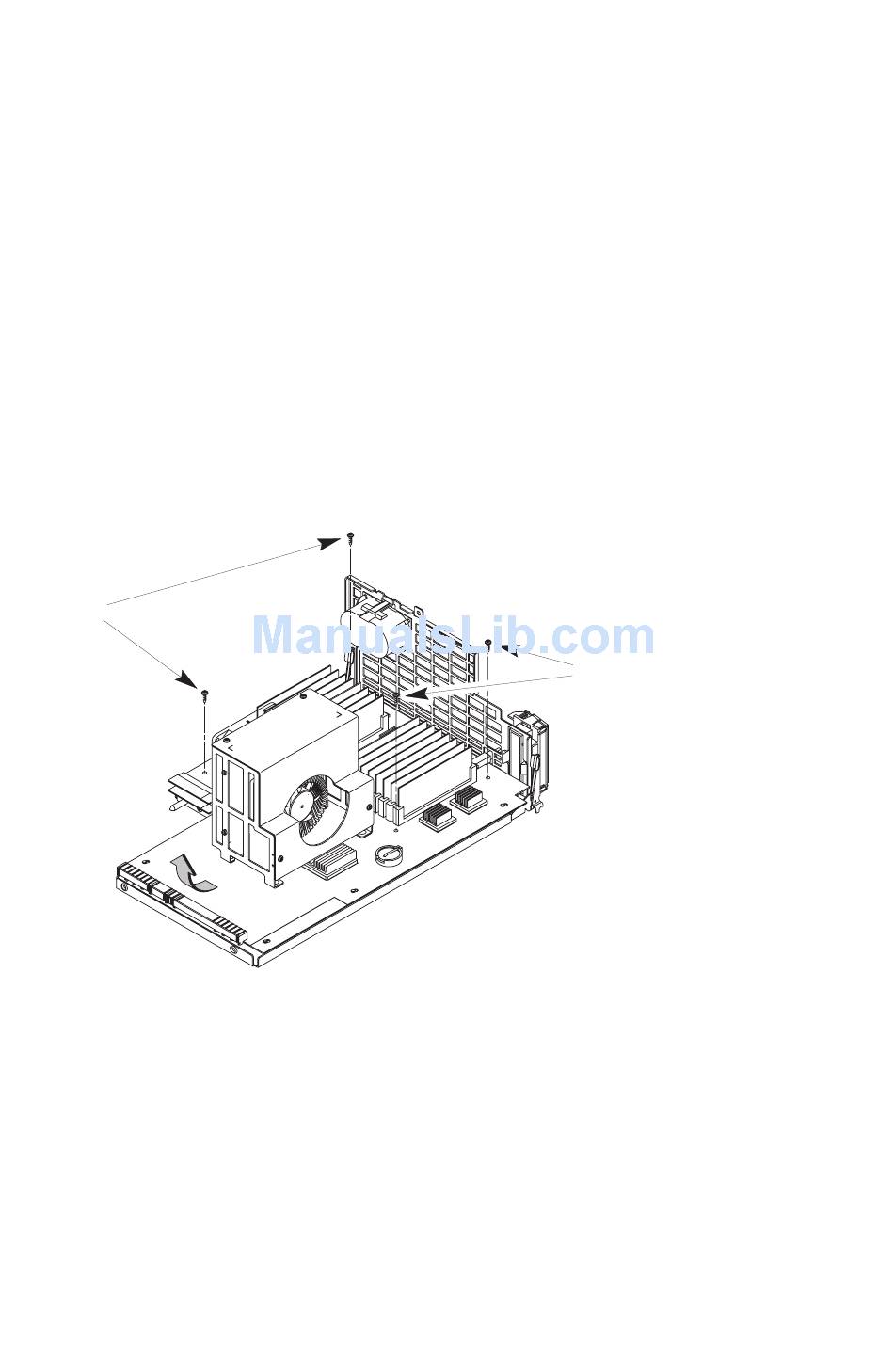

Figure 5–24. Removing the System Motherboard (J280)
Field Replaceable Units
Screws
5–29
