6. Place new board in the board guides and slide firmly into the connector. Check to
see the board is evenly inserted to seat properly. See Figure 5–37.

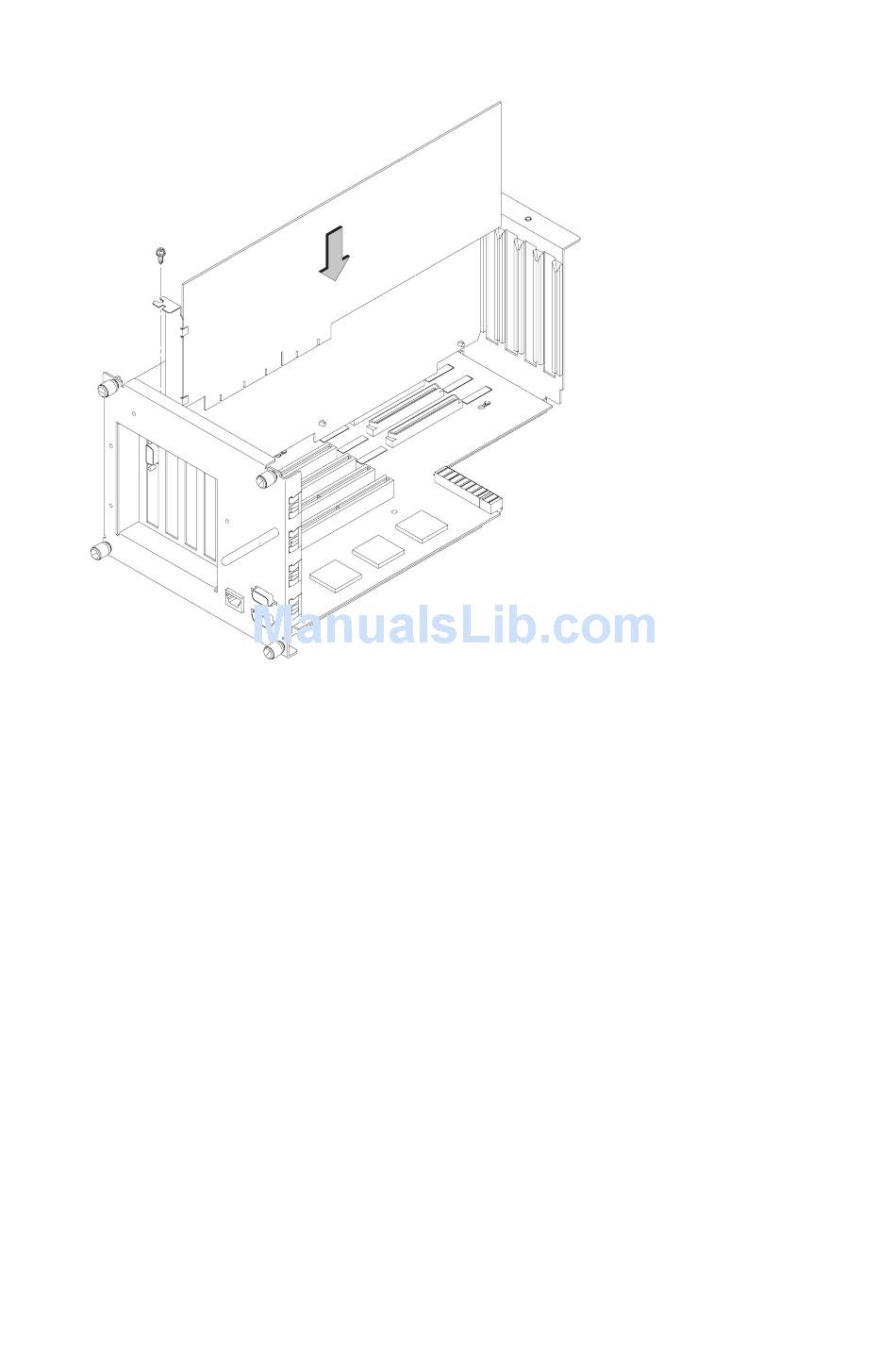

Figure 5–37. Installing an EISA or Graphics Board in the EISA
Assembly
7. Secure board with one screw in top of board connector bracket.
5–42
Field Replaceable Units
