Removable Storage Device

Before removing a storage device, open the system unit.
Perform the following steps to remove any of the removable storage devices:
1. Unscrew the two captive screws on the left side of the Storage Assembly and
pull down the drawer latch on the right side of the Storage Assembly, as shown in
Figure 5–43.
1st Captive Screw
(2nd Captive
screw
is below 1st, but
not visible in this
view)
Drawer Ejector
Handle

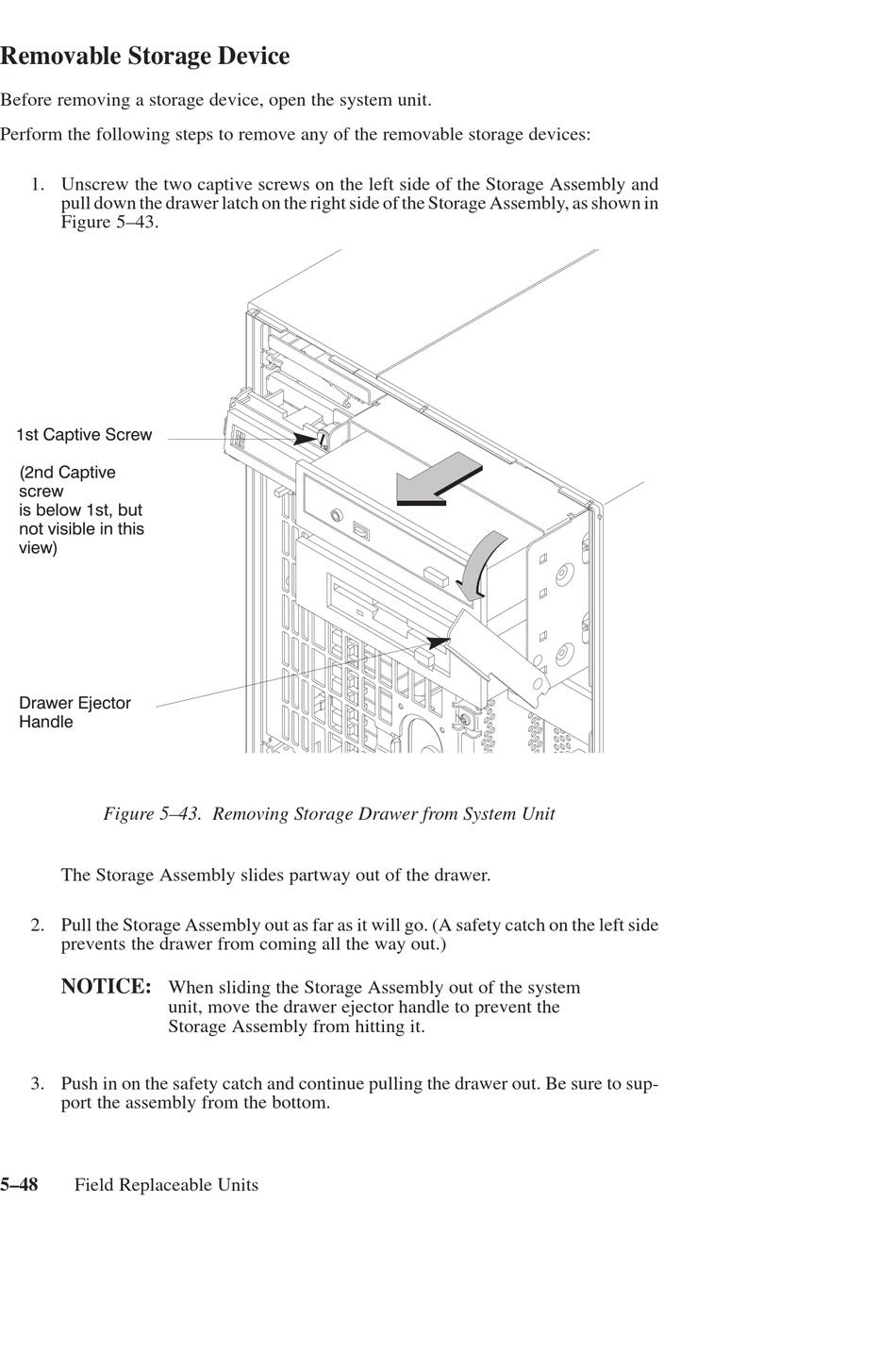

Figure 5–43. Removing Storage Drawer from System Unit
The Storage Assembly slides partway out of the drawer.
2. Pull the Storage Assembly out as far as it will go. (A safety catch on the left side
prevents the drawer from coming all the way out.)
NOTICE:
When sliding the Storage Assembly out of the system
unit, move the drawer ejector handle to prevent the
Storage Assembly from hitting it.
3. Push in on the safety catch and continue pulling the drawer out. Be sure to sup-
port the assembly from the bottom.
