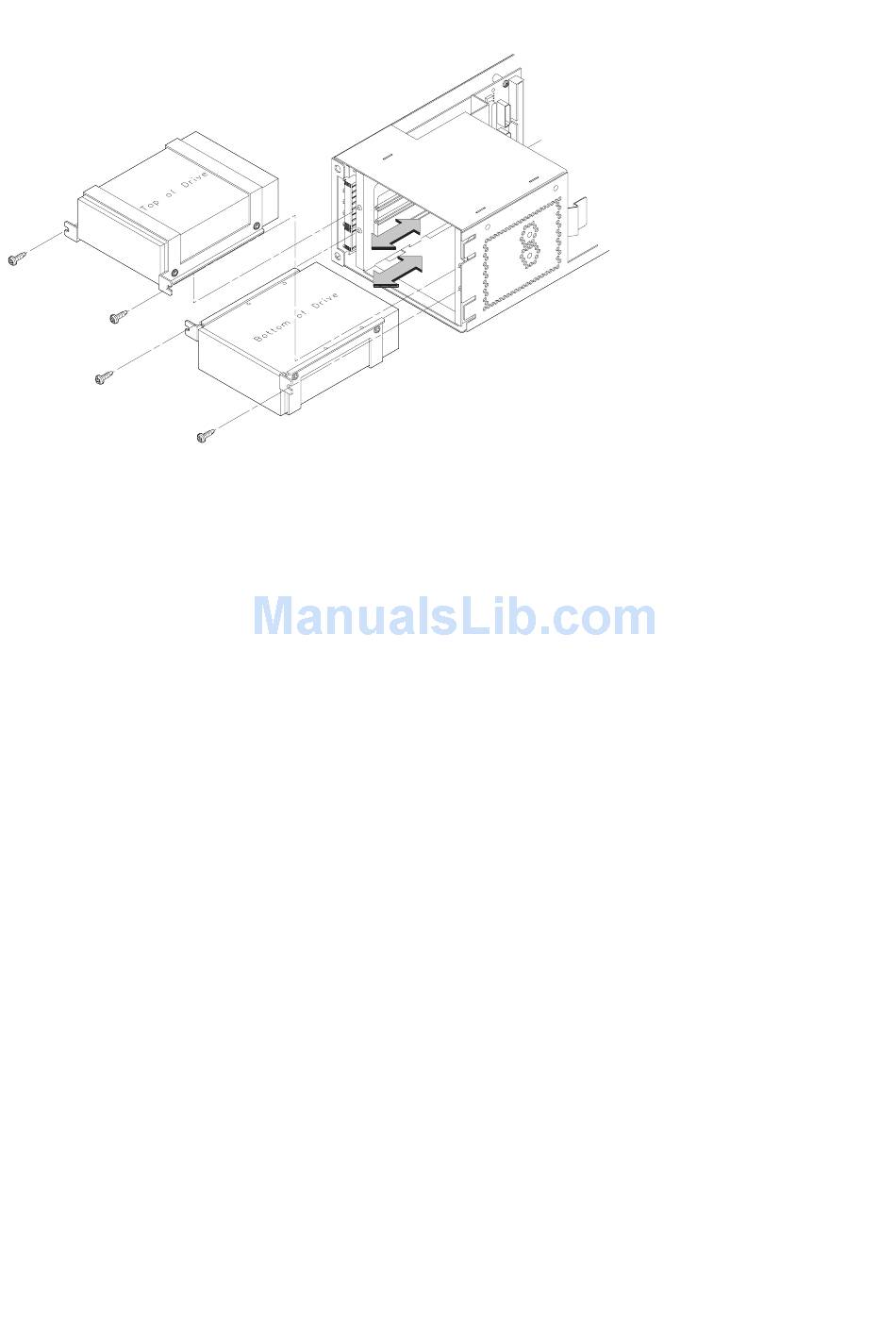

Figure 5–51. Placing Hard Drives in Storage Drawer
3. With the disk mounting bracket between the guides on each side of the Storage
Assembly, slide the disk into the Storage Assembly, securing it to the drawer
with two side screws. See Figure 5–51.
4. Connect the SCSI and power cables to the back of the drive.
5. Slide the drawer back in and secure.
5–56
Field Replaceable Units
