System Power; Power Distribution Diagram - HP Visualize J5000 - Workstation Service Handbook

Diagrams
This chapter provides functional information about the system.

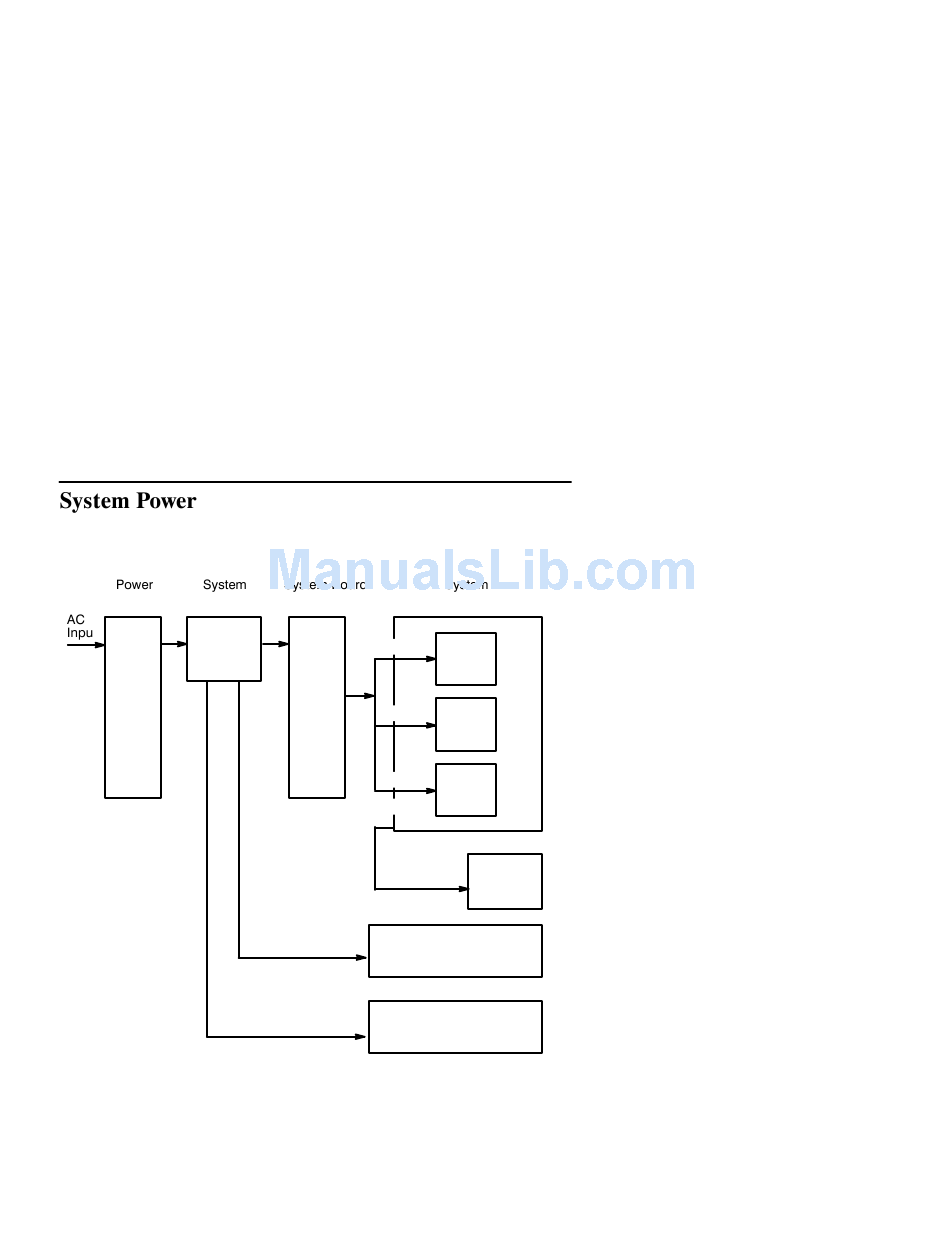

Figure 6–1 shows the system power distribution.
Supply Backplane
All
t
+12, –12
+3.3
+4.4
+5.0
Figure 6–1. Power Distribution Diagram
Connector Board
5v/4.4v/3.3v
CPU
5v
Memory
5v/12v/–12v
Logic
3.3
5v/12v/3.3v/–12v
Disk Tray
5v +12, –12
I/O PCB
5v +12, –12
