To replace the power supply assembly, follow these steps:
1. Slide the power supply assembly into the system unit as far as it will go.

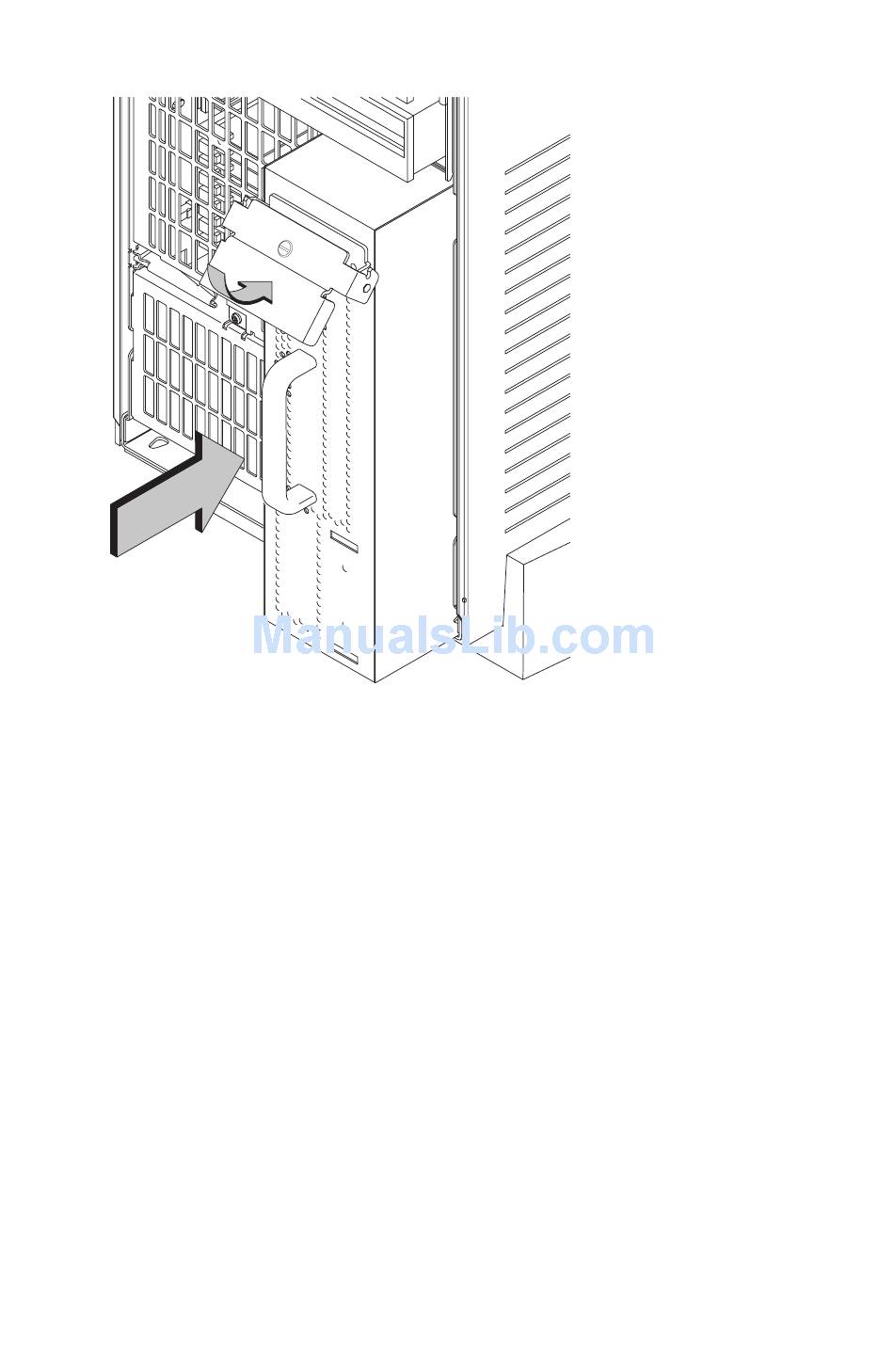

Figure 5–54. Replacing the Power Supply
2. Press down on the the power supply extractor to ensure the connections are made
and secure the extractor with the center screw. See Figure 5–54.
Field Replaceable Units
5–59
