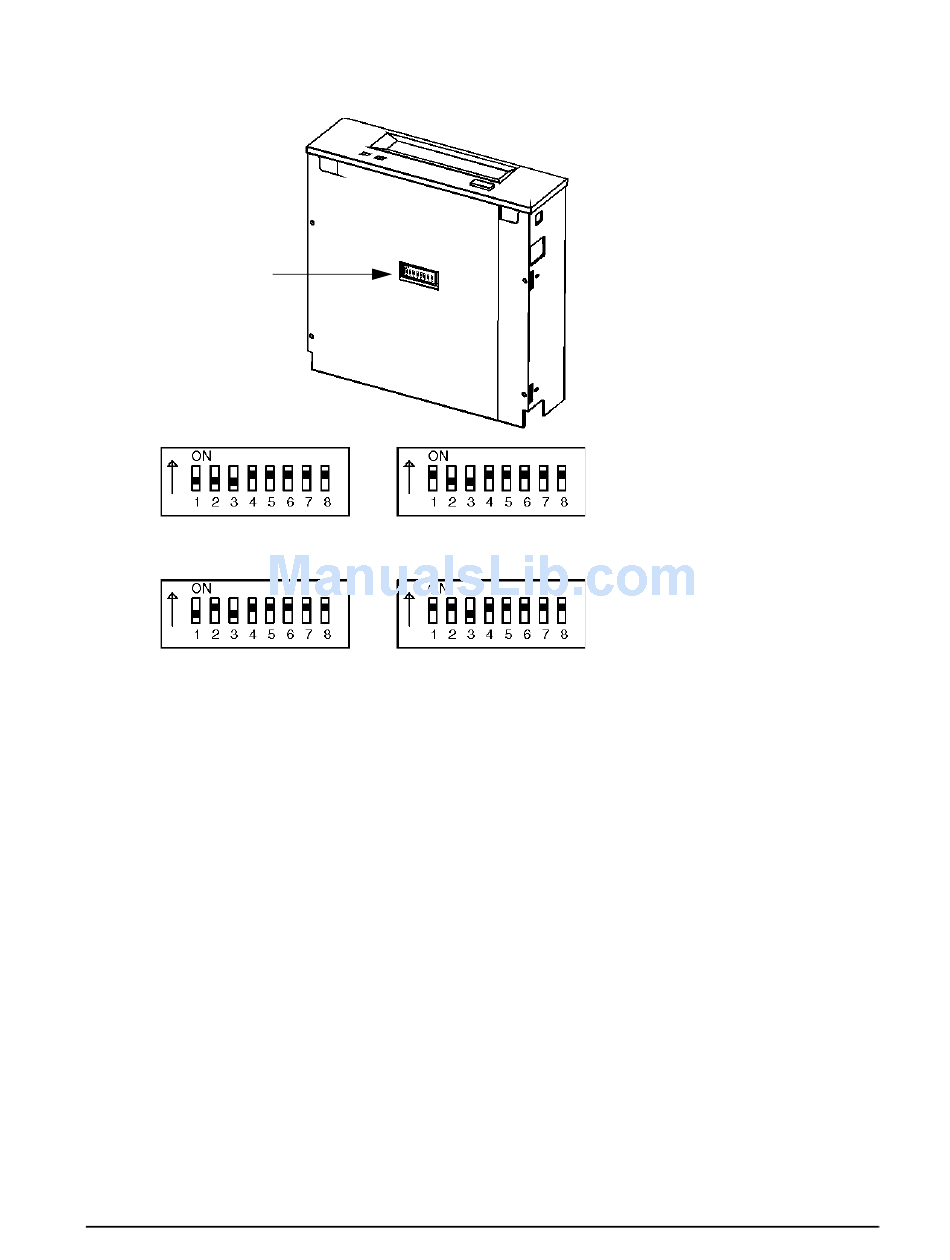

Figure 2-3. DDS-3 Tape Drive Settings for Data Compression Operation Mode

Operation Mode
Switches
Compression Disabled,
No Host Control
Compression Disabled, Host
Can Control Compression
Floppy Disk Drive (Optional) Configuration
The optional 3.5-inch floppy disk drive requires no ID, switch, or jumper settings. See the
section titled "Floppy Disk Drive (Optional)" on page 97 for details on installing a floppy
disk drive.

Memory

J5000 Memory Configuration
The J5000 workstation has eight memory slots, labeled 0 to 7. Memory DIMMs can be
installed individually in this workstation. The DIMMs for this workstation currently come
in 256 MB and 512 MB sizes (Product Numbers A4994A and A4995A, respectively). This
workstation comes with two 256 MB DIMMs as its standard configuration from the factory.
Thus, currently the minimum memory configuration for this workstation is 512 MB, and
the maximum is 4GB.
DIMMs should be loaded in the order shown in Figure 2-4, with slot 0 being the first
DIMM loaded, and 7 being the last DIMM loaded. Different sizes of DIMMs can be loaded
in this workstation (that is, 256 MB DIMMs can be loaded with 512 MB DIMMs).
Chapter 2
Field Replaceable Unit (FRU) Configurations
Compression Enabled,
No Host Control
Compression Enabled,
With Host Control
Default Setting
Configuration
37
