Field Replaceable Units (FRUs)
FRU Removal and Replacement

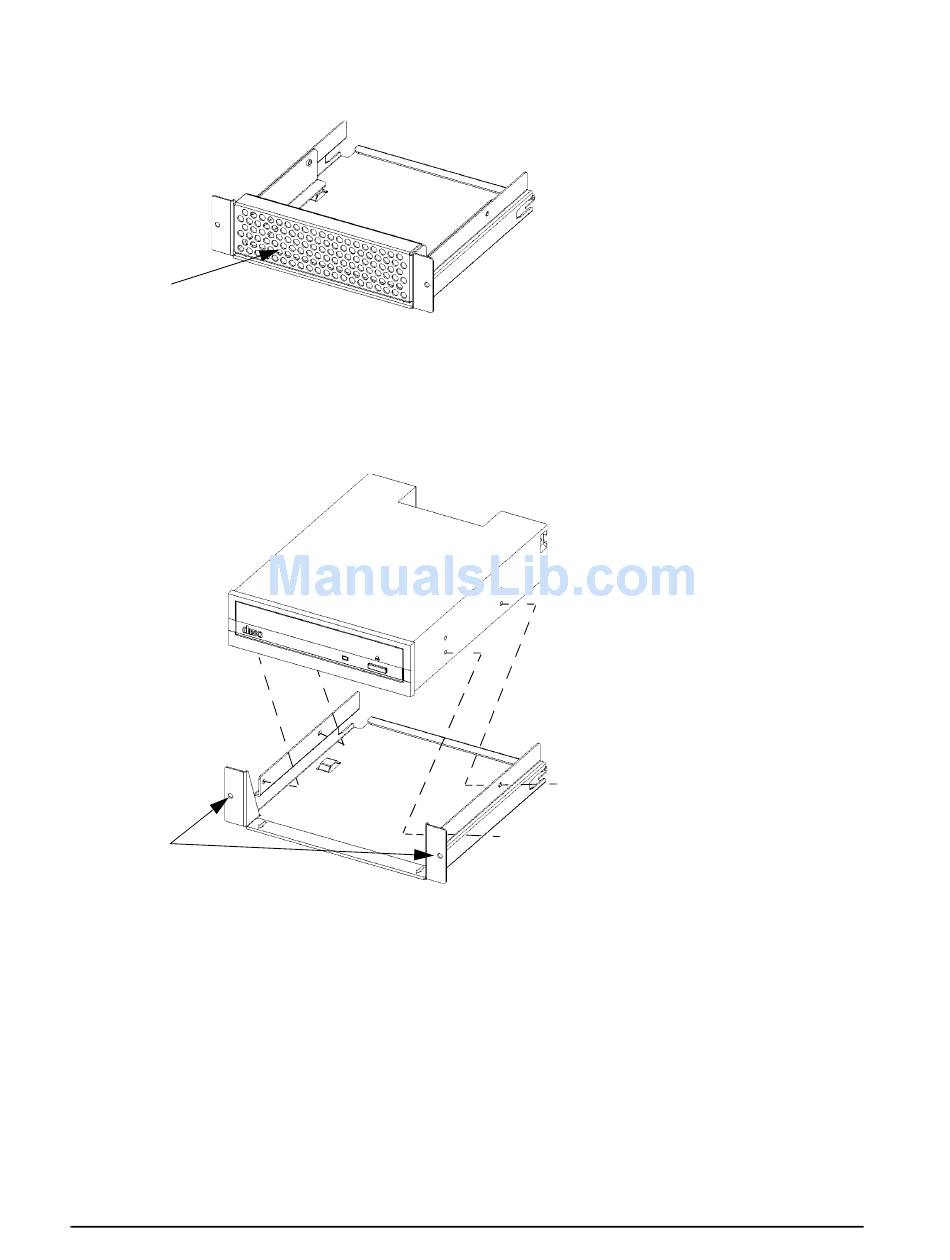

Figure 4-5. Filler Panel in the CD Drive Carrier

Filler panel
4. Insert the CD drive into the carrier as shown in Figure 4-6. Secure the CD drive in the
carrier using four T-10 Torx screws (two on each side) driven into the holes indicated by
the dashed lines in Figure 4-6.

Figure 4-6. Inserting the CD Drive into the Carrier

Screw holes
for securing
CD drive to
front panel
5. Slide the CD drive carrier assembly halfway into the CD drive bay.
6. From the top of the workstation, reach behind the CD drive and connect the audio cable,
power cable, and ATAPI interface ribbon cable to the rear of the CD drive. Carefully fold
in the cables to avoid damage during the next step.
7. From the front of the workstation, push the CD drive carrier assembly to seat flush
against the front panel, taking care not to pinch the cables.
8. Insert and tighten the two T-15 Torx screws to secure the CD drive to the front panel of
the workstation as shown in Figure 4-6 above.
9. Replace the EMI cover, the top panel, and front panel bezel.
10. After rebooting, use SAM to confirm that the CD drive is recognized by the system.
94 Chapter 4
