CAUTION The lifting ledge at the bottom, front of the workstation is strong enough to
use as a handhold when lifting the workstation. However, note that this
workstation is designated for two-person lifting; it weighs approximately 74
to 96 pounds (34 to 44 Kg), depending on the configuration. Do not attempt to
lift it by yourself, or injury may result.
As noted in Figure 1-1, the hard disk drives are located behind the right-hand door of the
front bezel. Figure 1-2 shows the workstation with the bezel door open, so that the hard
disk drives (four in this case) can be seen.

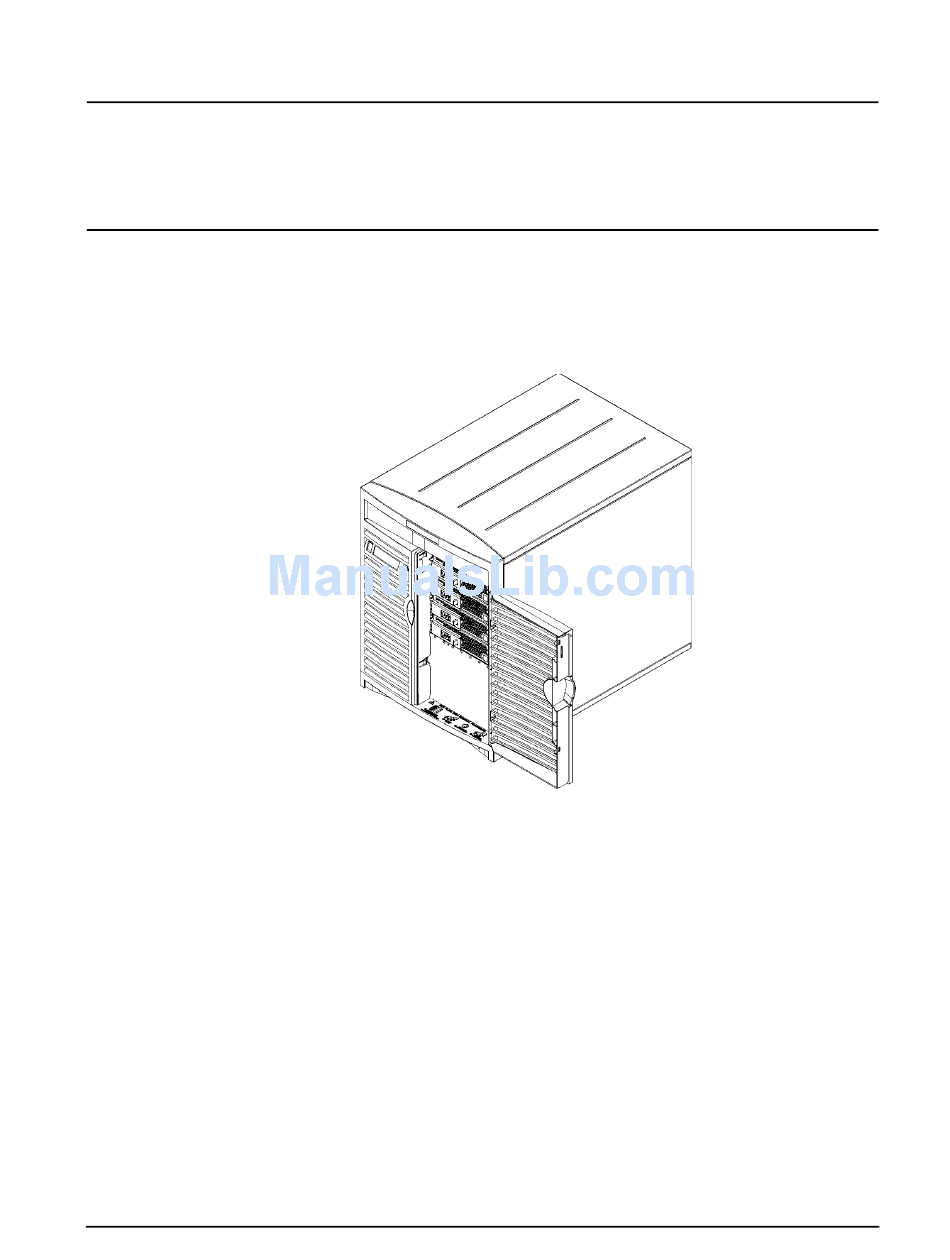

Figure 1-2. Front Panel with the Bezel Door Open

The bezel on the front of the workstation can be locked with the bezel lock for security
reasons. The front bezel must be removed in order to install or remove a DDS-3 tape drive,
a floppy disk drive, a CD drive, or the power switch/LCD assembly. Note, however, that the
front bezel does not need to be removed for installing or removing hard disk drives
the front bezel's right-hand door needs to be opened to access the hard disk drive bays.
Figure 1-3 on the next page shows the front panel of the workstation with the bezel
removed. This figure shows an empty bay on the top, left-hand side where an optional
DDS-3 tape drive or floppy disk drive can be installed. It also shows the optional CD drive
installed in the top, right-hand bay, as well as four hard disk drives installed in the hard
disk drive bays on the right-hand side of the workstation. (As noted earlier, these
workstations can support up to four hard disk drives.)
In addition, Figure 1-3 shows the location of the two bezel-detach screw holes on the
right-hand side of the front panel, as well as the three bezel hinge holes on the left-hand
side of the front panel.
