Field Replaceable Units (FRUs)
FRU Removal and Replacement
6. To remove the hard disk drive from the carrier, unscrew the four slotted pan screws
from the sides of the carrier as shown in Figure 4-3. (You can then store the screws on
top of the carrier rails as shown in Figure 4-3, if you wish.)

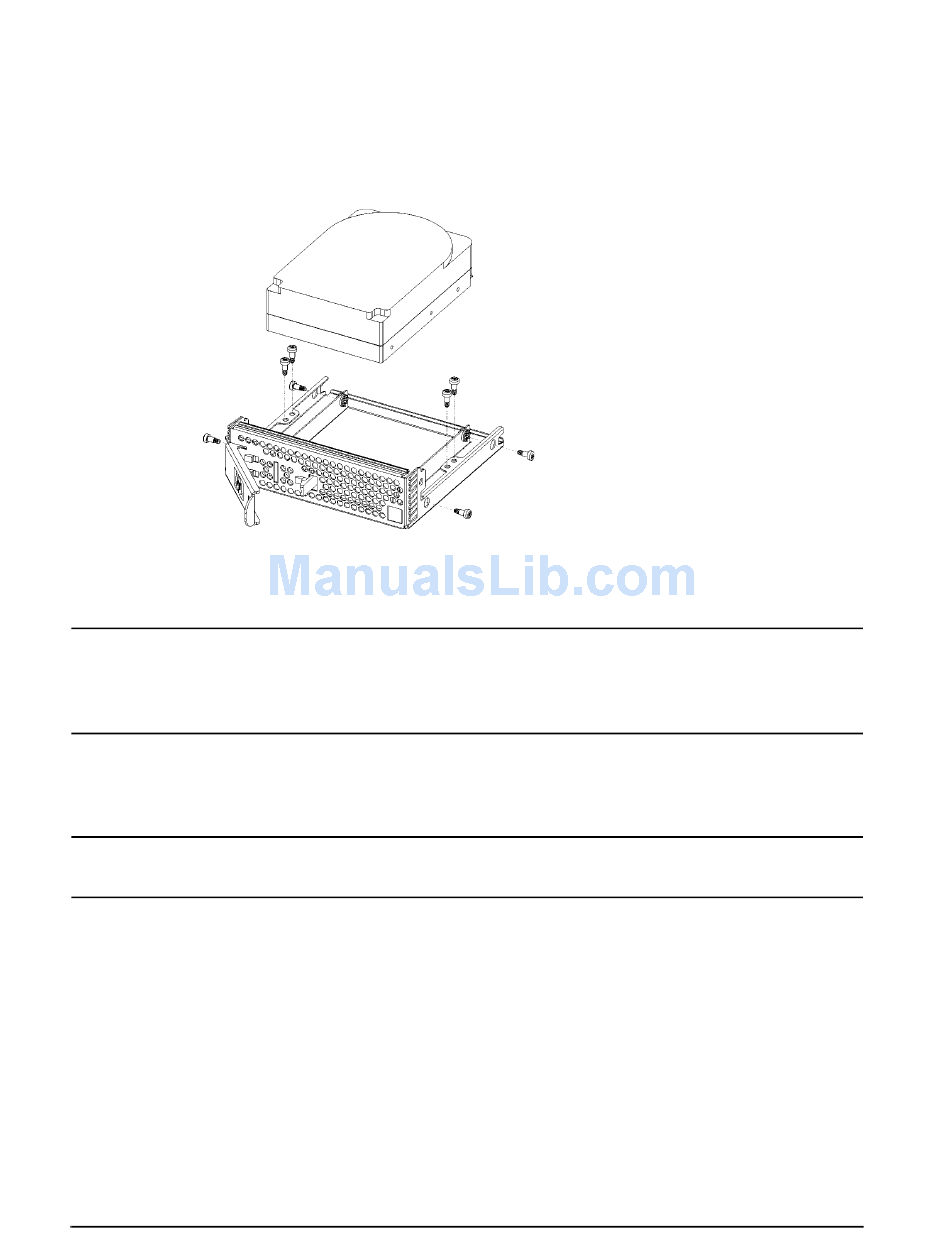

Figure 4-3. Removing the Hard Disk Drive from the Carrier

Replacing a Hard Disk Drive:
NOTE If you are installing a new hard disk drive, the slotted pan screws for
attaching the drive in the carrier are stored on the carrier rails. Also see the
section titled "Hard Disk Drive Configuration" on page 34 for information
about configuring a hard disk drive for installation.
1. Open the right door of the bezel on the workstation's front panel.
2. Perform the previous removal procedure in reverse order.
NOTE To verify a good connection with the SCA hard disk interface (backplane
board) connector, press firmly on the outside corners of the carrier.
92 Chapter 4
