Configuration
Field Replaceable Unit (FRU) Configurations

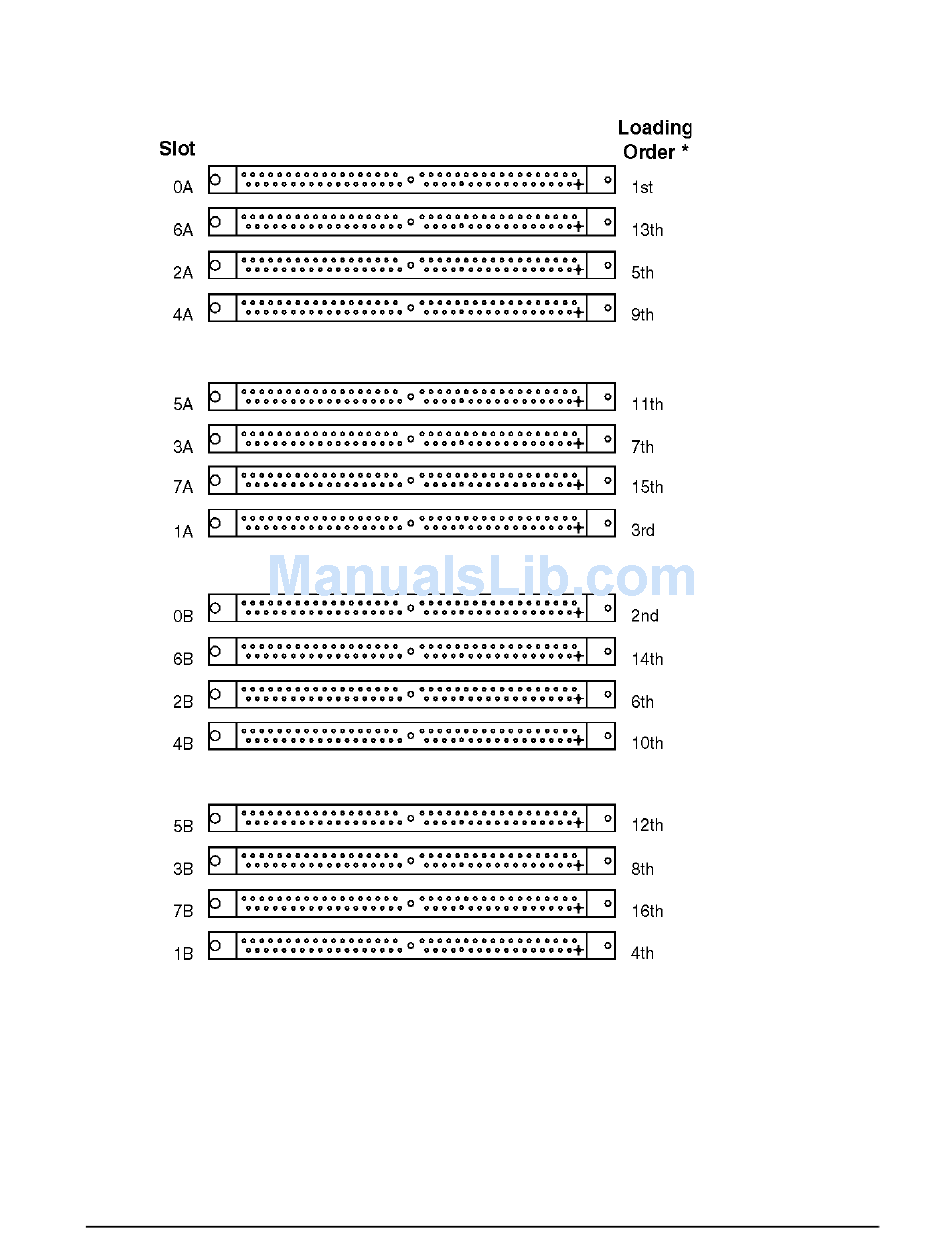

Figure 2-5. Memory Loading Order in the J7000

* J7000 memory must be installed in pairs, and both DIMMs in the pair must be of equal size.
Chapter 2 39
