Field Replaceable Units (FRUs)
FRU Removal and Replacement
3. Insert the floppy disk drive into the carrier and secure the drive in the carrier using
four of the T-10 Torx screws (two on each side).
4. Install the smaller of the two filler panels on top of the floppy disk drive as shown in
Figure 4-10. Secure the filler panel with the two remaining T-10 Torx screws.

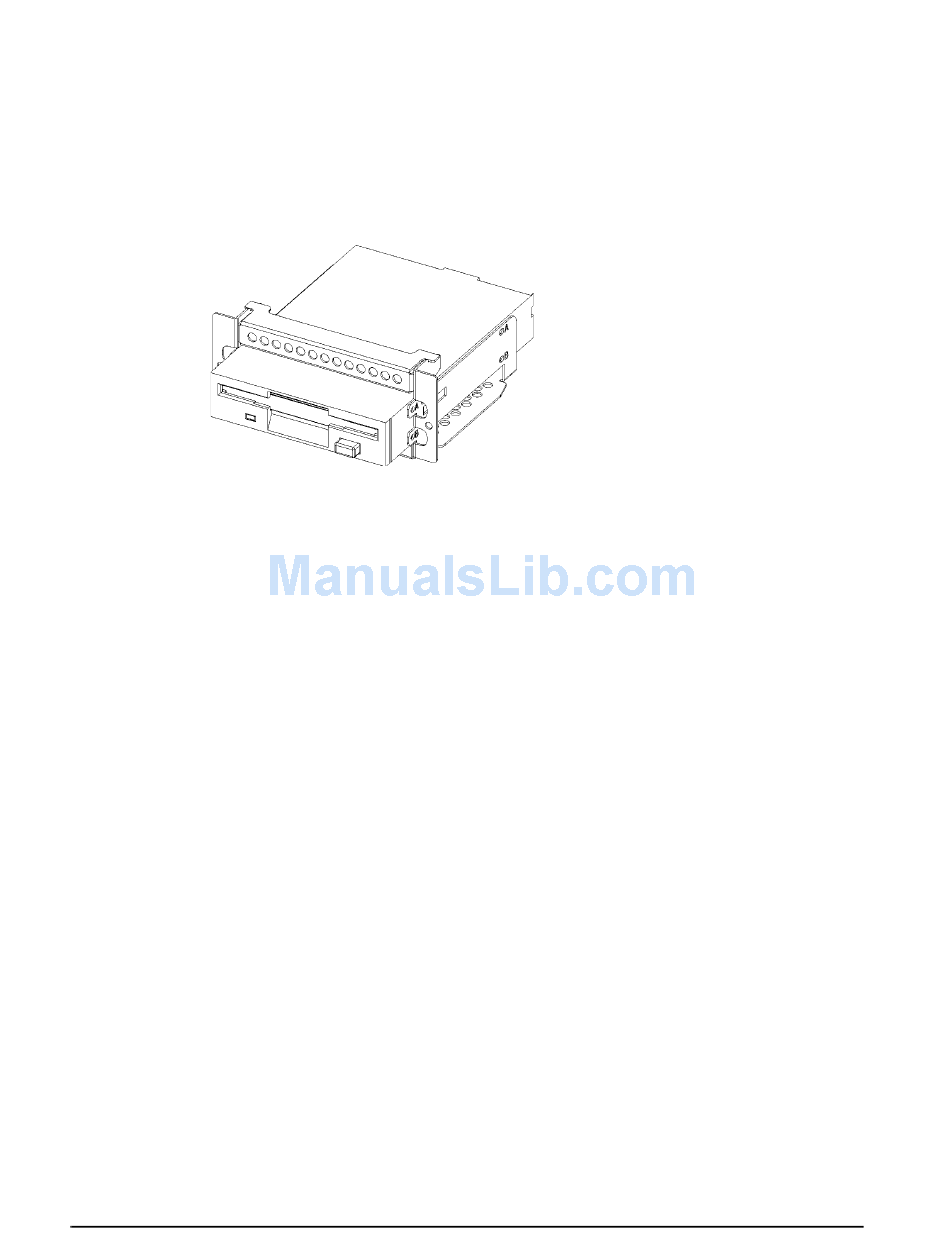

Figure 4-10. Floppy Disk Drive and Filler Panel Installed in the Carrier

5. Connect the power and ribbon cables in the drive bay to the rear of the floppy disk drive.
6. Push the DDS-3 tape/floppy disk drive carrier assembly into the drive bay, taking care
not to pinch the cables. Seat the carrier assembly flush against the front panel.
7. Insert and tighten the two T-15 Torx screws to secure the floppy disk drive to the front
panel of the workstation.
8. Replace the front panel bezel.
9. After rebooting, use SAM to confirm that the floppy disk drive is recognized by the
system.
98 Chapter 4
