Figure 2-4. Memory Loading Order In The J5000 - HP Visualize J5000 - Workstation Handbook

Configuration
Field Replaceable Unit (FRU) Configurations
See the section titled "Memory DIMMs" on page 99 for details on installing memory. Also
note that there is a label on the floor of the workstation's interior showing the J5000's
memory loading order.

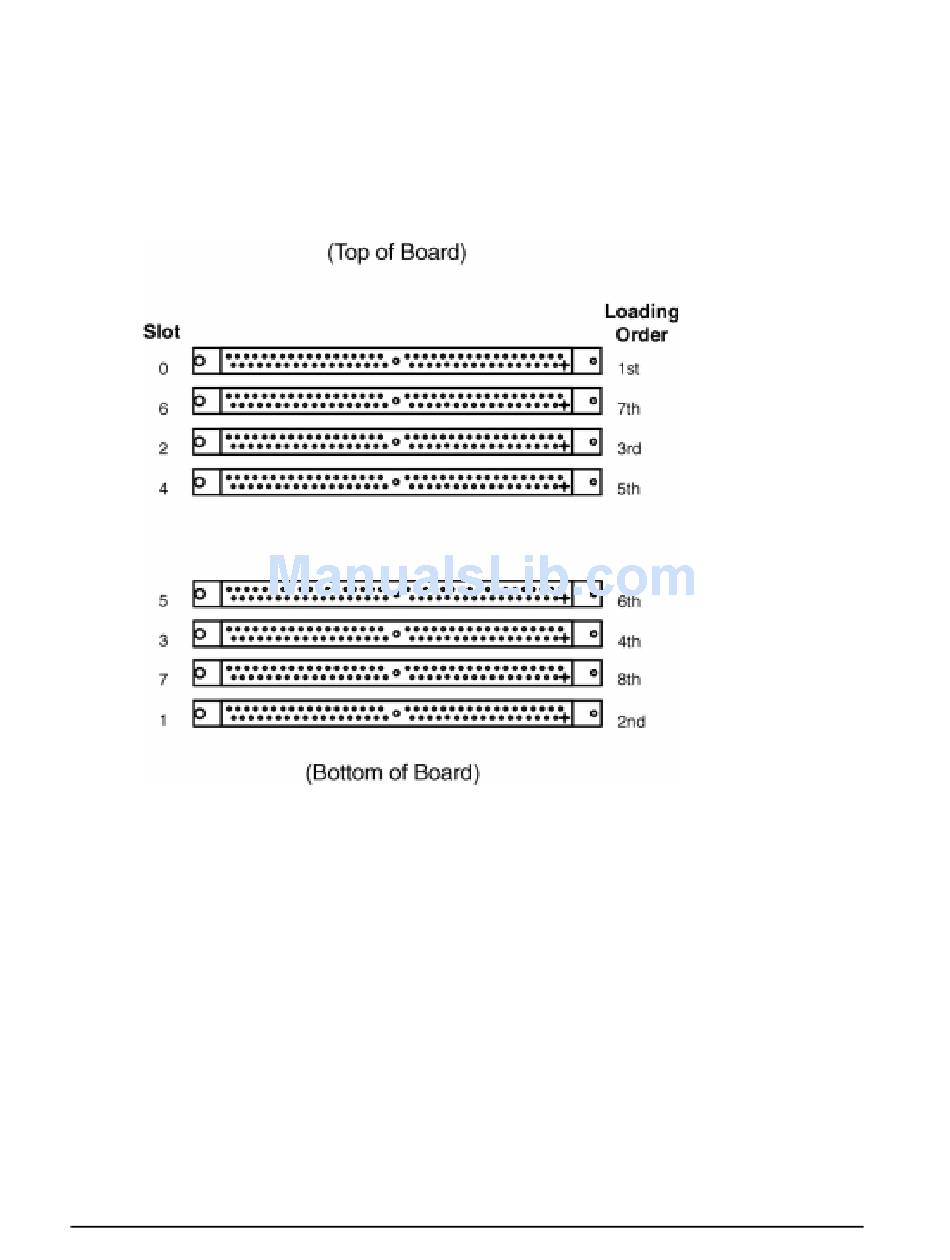

Figure 2-4. Memory Loading Order in the J5000

J7000 Memory Configuration
The J7000 workstation has sixteen memory slots, labeled 0A, 0B to 7A, 7B. Memory
DIMMs must be installed in pairs in this workstation, and both DIMMs in each pair must
be of equal size. The DIMMs for this workstation currently come in 256 MB and 512 MB
sizes (Product Numbers A4994A and A4995A, respectively). Thus, currently the minimum
memory configuration for this workstation is 512 MB, and the maximum is 8 GB.
DIMMs should be loaded in the order shown in Figure 2-5, with 0A, 0B being the first pair
of DIMMs loaded, and 7A, 7B being the last pair loaded.
See the section titled "Memory DIMMs" on page 99 for details on installing memory. Also
note that there is a label on the floor of the workstation's interior showing the J7000's
memory loading order.
