Front Panel Components

• I/O Expansion Capabilities: 64-bit PCI (Peripheral Connect Interface) slots
— Five PCI-2X slots at 5V, 33 MHz
— Two PCI-4X slots at 3.3V, 66 MHz
— One slot for power only
• Graphics Cards Supported:
— HP V -EG – up to four
ISUALIZE
— HP V -FX
ISUALIZE
— HP V -FX
ISUALIZE
• Monitors Supported:
— 19-inch VGA 1600 1200 color monitor
— 21-inch VGA 1600 1200 color monitor
• Standard Keyboard and Mouse: USB (Universal Serial Bus) Series A
Front Panel Components
This section describes the components that are located on the front panel of the J5000 and
J7000 workstations.
Figure 1-1 shows the front panel components with the bezel attached.

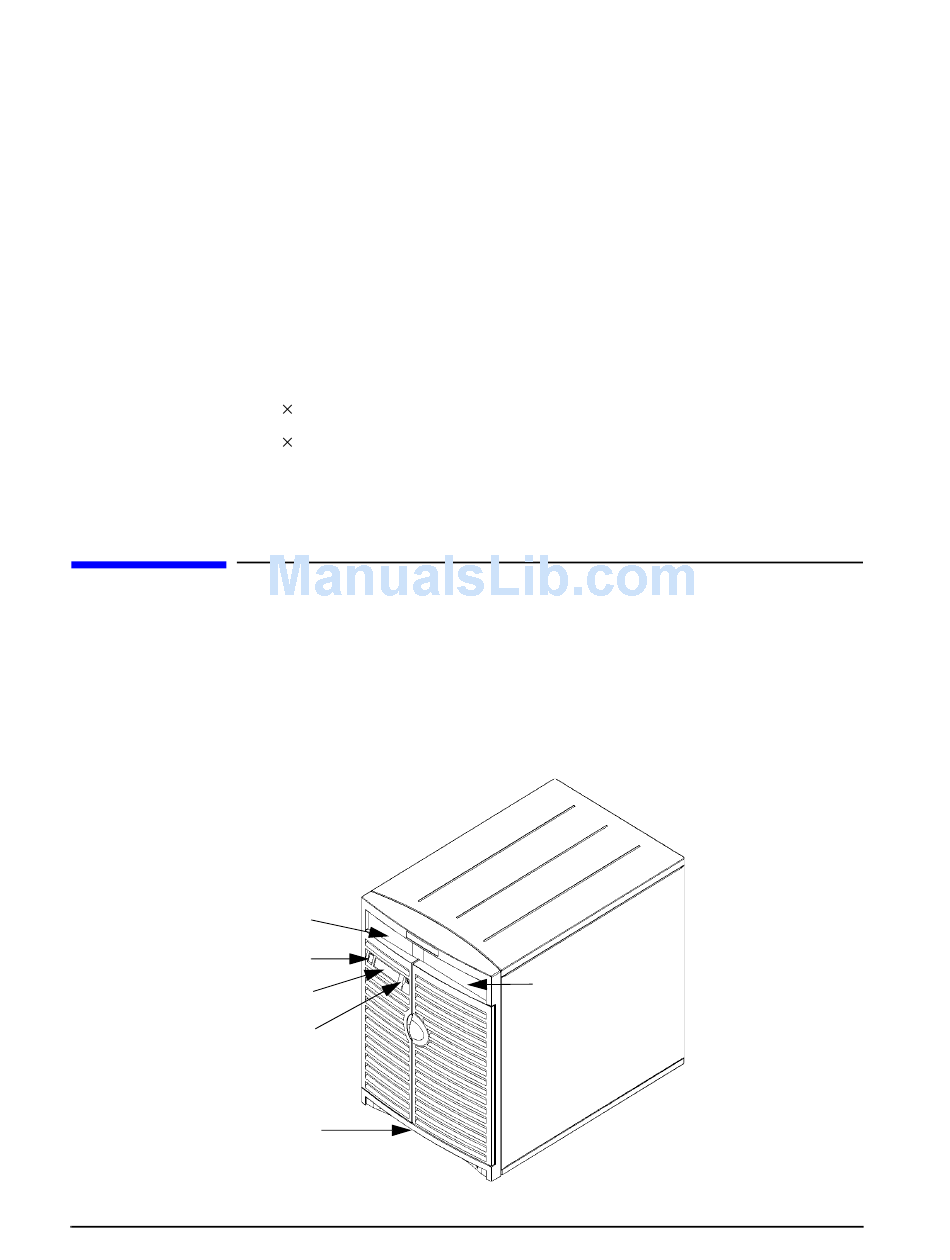

Figure 1-1. Components on the Front Panel with the Bezel Attached

Bay for either one
DDS-3 tape drive
or floppy disk drive
Power switch
System LCD
Bezel lock
Lifting ledge
14
2
– up to two
6
– up to three
Bay for one
CD drive
}
Hard disk drive(s)
(behind bezel's
right-hand door)
