Replacing the Power Supply Interface Module

1. Place the PSI module into the chassis by sliding the module retaining tab into the socket on
the hard drive bay wall. See

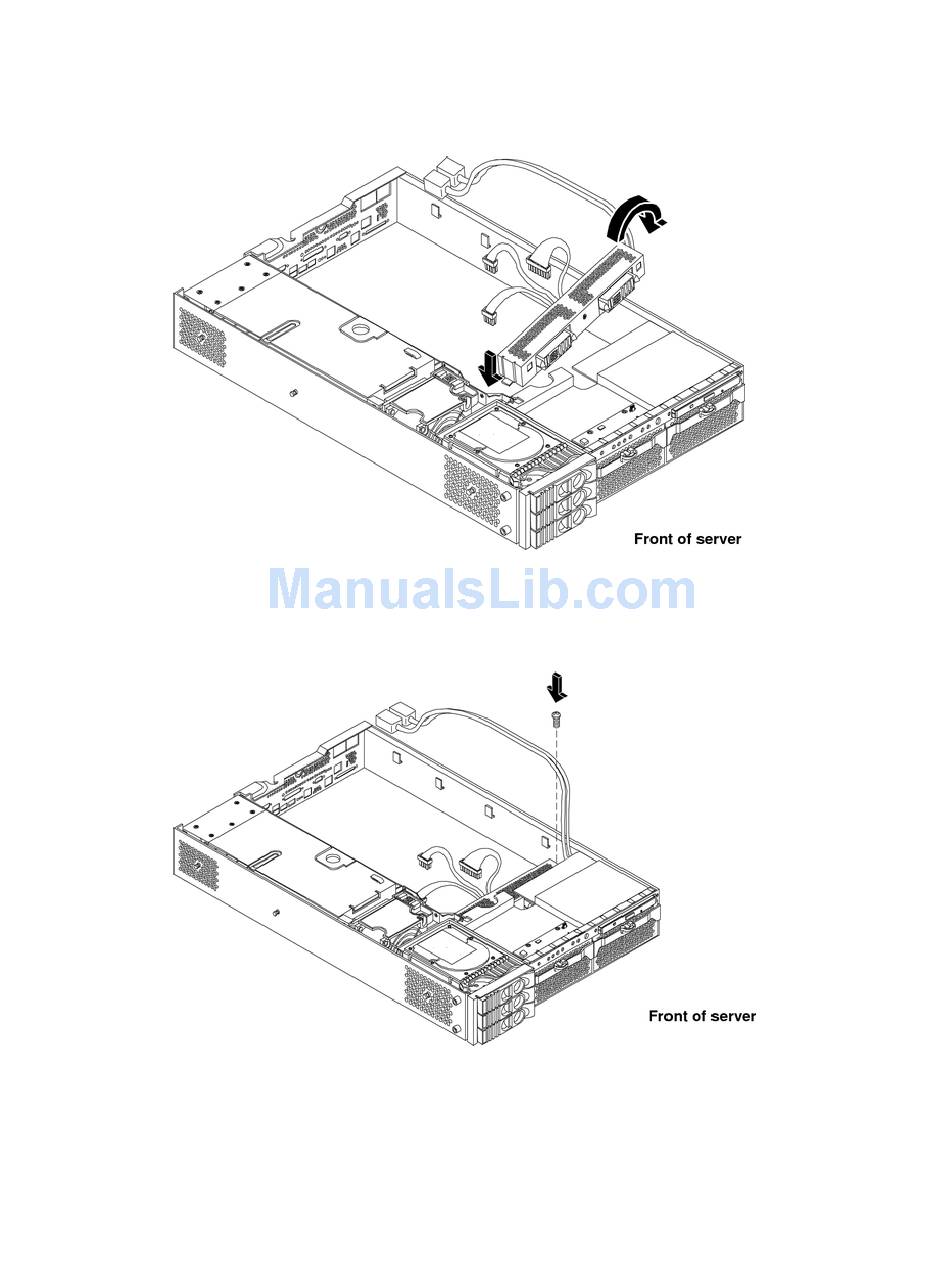

Figure 4-61 Replacing the Power Supply Interface Module
2. Install the PSI module mounting screw and secure the power cables behind the holding
clips. See
Figure 4-62 Securing the Power Supply Interface Module and Cables
3. Replace the system board.
4. Replace the power supply (or supplies).
5. Replace the top metal cover, and reconnect all of the power and external cables.
6. Verify the PSI replacement by using the utilities identified in
verify operation, use the iLO MP commands.
Figure
Figure 4-62.
4-61.
Removing and Replacing Internal Components
Appendix C (page 141). To
89
