HP Integrity rx2620 Server User Service
Guide
HP Part Number: AD1 17-9003A-ed3
Published: February 2010
Edition: 3

Advertisement

Table of Contents
loading

Related Manuals for HP Rx2620-2 - Integrity - 0 MB RAM

Summary of Contents for HP Rx2620-2 - Integrity - 0 MB RAM

  • Page 1 HP Integrity rx2620 Server User Service Guide HP Part Number: AD1 17-9003A-ed3 Published: February 2010 Edition: 3...
  • Page 2 Legal Notices Copyright Notices. © Copyright 2006-2010 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services.

  • Page 3: Table Of Contents

    Table of Contents About This Document.......................15 Intended Audience..........................15 New and Changed Information in This Edition...................15 Publishing History..........................15 HP-UX Release Name and Release Identifier..................15 Document Organization........................16 Typographic Conventions........................16 Related Documents..........................17 Contacting HP............................17 Before You Contact HP........................17 HP Contact Information........................18 Subscription Service........................18 Documentation Feedback........................18 1 Introduction........................19 Server Overview...........................19...
  • Page 4 Hot-Plug Disk Drive Indicators.......................30 Power Supply LEDs........................31 Optional Removable Media Drive.....................31 Rear Panel.............................32 LAN Gb A Connector........................33 LAN Gb B Connector........................33 Management Processor LAN LEDs....................34 3 Powering Off and Powering On the Server...............37 Power States............................37 Powering Off the Server........................37 Powering Off the Server Using iLO....................37 Powering Off the Server Manually....................37 Powering On the Server........................38 Powering On the Server Using iLO....................38...
  • Page 5 Installing DIMMs........................59 Removing and Replacing a Processor.....................61 Removing a Processor........................63 Replacing a Processor.........................65 Removing and Replacing the System Battery.................69 Battery Notice..........................69 Removing the System Battery....................69 Replacing the System Battery.....................70 Removing and Replacing PCI Card Cage..................71 Removing the PCI Card Cage....................71 Replacing the PCI Card Cage.....................72 Removing and Replacing PCI Cards....................73 Removing a PCI Card.........................73...
  • Page 6 System Event Logs........................101 Systems Without an iLO Management Processor..............103 Diagnostic LEDs........................103 Warnings...........................104 Faults............................106 Command Line Interface........................108 Command Line Interface Menu.....................108 Troubleshooting Example Using CLI....................108 Troubleshooting Example Using CLI....................109 System Board Diagnostic LEDs......................109 LAN LEDs............................110 Front Panel LAN LEDs........................110 Rear Panel LAN LEDs........................110 LAN A Connector LEDs......................110 LAN B Connector LEDs......................110 Optional Management Processor LAN LEDs................111...
  • Page 7 Booting HP OpenVMS........................132 Booting HP OpenVMS (EFI Boot Manager)................132 Booting HP OpenVMS (EFI Shell)....................132 Shutting Down HP OpenVMS.......................133 Booting and Shutting Down Microsoft Windows................134 Adding Microsoft Windows to the Boot Options List..............134 Booting the Microsoft Windows Operating System..............135 Shutting Down Microsoft Windows....................136 Windows Shutdown from the Command Line................137 Booting and Shutting Down Linux.....................137 Adding Linux to the Boot Options List..................137...
  • Page 8 Parameters..........................153 lanaddress............................159 Syntax:............................159 Parameters..........................159 monarch............................160 Syntax............................160 Parameters..........................160 Operation..........................160 pdt..............................160 Syntax............................160 Parameters..........................160 Operation..........................161 sysmode............................161 Syntax............................161 Parameters..........................161 Operation..........................161 Specifying SCSI Parameters........................162 Using the SCSI Setup Utility......................162 Using the Boot Option Maintenance Menu..................167 Paths...............................167 Boot From File..........................167 Add a Boot Option........................168 Edit Boot Entry.........................168 Delete Boot Options........................168 Change Boot Order........................169 Manage BootNext Setting......................169...
  • Page 9 List of Figures HP Integrity rx2620 Server (front view)..................19 HP Integrity rx2620 Server (front view with bezel removed)............19 HP Integrity rx2620 Server (rear view)..................19 System Block Diagram........................22 Memory Block Diagram........................24 Front View.............................29 Control Panel..........................29 Hot-Plug Disk Drive LED Indicators....................30 Power Supply LEDs........................31 DVD LEDs.............................31 Rear View............................32 10/100/1000 base-T Ethernet Gb LAN A Connector LEDs............33...
  • Page 10 4-39 Removing the PCI Cage........................71 4-40 Removing the PCI Cage Cover......................72 4-41 Installing a PCI Slot Cover ......................74 4-42 Installing a PCI Card........................74 4-43 Removing the PCI Backplane......................75 4-44 Replacing the PCI Backplane......................76 4-45 Removing and Replacing Removable Media Drive..............77 4-46 Removing the MP Card.........................78 4-47...
  • Page 11 List of Tables Publishing History Details......................15 HP-UX 11i Releases........................15 Server Dimensions.........................20 Memory Array Capacities......................24 Data Pathing..........................27 Control Panel LEDs and Switches....................29 Power On/Off Button........................30 Hard Drive LED Definitions......................31 Power Supply LED Definitions.....................31 DVD Drive LED Definitions......................31 Rear Panel Connectors and Switches....................32 10/100/1000 base-T Ethernet Gb LAN A Connector LEDs............33 10/100/1000 base-T Ethernet Gb LAN B Connector LEDs.............34 iLO MP LAN LEDs........................34...
  • Page 12 Console Input Devices.........................171 List of Tables...
  • Page 13 List of Examples help Command..........................145 help bch Command........................145 help configuration Command....................145 help cpuconfig Command....................146 help ioconfig Command.......................147 boottest Command........................149 boottest early_cpu off Command...................149 cpuconfig Command.......................150 ioconfig Command........................151 C-10 conconfig Command.......................152 C-11 conconfig 2 primary Command..................152 C-12 conconfig 3 off Command....................152 C-13 conconfig 3 on Command....................152 C-14...

  • Page 15: About This Document

    About This Document This document provides information and instructions on servicing and troubleshooting the HP Integrity rx2620 server. The document publication date and part number indicate the document’s current edition. The date changes when a new edition is published. The document part number changes when extensive changes are made.

  • Page 16: Document Organization

    Document Organization This guide is divided into the following chapters. Chapter 1 Introduction Use this chapter to learn about the features and specifications of the HP Integrity rx2620 server. Chapter 2 Controls, Ports, and LEDs Use this chapter to learn about the locations of the external controls, ports, and LEDs on the server.

  • Page 17: Related Documents

    Separates items in a list of choices. WARNING A warning calls attention to important information that if not understood or followed will result in personal injury or nonrecoverable system problems. CAUTION A caution calls attention to important information that if not understood or followed will result in data loss, data corruption, or damage to hardware or software.

  • Page 18: Hp Contact Information

    HP Contact Information For the name of the nearest HP authorized reseller: • In the United States, see the HP US service locator webpage (http://welcome.hp.com/country/ us/en/wwcontact.html.) • In other locations, see the Contact HP worldwide (in English) webpage: http://welcome.hp.com/country/us/en/wwcontact.html. For HP technical support: •...

  • Page 19: Introduction

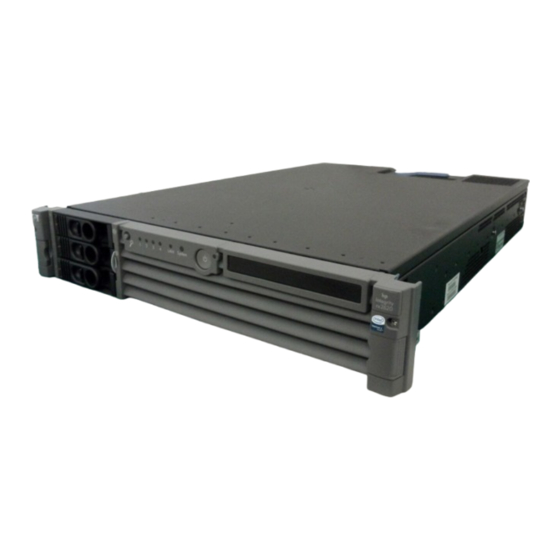

    1 Introduction The HP Integrity rx2620 server is a 2-socket server based on the Itanium® processor architecture. The server supports the following operating systems: Microsoft Windows®, HP-UX, Linux, and OpenVMS®. The server is available in either rack-mount or pedestal configurations. The server accommodates up to 12 DIMMs and internal peripherals including disks and a DVD.

  • Page 20: Server Components

    Table 1-1 Server Dimensions Dimensions Value Rack units Height 8.6 cm (3.4 in.) Width 48.3 cm (19.0 in.) Depth 67.9 cm (26.8 in.) Weight 17.5 kg (38.6 lb.) • Minimum 22.2 kg (49.0 lb.) • Maximum Server Components The server consists of the following components: Processor •...

  • Page 21: Power Supply Unit

    Power Supply Unit • 600 W output power • Front-end block (the actual power supply case) that converts the line voltage into a high DC voltage. Back-end voltage regulation modules (on the system board) that step down the front-end DC voltage to the required voltages •...

  • Page 22: Processor Sockets

    Figure 1-4 System Block Diagram The following describes the main components of the system board: • “Processor Sockets” (page 22) • “Processor Bus” (page 23) • “ZX1 I/O and Memory Controller” (page 23) • “Memory” (page 23) • “I/O Bus Interface” (page 25) •...

  • Page 23: Processor Bus

    The front side bus (FSB) is the IA64 processor bus, based on bus protocol from Intel. Unlike previous PA-RISC microprocessors that utilized HP proprietary processor buses, this processor is designed to utilize the FSB. This allows processor field replaceable units (FRUs) to be dropped in, provided that electrical and mechanical compatibility and support circuitry exist.

  • Page 24: Memory Architecture

    Figure 1-5 Memory Block Diagram Memory Architecture The I/O ASIC memory interface supports two DDR cells. Each cell is 144 data bits wide. The memory subsystem physical design uses a comb-filter termination scheme for the data and the address and control buses. This topology is similar to other DDR designs. Clocks are distributed directly from the I/O ASIC.

  • Page 25: Chip Spare Functionality

    Table 1-2 Memory Array Capacities (continued) Mininum/Maximum Memory Size Single DIMM Size DDR SDRAM Count, Type, and Technology 8 GB / 24 GB 2048 MB DIMM 36 x 128 MB x 4 DDR1 SDRAMs (512 MB) 32 GB / 32 GB 4096 MB DIMM 36 x 256 MB x 4 DDR1 SDRAMs (1024 MB) Chip Spare Functionality...

  • Page 26: Dual Serial Controller

    — Two general purpose 32-bit registers — Semaphore registers — Monarch selection registers — Test and Reset register • Reset and INIT generation Dual Serial Controller The dual serial controller is a dual universal asynchronous receiver and transmitter (DUART). This chip provides enhanced UART functions with 16-byte first-in, first-out (FIFO), a modem control interface.

  • Page 27: Scsi Controller

    • 160-pin low profile flat pack (LQFP) package • Firmware is provided for the following interfaces: — Intelligent platform management interface (IPMI) — Intelligent platform management bus (IPMB) SCSI Controller The SCSI controller is an LSI Logic 53C1030 chip. This chip is fully compliant with the SCSI Peripheral Interface-3 Specification (SPI-3).

  • Page 29: Controls, Ports, And Leds

    2 Controls, Ports, and LEDs This chapter describes the controls, ports, and LEDs on the front and rear panels of the server. Front Panel The control panel at the front of the server provides the controls and indicators commonly used for operation.

  • Page 30: Hot-Plug Disk Drive Indicators

    Table 2-1 Control Panel LEDs and Switches (continued) Name Function Diagnostic LEDs The four diagnostic LEDs operate in conjunction with the system LED to provide diagnostic 1 – 4 information about the system. Locator Button The Locator button and LED are used to help locate this server within a rack of servers. When and LED the button is engaged, the blue LED illuminates and an additional blue LED on the rear panel of the server illuminates.

  • Page 31: Power Supply Leds

    Table 2-3 Hard Drive LED Definitions Activity Description Status LED Not used Not used in the server. Activity LED Flashing green Indicates disk drive activity. This LED is directly controlled by the drive and illuminates when a drive is accessed. Power Supply LEDs The server is typically delivered with a single power supply (PS 1).

  • Page 32: Rear Panel

    Rear Panel The server rear panel includes communication ports, I/O ports, AC power connectors, and the Locator LED/button. Additional LEDs located on the rear panel of the server signal the operational status of the LAN connector of the optional iLO MP. For the location and description of the ports and connectors, see Figure 2-6 Table...

  • Page 33: Lan Gb A Connector

    Table 2-6 Rear Panel Connectors and Switches (continued) Connector/Switch Function Console/Remote/UPS 25-pin female serial data bus connector for the optional iLO MP. This connector connects (optional) to a three-port breakout cable (HP P/N A6144-63001) with individual connectors for Console, Remote and UPS. The Console connector becomes the console connection when iLO is installed.

  • Page 34: Management Processor Lan Leds

    Figure 2-8 10/100/1000 base-T Ethernet Gb LAN B Connector LEDs Table 2-8 10/100/1000 base-T Ethernet Gb LAN B Connector LEDs Location Color Description Speed (upper left) Amber 1000 MHz with Ethernet protocol and twisted-pair wiring is enabled Green 100 MHz with Ethernet protocol and twisted-pair wiring is enabled No link 10 MHz with Ethernet protocol and twisted-pair wiring is enabled Link (upper right)
  • Page 35 Table 2-9 iLO MP LAN LEDs (continued) Color Description Standby Green Standby power on Power Standby Off: standby power off Power Rear Panel...

  • Page 37: Powering Off And Powering On The Server

    3 Powering Off and Powering On the Server This chapter provides information and procedures for powering off and powering on the server. Power States The server has three power states: • Standby power • Full power • Plug the power cord into the appropriate receptacle on the rear of the chassis to achieve the standby power state;...

  • Page 38: Powering On The Server

    Gracefully shut down the operating system. See Appendix B (page 125), or your operating system documentation. Press the Power button to power off the server. IMPORTANT: The main DC voltage is now removed from the server; however, AC voltage for standby power is still present in the server. Unplug all power cables from the receptacles on the rear panel of the server.

  • Page 39: Removing And Replacing Components

    4 Removing and Replacing Components This chapter describes the procedure for removing and replacing the different components in the server. ESD Information Follow the procedures listed below to ensure safe handling of components and to prevent harm to both you and the server: •...

  • Page 40: Internal Physical Layout

    Figure 4-1 Internal Physical Layout Table 4-1 Component Locations 1 Power receptacles (PWR 1 right, PWR 2 left) 8 Hot-pluggable hard drives (up to 3) 2 Memory airflow guide 9 Hard disk lock 3 Processor airflow guide 10 System fans (fan 2 - memory, fan 3 - I/O cage) 4 System fans (fan 1A - right, fan 1B - left) 11 Intrusion switch 5 Slimline optical drive...

  • Page 41: System Board Connectors And Slots

    Figure 4-2 System Board Connectors and Slots Table 4-2 Connector Locations 1 External SCSI connector 9 PDH connectors 17 PCI backplane connector 2 SCSI connectors A and B 10 Power module power connector 18 Optical drive connector 3 CPU 0 slot 11 ZX1 memory and I/O controller (under 19 iLO hardware connector heat sink)

  • Page 42: Removing And Replacing System Top Metal Cover And Bezels

    Removing and Replacing System Top Metal Cover and Bezels To upgrade, remove, or replace most server components, you must first remove the top metal cover from the server chassis. WARNING! Do not remove the server covers without powering off the server and unplugging the power cord from the outlet or power protection device unless you are only replacing a hot-swappable fan.

  • Page 43: Inserting The Server Into The Rack

    Figure 4-3 Release the Rack Latches Slide the server out of the rack until the guide-rail release clips are visible. Inserting the Server into the Rack To insert the server into the rack, perform the following step: Press the rail clips on either side of the server inward and push the server into the rack until it stops.

  • Page 44: Replacing The Top Metal Cover

    Figure 4-4 Removing and Replacing the Top Metal Cover Lift the top metal cover off the server chassis. Replacing the Top Metal Cover CAUTION: Secure any wires or cables in your server so that they are not cut or interfere with the replacement of the top metal cover.

  • Page 45: Removing And Replacing The Front Bezel

    Figure 4-6 Closing the Top Metal Cover Slide the server into the rack enclosure and connect the power cables. Removing and Replacing the Front Bezel You must remove the front bezel from the chassis to remove or replace the power supplies or the optical drive.

  • Page 46: Removing And Replacing Hot-Swap And Hot-Plug Devices

    Swing the bezel and push toward the front of the server until the bezel locks into place. Figure 4-8 Replacing the Front Bezel Removing and Replacing Hot-Swap and Hot-Plug Devices The server has hard drives that are hot-pluggable and power supplies and fans that are hot-swappable.

  • Page 47: Removing Fan 1A Or Fan 1B

    Remove fan 1A, 1B, 2, or 3 from the server by grasping the appropriate fan and lifting it out of the fan socket. See Figure 4-9, Figure 4-10, and Figure 4-11. Figure 4-9 Removing Fan 1A or Fan 1B Figure 4-10 Removing Fan 2 Figure 4-1 1 Removing Fan 3 Removing and Replacing Hot-Swap and Hot-Plug Devices...

  • Page 48: Replacing A Server Fan

    Replacing a Server Fan Remove the top metal cover (if necessary). See “Removing the Top Metal Cover” (page 43). Grasp the replacement fan module and insert it into its fan socket. CAUTION: If you are hot swapping a fan, replace the top metal cover within 30 minutes to prevent damage to the server components.

  • Page 49: Replacing The Power Supply

    Press the power supply retaining clip to unlatch the power supply release lever. See Figure 4-12 Figure 4-13. Figure 4-12 Releasing the Power Supply Retaining Clip Press the power supply release lever and pull the power supply out of the server. Figure 4-13 Removing the Power Supply Replacing the Power Supply To replace the power supply:...

  • Page 50: Removing And Replacing An Internal Hard Drive

    Figure 4-14 Replacing the Power Supply Verify that both power supply LEDs, visible through the front of the supply grid, are illuminated. Verify the power supply replacement by using the utilities identified in Appendix C (page 141). To verify power supply operation, use the iLO MP PS command. Replace the front bezel.

  • Page 51: Unlocking And Releasing The Disk Drive

    If you have not locked your hard drives, proceed to step Step 3. If you have locked your hard drives, you must unlock them before removing or replacing a drive: Remove the top metal cover. See “Removing the Top Metal Cover” (page 43).

  • Page 52: Replacing A Hard Drive

    Figure 4-16 Releasing the Disk Drive Pull outward on the release lever to remove the drive from the server. See Figure 4-17. Figure 4-17 Removing the Disk Drive Replacing a Hard Drive To install or replace a hard drive: Insert the hard drive into the drive bay from which you removed the drive and push inward on the release lever until the drive no long slides forward.

  • Page 53: Removing And Replacing Internal Components

    Lock the hard drives in place. Replace the server top metal cover if it was removed to unlock drives. Validate the hard drive installation by: If the server does not have MP hardware installed, at the EFI shell prompt, enter shell> info io to interrogate the server for proper identification of the drive.

  • Page 54: Replacing The Memory Airflow Guide

    Remove the top metal cover. See “Removing the Top Metal Cover” (page 43). Grasp the memory airflow guide and lift it out of the server. See Figure 4-19. Figure 4-19 Removing the Memory Airflow Guide Replacing the Memory Airflow Guide Align the guides on both sides of the airflow guide with the slots on the chassis.

  • Page 55: Removing The Processor Airflow Guide

    Remove the main portion of the airflow guide: Hold the guide using the opening on top of the guide. See Figure 4-20. At the same time, grasp the back end of the airflow guide and lift the guide out of the server.

  • Page 56: Replacing The Processor Airflow Guide

    Lift the front portion of the airflow guide out of the server. Figure 4-22 Removing the Front Airflow Guide Replacing the Processor Airflow Guide Replace the front portion of the airflow guide: Align the release latch of the front half of the airflow guide over the release latch post and snap it in place.

  • Page 57: Removing And Replacing Memory Dimms

    Removing and Replacing Memory DIMMs Your server has 12 memory sockets for installing DDR SDRAM memory DIMMs. The supported DIMM sizes are 256 MB, 512 MB, 1 GB, 2 GB, or 4 GB. The server supports combinations from 1 GB up to 32 GB. See Figure 4-23 for the DIMM slot locations on the system board.

  • Page 58: Removing Dimms

    Figure 4-23 DIMM Slot Identification Removing DIMMs To remove DIMMs: Power off the server and disconnect all cables. See “Powering Off the Server” (page 37). Remove the top metal cover. See “Removing the Top Metal Cover” (page 43). Identify the DIMM to be removed and push the appropriate extraction levers found on either side of the DIMM slot outward to the open position.

  • Page 59: Installing Dimms

    Installing DIMMs You must load DIMMs in the correct order: • You must install DIMMs in matched quads. Two matched memory card pairs of equal size (that is, four identical DIMMs) must be installed, one pair per memory cell as follows: •...

  • Page 60: Inserting Dimm Into Slot

    Figure 4-24 Inserting DIMM into Slot Removing and Replacing Components...

  • Page 61: Removing And Replacing A Processor

    Removing and Replacing a Processor This section provides information about removing and replacing a processor. The processors are located on the system board, which is accessible by removing the top metal cover. WARNING! Ensure that the server is powered off, and all power sources have been disconnected from the server before removing or replacing a processor.

  • Page 62: Processor Locations On Server

    Figure 4-25 Processor Locations on Server Figure 4-26 Processor Location on System Board Removing and Replacing Components...

  • Page 63: Removing A Processor

    Removing a Processor To remove a processor module: Power off the server and disconnect all cables. See “Powering Off the Server” (page 37). Remove the top metal cover. See “Removing and Replacing the Top Metal Cover” (page 43). Remove the processor airflow guide. See Figure 4-27.

  • Page 64: Unscrewing The Captive Screws

    Figure 4-28 Unscrewing the Captive Screws Slide the sequencing retainer plate toward the back of the server to open the hole in the edge of the heat sink for insertion of the special processor tool into the processor module locking mechanism.

  • Page 65: Replacing A Processor

    Figure 4-30 Unlocking the Processor Module Locking Mechanism Lift the processor up and out of the chassis. Place the processor module into an anti-static container. Replacing a Processor CAUTION: Do not modify the settings of the DIP switches located on the system board. These switches are for factory use.

  • Page 66: Unlocked Zif Socket Lock

    Figure 4-31 Unlocked ZIF Socket Lock CAUTION: The zero insertion force (ZIF) socket for the processor is locked and unlocked by half a turn of the 2.5 mm hex tool. A counterclockwise 180 degree rotation (1/2 turn) unlocks the socket. A clockwise 180 degree rotation locks the socket. Attempting to turn the locking mechanism more that 180 degrees in either direction will severely damage the socket.

  • Page 67: Cpu Slot Alignment Holes

    Figure 4-33 CPU Slot Alignment Holes Figure 4-34 Installing the Processor Module CAUTION: Do not press the processor module into the socket. When properly aligned, the processor pins seat into the ZIF socket. No additional pressure is required. Use the special processor tool shipped with the replacement processor module to lock the processor module in place on the system board.

  • Page 68: Locking The Processor Module In Place

    Figure 4-35 Locking the Processor Module in Place Slide the sequencing retainer plate toward the rear of the server. Figure 4-36 Sliding the Sequencing Retainer Plate Install the four processor captive screws, and the two heat sink captive screws in the order shown here.

  • Page 69: Removing And Replacing The System Battery

    Figure 4-37 Securing the Captive Screws Connect the processor module turbo fan power cable to the connector on the system board. 10. Connect the power pod cable to the power cable. Use the 8-pin to 6-pin adapter if necessary. 11. Install the processor airflow guide. See “Removing the Processor Airflow Guide”...

  • Page 70: Replacing The System Battery

    Lift up on the battery and push on the back of it with a flat-head screwdriver to remove the battery from its holder. See Figure 4-38 for the battery location on the system board. CAUTION: Only lift the battery high enough to clear the holder. Excessive stress on the battery holder retaining clip can damage the clip.

  • Page 71: Removing And Replacing Pci Card Cage

    Removing and Replacing PCI Card Cage Accessory cards are installed in a removable PCI cage. This section explains how to access the PCI card cage, and how to remove and install accessory cards. WARNING! Ensure that the server is powered off, and all power sources have been disconnected from the server before removing or replacing a processor module.

  • Page 72: Replacing The Pci Card Cage

    Figure 4-40 Removing the PCI Cage Cover Unscrew the bulkhead screw that holds the accessory card in place. The PCI cards are now accessible for removal and replacement. Replacing the PCI Card Cage To install the PCI cage into the server: Install the PCI card cover onto the PCI cage.

  • Page 73: Removing And Replacing Pci Cards

    Removing and Replacing PCI Cards The server can contain up to four PCI cards. PCI cards are located in the PCI cage. CAUTION: There are restrictions on the number of PCI-X cards that can be installed in the server at any given time, depending on the cards being used. Maximum quantity for any I/O configuration using 337972-B21, AB287A, or A9890A cards: •...

  • Page 74: Replacing A Pci Or Graphics Card

    Install a PCI slot cover in the opening left by the removal of the PCI card. This maintains the proper airflow within the chassis. See Figure 4-41. Figure 4-41 Installing a PCI Slot Cover Replacing a PCI or Graphics Card Power off the server and disconnect the power cable and all other cables from the back of the server (if necessary).

  • Page 75: Removing And Replacing The Pci Backplane

    Reinstall the PCI cage. See “Replacing the PCI Card Cage” (page 72). Connect any cables that are required by the PCI card. Power on the server. See “Powering On the Server” (page 38). 10. Verify the installation of all PCI cards: •...

  • Page 76: Removing And Replacing A Removable Media Drive

    Figure 4-44 Replacing the PCI Backplane Replace any accessory and graphics cards. Connect server power, PCI, and LAN cables. Power on the server. See “Powering On the Server” (page 38). Verify the installation of the PCI backplane: • Look at the LEDs of all PCI cards for proper operation. •...

  • Page 77: Replacing A Removable Media Drive

    Figure 4-45 Removing and Replacing Removable Media Drive Replacing a Removable Media Drive To replace the removable DVD drive: If a removable media drive has not previously been installed in the server, the drive slot is covered with a DVD drive blank. Remove the DVD drive blank. Slide the replacement drive into the drive bay until it stops, and the retaining clips on both sides snap into place.

  • Page 78: Removing The Mp Card

    Figure 4-46 Removing the MP Card Unscrew the two external mounting screws that are located on both sides of the 25-pin serial connector as shown in Figure 4-47. Disconnect the MP card connector. Remove the MP card from the server by grasping it by its edges. Install the MP blank (if not reinstalling the MP card) on the chassis.

  • Page 79: Replacing The Mp Card

    Replace the top metal cover and reconnect the power and external cables. Replacing the MP Card Record the network settings from your iLO MP before beginning this task. Power off the server, disconnect all power and external cables, and remove the top metal cover.

  • Page 80: Replacing The Mp Card Battery

    Lift up on the battery and push on the back of it with a flat-head screwdriver to remove the battery from its holder. See Figure 4-48. CAUTION: Only lift the battery high enough to clear the holder. Excessive stress on the battery holder retaining clip can damage the clip.

  • Page 81: Removing And Replacing The Led Status Panel

    Removing and Replacing the LED Status Panel The LED status panel card contains the server and diagnostic LEDs. CAUTION: Some server settings are saved to the LED status panel. If you are replacing both the LED status panel and the system board, you must replace them one at a time to avoid loss of server settings.

  • Page 82: Removing And Replacing The System Board

    Removing and Replacing the System Board CAUTION: Some server settings are saved to the LED status panel. If you are replacing both the LED status panel and the system board, you must replace them one at a time to avoid loss of server settings.

  • Page 83: Replacing The System Board

    NOTE: To access the three power cables near the PCI cage, you must lift up the connector bridge for the PCI cage fan. Unscrew the system board mounting screw. A screw symbol is adjacent to the mounting screw. See Figure 4-51.

  • Page 84: Sliding The System Board Into The Chassis

    Grasp the new system board by its edges and carefully align it in the server: Angle the board to allow the PCI connector to slide into the PCI cage bay area. See Figure 4-53. Figure 4-53 Sliding the System Board into the Chassis Align the system board keyholes with their standoffs on the chassis.

  • Page 85: Sliding The System Board Into The Chassis

    Figure 4-55 Sliding the System Board into the Chassis Install the system board mounting screw. See Figure 4-56. Connect all cables to their appropriate connectors on the system board. Install the six rear backplane system board mounting screws. Figure 4-56 Installing the Rear Panel Mounting Screws If the server has an iLO MP, install it now.

  • Page 86: Reinstalling The Power Connectors

    Figure 4-57 Reinstalling the Power Connectors Replace the following server components: • PCI card cage. See “Replacing the PCI Card Cage” (page 72) • Server fans. See “Replacing a Server Fan” (page 48) • Processors. See “Replacing a Processor” (page 65) •...

  • Page 87: Removing And Replacing The Power Supply Interface Module

    UUID: A8F2D6EC-DBE5-11D9-9172-AE65D056B60F (Valid) Secondary UUID is Identical Product ID: 0x10A 18. Use the EFI date and time commands to set the correct local date and time. 19. Review the system configuration in the Boot Configuration Menu or EFI shell and reconfigure settings as necessary.

  • Page 88: Removing The Mounting Screw

    Unscrew the PSI mounting screw and remove the PSI module from the server. See Figure 4-59 Figure 4-60. Figure 4-59 Removing the Mounting Screw Figure 4-60 Removing the PSI Interface Module Removing and Replacing Components...

  • Page 89: Replacing The Power Supply Interface Module

    Replacing the Power Supply Interface Module Place the PSI module into the chassis by sliding the module retaining tab into the socket on the hard drive bay wall. See Figure 4-61. Figure 4-61 Replacing the Power Supply Interface Module Install the PSI module mounting screw and secure the power cables behind the holding clips.

  • Page 90: Removing And Replacing The Hard Drive Scsi Backplane

    Removing and Replacing the Hard Drive SCSI Backplane Removing the Hard Drive SCSI Backplane Power off the server, disconnect all power and external cables, and remove the top metal cover. Lift up on the PCI cage release lever and the back edge of the PCI cage and lift the PCI cage out of the server.

  • Page 91: Removing The Mounting Screws

    Figure 4-65 Removing the Mounting Screws Removing and Replacing Internal Components...

  • Page 92: Replacing The Hard Drive Scsi Backplane

    Remove the hard drive backplane by sliding it in the direction of the arrow and pulling it outward from its standoff posts. See Figure 4-66 Figure 4-67. Figure 4-66 Removing the Backplane Figure 4-67 Removing the Backplane from the Chassis Replacing the Hard Drive SCSI Backplane Insert the hard drive backplane into its four chassis standoffs and slide it to the left.
  • Page 93 Verify the backplane replacement by using the utilities identified in Appendix C (page 141). To verify operation, use the iLO MP commands. Removing and Replacing Internal Components...

  • Page 95: Troubleshooting

    5 Troubleshooting This chapter provides troubleshooting instructions for maintaining the server. Troubleshooting Tips CAUTION: Do not operate the server for more than 30 minutes with any cover (including disk drives) removed. Damage to server components can result due to improper cooling airflow. If you do not replace the top cover within 30 minutes, the server automatically shuts off.

  • Page 96: The System Has Intermittent Failures

    NOTE: If MP hardware is installed, the diagnostic LEDs are monitored by iLO. The diagnostic LEDs on the control panel are disabled. Display and examine the SEL and Forward Progress Log (FPL) for more information about warning or fault indication. Use the BMC CLI to cycle the server power, cli>pc off, cli>pc on.

  • Page 97: The Server Powers Off But Does Not Restart

    If the server stopped working after you installed a new board, remove the board and power on the server. If your server now works, check the installation instructions received with the new board for correct installation method. If the new board is preventing the server from powering on, a serious electrical problem is likely.

  • Page 98: Troubleshooting Frus

    Table 5-1 Troubleshooting FRUs Problem or Problem Normal Functioning Troubleshooting Steps Potential FRUs Symptom Indicators Indicators No indication of Standby LED is Power LED Off. 1. AC must be present. Check that No AC present housekeeping off when AC is PDU is plugged in.

  • Page 99: Verifying Hard Drive Operation

    Verifying Hard Drive Operation Each hard drive has an activity LED indicator on the front of the drive. See Figure 5-1. NOTE: Only the Activity LED is used. The Status LED is not monitored by HP-UX. Figure 5-1 LED Apertures on Hard Drive Lightpipes on the disk drive transmit light to these apertures from LEDs on the inside rear of the hot-swap mass storage cage.

  • Page 100: Identifying And Diagnosing Hardware Issues

    Identifying and Diagnosing Hardware Issues Should a failure occur, the server LEDs, the diagnostic LEDs, and the SEL help you identify the problem. • The server LED, LAN LED, and diagnostic LEDs on the display panel of the server change color and blink in different patterns to help identify specific problems.

  • Page 101: System Event Logs

    To display the status logs, entersl. The status logs consist of: • System Event • Forward Progress • Current Boot • Previous Boot • Live Events • Clear SEL/FPL Logs For a complete explanation of configuring the iLO MP and using the iLO MP commands, see the HP Integrity and HP 9000 iLO Operations Guide.
  • Page 102 Enter alert level threshold or [Q] to quit filter setup: 3 -> Alert threshold level 3 filter will be applied. Set up alert filter options on this buffer? (Y/[N]) Log Name Entries % Full Latest Entry ------------------------------------------------------------------- E - System Event 47 % 18 Feb 2003 09:38:10 Event Log Navigation Help:...

  • Page 103: Systems Without An Ilo Management Processor

    To decode the flashing state of server LED, review the entire SEL and look at events with alert level 3 and above. For example: Log Entry 24: 14 Feb 2003 15:27:02 Alert Level 3: Warning Keyword: Type-02 1b0800 1771520 Hot Swap Cage: SCSI cable removed Logged by: BMC;...

  • Page 104: Warnings

    Figure 5-2 Diagnostic LEDs The pattern of illuminated LEDs can be used to identify the category of the fault or warning. For example, if diagnostic LED one is red, there is a problem with memory. However, if diagnostic LEDs one and two are both red, there is a problem with the server processor. If the diagnostic LEDs indicate an error, check the EFI shell CLI cli>sl e to display the SEL for a more detailed explanations of the failure.

  • Page 105: Unknown Warning

    Table 5-5 Unknown Warning System LED LED 1 LED 2 LED 3 LED 4 Problem Solution Flashing Unknown View the SEL cli>sl e for additional yellow warning information. For further assistance, contact your HP Support Engineer. Table 5-6 Memory Warnings System LED LED 1 LED 2...

  • Page 106: Faults

    Table 5-9 Processor Warnings System LED LED 1 LED 2 LED 3 LED 4 Problem Solution Flashing GREEN Processor 0 Make sure nothing is blocking the yellow temperature server airflow and locate your server in exceeds limit an air-conditioned room. Flashing GREEN Processor 1...

  • Page 107: Firmware Errors

    Table 5-15 Firmware Errors System LED LED 1 LED 2 LED 3 LED 4 Problem Solution Flashing System View the SEL for additional firmware hang information. Table 5-16 System Board Faults System LED LED 1 LED 2 LED 3 LED 4 Problem Solution Flashing...

  • Page 108: Command Line Interface

    Table 5-19 BMC Faults System LED LED 1 LED 2 LED 3 LED 4 Problem Solution Flashing GREEN BMC firmware Turn off and unplug the server. Wait is damaged 20 seconds, then plug in and restart the server. If the error repeats, replace the base unit.

  • Page 109: Troubleshooting Example Using Cli

    00E0 7 CPU0 Halt boot 00037 DT 04 000000000000000F 00F0 7 CPU0 Halt boot 00037 Time 2003-10-31 22:29:06 Troubleshooting Example Using CLI This example uses the CLI and the SEL to display error message indicating that fan 2 (memory fan) has failed. cli>sl e Sev Generator/Sensor Description Event ID...

  • Page 110: Lan Leds

    Table 5-22 System Board LEDs Description STBY (power good) This green standby LED comes on as soon as the server power cord is plugged in. BMC (heartbeat) A few seconds after the server is plugged in this green LED starts flashing indicating the BMC software is operational.

  • Page 111: Optional Management Processor Lan Leds

    Table 5-24 Gb LAN B Connector LEDs (continued) Location Color Description Link (upper right) Green Link Link (upper right) Off: No link Optional Management Processor LAN LEDs Four iLO MP LAN LEDs are also on the rear panel if the server has an iLO MP installed. Table 5-25 details the LED locations and states for the LAN A connector.

  • Page 112: Online Support Tool Availability

    Exercisers stress devices to facilitate the reproduction of intermittent problems. Information modules create a log of information specific to one device, including: • The product identifier • A description of the device • The hardware path to the device • The vendor •...

  • Page 113: General Diagnostic Tools

    Table 5-27 Offline Support Tools List Offline Tool Functional Area CPUDIAG Processor Diagnostic MEMDIAG Memory Diagnostic MAPPER System Mapping Utility PLUTODIAG SBA/LBA Chipset PERFVER Peripheral Verifier DFDUTIL SCSI Disk Firmware Update Utility DISKUTIL Disk Test Utility (Non-Destructive) COPYUTIL Data Copy Utility DISKEXPT Disk Expert Utility IODIAG...

  • Page 114: Wbem Indication Providers And Ems Hardware Monitors

    Complete information on installing and using EMS hardware event monitors, as well as a list of supported hardware, can be found in the EMS Hardware Monitors Users Guide. An electronic copy of this book is provided on the website http://docs.hp.com/hpux/diag. WBEM Indication Providers and EMS Hardware Monitors Hardware monitors are available to monitor the following components (these monitors are distributed free on the OE media):...

  • Page 115: Online Support

    Collect the following information: • The model number of your server (for example rx2620). • The product number of your server. This can be found on the identification label, which is found on the pull-out label at the front of the server. •...

  • Page 117: A Parts Information

    A Parts Information This appendix provides server part information such as: • Description • Manufacturing part number • Replacement part number • Exchange part number Field Replaceable Parts View The items in this list and the corresponding item numbers are the field replaceable units (FRUs) for the server.

  • Page 118: Field Replaceable Parts List

    Figure A-2 Tower Parts Field Replaceable Parts List Use the item numbers listed in Table A-1 with the part illustrations to identify the nomenclature of the part. Part numbers are found by using the part nomenclature from this list to select the correct part from the HP Partsurfer (http://partsurfer.hp.com).
  • Page 119 Table A-1 Parts List (continued) Item No. Description Mfg. Part Number Part Number Part Number Replacement Exchange SCSI backplane A7231-66520 A7231-66520 A7231-69520 SCSI backplane - (RoHS) AB587-60005 AB587-60005 System Board AB331-60001 AB331-67001 AB331-69101 System Board - (RoHS) AB331-60101 AB331-67101 AB331-69201 System Board - (RoHS - for dual-core AB331-60101 AB331-67101...
  • Page 120 Table A-1 Parts List (continued) Item No. Description Mfg. Part Number Part Number Part Number Replacement Exchange Assembly - CPU Fans - (RoHS) AB331-04006 AB331-04006 Assembly - Thin 80mm Fan A7231-04015 A7231-04015 Assembly - Thin 80mm Fan - (RoHS) A7321-04060 A7321-04060 Assembly - Dual fan A7231-04033...
  • Page 121 Table A-1 Parts List (continued) Item No. Description Mfg. Part Number Part Number Part Number Replacement Exchange Assembly - Fan Cage A7231-04004 A7231-04004 Assembly - PCI Cage A7231-04006 A7231-04006 Assembly - Plastic turbocooler duct A7231-04034 A7231-04034 Assembly - Plastic turbocooler duct AD117-3400A AD117-3400A ECI Cover Plate...
  • Page 122 Table A-1 Parts List (continued) Item No. Description Mfg. Part Number Part Number Part Number Replacement Exchange PWR CORD U.K. 250 VAC 8120-1351 8120-1351 I/O Cards Mgmt. Processor with VGA A9803A A7231-66580 Mgmt. Processor with VGA - (RoHS) A9803A AB587-60002 PCI Single-Channel Ultra 160 Adapter A6828A A6828-60101...
  • Page 123 Table A-1 Parts List (continued) Item No. Description Mfg. Part Number Part Number Part Number Replacement Exchange GigE-TX/2G FC Combo Card HPUX A8784A A9784-60001 A9784-69001 2-port 2 Gb FC HPUX, Linux, A6826A A6826-60001 A6826-69001 Windows Fibre Channel Card, 2 Gb, Single Port A6795A A6795-62001 A6795-69001...

  • Page 125: B Booting The Operating System

    B Booting the Operating System This chapter covers procedures for booting and shutting down an operating system on the server. Operating Systems Supported on HP Integrity Servers HP supports the following operating systems on entry-class HP Integrity servers. • HP-UX 11i Version 2 (B.11.23) For details see “Booting and Shutting Down HP-UX”...

  • Page 126: Booting And Shutting Down Hp-Ux

    The EFI Boot Configuration Menu provides the Add a Boot Option, Delete Boot Options, and Change Boot Order menu items (use this method if you must add an EFI Shell entry to the boot options list). Operating system utilities for managing the boot options list include the HP-UX setboot command and the HP OpenVMS @SYS$MANAGER:BOOT_OPTIONS.COM command.

  • Page 127: Standard Hp-Ux Booting

    Access the EFI Shell environment. To access the server console, log in to iLO and enter CO. When accessing the console, confirm that you are at the EFI Boot Manager menu (the main EFI menu). If you are at another EFI menu, choose Exit from the submenus until you return to the screen with the EFI Boot Manager heading.

  • Page 128: Single-User Mode Hp-Ux Booting

    Procedure B-3 Booting HP-UX (EFI Shell) From the EFI Shell environment, boot HP-UX on a device by first accessing the EFI System Partition (for example fs0:) for the root device, then entering HPUX to initiate the loader. Access the EFI Shell environment for the server on which you want to boot HP-UX. To access the server console, log in to iLO and enter CO.

  • Page 129: Booting Hp-Ux In Single-User Mode (Efi Shell)

    Booting HP-UX in Single-User Mode (EFI Shell) From the EFI Shell environment, boot in single-user mode by stopping the boot process at the HPUX.EFI interface (the HP-UX Boot Loader prompt, HPUX>) and entering the boot -is vmunix command. Access the EFI Shell environment for the system on which you want to boot HP-UX in single-user mode.

  • Page 130: Lvm Maintenance Mode Hp-Ux Booting

    LVM Maintenance Mode HP-UX Booting Use the following procedure to boot HP-UX in Logical Volume Management (LVM) maintenance mode. Booting HP-UX in LVM-Maintenance Mode (EFI Shell) From the EFI Shell environment, boot in LVM-maintenance mode by stopping the boot process at the HPUX.EFI interface (the HP-UX Boot Loader prompt, HPUX>) and entering the boot -lm vmunix command.

  • Page 131: Booting And Shutting Down Hp Openvms

    Booting and Shutting Down HP OpenVMS This section has procedures for booting and shutting down HP OpenVMS on entry-class HP Integrity servers, and procedures for adding HP OpenVMS to the boot options list. • To add an HP OpenVMS entry to the boot options list, see “Adding HP OpenVMS to the Boot Options List”...

  • Page 132: Booting Hp Openvms

    • bcfg boot mv #a #b — Moves the item number specified by #a to the position specified by #b in the boot options list. • bcfg boot add # file.efi "Description" — Adds a new boot option to the position in the boot options list specified by #.

  • Page 133: Shutting Down Hp Openvms

    \efi\vms\vms_loader.efi HP OpenVMS Industry Standard 64 Operating System, Version XAV1-D2Y Copyright 1976-2005 Hewlett-Packard Development Company, L.P. %PKA0, Copyright (c) 1998 LSI Logic PKW V3.2.20 ROM 4.19 %PKA0, SCSI Chip is SYM53C1010/66, Operating mode is LVD Ultra3 SCSI %SMP-I-CPUTRN, CPU #01 has joined the active set.

  • Page 134: Booting And Shutting Down Microsoft Windows

    At the OpenVMS DCL prompt, issue the @SYS$SYSTEM:SHUTDOWN command and specify the shutdown options in response to the prompts given. >@SYS$SYSTEM:SHUTDOWN SHUTDOWN -- Perform an Orderly System Shutdown on node RSNVMS How many minutes until final shutdown [0]: Reason for shutdown [Standalone]: Do you want to spin down the disk volumes [NO]? Do you want to invoke the site-specific shutdown procedure [YES]? Should an automatic system reboot be performed [NO]? yes...

  • Page 135: Booting The Microsoft Windows Operating System

    List the contents of the \EFI\Microsoft\WINNT50 directory to identify the name of the Windows boot option file (Boot00nn) that you want to import into the system boot options list. fs0:\> ls EFI\Microsoft\WINNT50 Directory of: fs0:\EFI\Microsoft\WINNT50 09/18/03 11:58a <DIR> 1,024 09/18/03 11:58a <DIR>...

  • Page 136: Shutting Down Microsoft Windows

    Press Enter to initiate booting using the chosen boot option. After Windows begins loading, wait for the Special Administration Console (SAC) to become available. The SAC interface provides a text-based administration tool that is available from the system console. For details see the SAC online help (enter ? at the SAC> prompt). Loading.: Windows Server 2003, Datacenter Starting: Windows Server 2003, Datacenter Starting Windows...

  • Page 137: Windows Shutdown From The Command Line

    Windows Shutdown from the Command Line From the Windows command line, issue the shutdown command to shut down the operating system. Log in to Windows running on the server that you want to shut down. For example, access the system console and use the Windows SAC interface to start a command prompt, from which you can issue Windows commands to shut down the server.

  • Page 138: Booting The Red Hat Enterprise Linux Operating System

    NOTE: On HP Integrity servers, the operating system installer automatically adds an entry to the boot options list. Access the EFI Shell environment. To access the server console, log in to iLO and enter CO. When accessing the console, confirm that you are at the EFI Boot Manager menu (the main EFI menu).

  • Page 139: Booting Red Hat Enterprise Linux From The Efi Shell

    \EFI\redhat\elilo.efi \EFI\redhat\elilo.conf After choosing the file system for the boot device (for example, fs0:) you can initiate the Linux loader from the EFI Shell prompt by entering the full path for the ELILO.EFI loader. By default the ELILO.EFI loader boots Linux using the kernel image and parameters specified by the default entry in the elilo.conf file on the EFI System Partition for the boot device.

  • Page 140: Booting Suse Linux Enterprise Server From The Efi Shell

    Booting SuSE Linux Enterprise Server from the EFI Shell To boot SuSE Linux Enterprise Server 10 from the EFI Shell: Access the EFI Shell. From the system console, choose the EFI Shell entry from the EFI Boot Manager menu to access the shell.

  • Page 141: C Utilities

    C Utilities This appendix describes the utilities that are part of the server. These include the EFI Boot Manager, and Extensible Firmware Interface Pre-OS System Environment (EFI/POSSE). Extensible Firmware Interface Boot Manager EFI is an operating system and platform-independent boot and pre-boot interface. EFI resides between the operating system and platform firmware.

  • Page 142: Efi Commands

    different ways to bring up the system. For example, you can boot to the EFI Shell, to an operating system located on the network or residing on media in the server, or the EFI Boot Maintenance menu. The following options are available in the EFI Boot Manager menu •...
  • Page 143 Table C-1 EFI Commands (continued) EFI Shell Command BCH Command BCH Command Parameters (PA-RISC) Definition Equivalent (PA-RISC) many commands ScRoll [ON|OFF] Display or change scrolling offer a [-b] capability parameter to cause 25 line breaks COnfiguration autoboot AUto [BOot|SEarch|STart] [ON|OFF] Display or set the auto start flag info boot...

  • Page 144: Efi/Posse Commands

    Table C-1 EFI Commands (continued) EFI Shell Command BCH Command BCH Command Parameters (PA-RISC) Definition Equivalent (PA-RISC) page deallocation Display or clear the page table (pdt) deallocation table errdump cmc processor internal [<proc>] [HPMC|LPMC|TOC|ASIC]] Display PIM information errdump init memory (PIM) EFI/POSSE Commands This section describes the EFI/POSSE commands developed for the server.
  • Page 145 Example C-1 help Command Shell> help List of classes of commands: boot -- Booting options and disk-related commands configuration -- Changing and retrieving system information devices -- Getting device, driver and handle information memory -- Memory related commands shell -- Basic shell navigation and customization scripts -- EFI shell-script commands Type "help"...
  • Page 146 Example C-4 help cpuconfig Command Shell> help cpuconfig Deconfigure or reconfigure cpus CPUCONFIG [module] | [threads] [on|off] module : Specifies which cpu module to configure threads : Use to display info or configure threads on|off : Specifies to configure or deconfigure a cpu module or threads Note: 1.

  • Page 147: Baud

    Example C-5 help ioconfig Command Shell> help ioconfig Deconfigure or reconfigure IO components or settings IOCONFIG [fast_init|wol [on|off]] fast_init Specifies device connection policy setting Specifies System Wake-On-LAN setting on|off Specifies to configure or deconfigure a feature or component Note: 1. If fast_init is enabled, firmware will connect only the minimum set of devices during boot.

  • Page 148: Boottest

    Table C-2 Communications Parameters Parameter Value RECEIVE_FIFO_DEPTH TIMEOUT 1000000 PARITY No parity DATA_BITS STOP_BITS CONTROL_MASK boottest Interacts with the speedy boot variable allowing it to be set appropriately. Syntax boottest Displays status of all speedy boot bits boottest on Run all tests (for a normal boot time) boottest off Skip all tests (for a faster boot time) boottest [test]...

  • Page 149: Cpuconfig

    Example C-6 boottest Command Shell> boottest BOOTTEST Settings Default Variable Selftest Setting ------------- ------------------------- booting_valid On (OS speedy boot aware) early_cpu Run this test late_cpu Run this test platform Run this test chipset Run this test io_hw Run this test mem_init Run this test mem_test...

  • Page 150: Ioconfig

    NOTE: The last remaining configured CPU in a server cannot be deconfigured. Example C-8 cpuconfig Command Shell> cpuconfig PROCESSOR INFORMATION Proc Arch Processor Speed Model Family State ------- --------- ------- ----- ------ ----- 1.6Ghz Sched Deconf 1.6Ghz Active ioconfig Deconfigures or reconfigures I/O components or settings. Syntax ioconfig <fast_init | wol>...

  • Page 151: Conconfig

    Example C-9 ioconfig Command Shell> ioconfig Deconfigure or reconfigure IO components or settings IOCONFIG [fast_init|wol [on|off]] fast_init Specifies device connection policy setting Specifies System Wake-On-LAN setting on|off Specifies to configure or deconfigure a feature or component Note: 1. If fast_init is enabled, firmware will connect only the minimum set of devices during boot.

  • Page 152: Default

    Example C-10 conconfig Command To display current primary operating system console Shell> conconfig CONSOLE CONFIGURATION Index Status Type Device Path ----- ------ ---- ----------- Serial Acpi(PNP0501,0) Serial Acpi(HWP0002,0)/Pci(1|1) Acpi(HWP0002,0)/Pci(4|0) Example C-1 1 conconfig 2 primary Command To change primary operating system console Shell>...

  • Page 153: Operation

    Operation Sets NVM and stable store values to predefined default values. Normally only a subset of values are available for default. To reset the system, execute the default clear command. errdump Displays the contents of processor internal memory logged for all processors present in the server. Syntax errdump [cpe | cmc | init | la | clear]...
  • Page 154 Example C-14 info all Command Shell> info all SYSTEM INFORMATION Date/Time: Sep 24, 2004 17:27:17 (20:04:09:24:17:27:17) Manufacturer: Product Name: server rx2620 Product Number: AB333A Serial Number: USR0418201 UUID: 336B81EE-A9AF-11D8-9653-3F6E1533CC31 System Bus Frequency: 200 MHz PROCESSOR MODULE INFORMATION # of Family/ Logical Cache Cache...
  • Page 155 Module/ Module/ Logical Logical Warnings ------- --------- -------- AutoBoot: ON - Timeout is : 10 sec Boottest: BOOTTEST Settings Default Variable OS is not speedy boot aware. Selftest Setting --------- -------------- early_cpu Run this test late_cpu Run this test platform Run this test chipset Run this test...
  • Page 156 0x1002 0x5159 Acpi(HWP0002,700)/Pci(2|0) System Wake-On-LAN: Enabled BOOT INFORMATION Monarch CPU: Current Preferred Monarch Monarch Module/ Module/ Logical Logical Warnings ------- --------- -------- AutoBoot: ON - Timeout is : 10 sec Boottest: BOOTTEST Settings Default Variable OS is not speedy boot aware. Selftest Setting ---------...
  • Page 157 ------------------- ------- ------ -------- Memory Controller 122b 0023 Root Bridge 1229 0023 Host Bridge 0000 122e 0032 Host Bridge 0001 122e 0032 Host Bridge 0002 122e 0032 Host Bridge 0003 122e 0032 Host Bridge 0004 122e 0032 Host Bridge 0006 122e 0032 Host Bridge...
  • Page 158 Example C-16 info mem Command Shell> info mem MEMORY INFORMATION ---- DIMM A ----- ---- DIMM B ----- DIMM Current DIMM Current ------ ---------- ------ ---------- 256MB Active 256MB Active 256MB Active 256MB Active ---- ---- ---- ---- ---- ---- ---- ---- Active Memory...

  • Page 159: Lanaddress

    Example C-18 info boot Command Shell> info boot BOOT INFORMATION Monarch CPU: Current Preferred Monarch Monarch Module/ Module/ Logical Logical Warnings ------- --------- -------- AutoBoot: ON - Timeout is : 10 sec Boottest: BOOTTEST Settings Default Variable OS is not speedy boot aware. Selftest Setting ---------...

  • Page 160: Monarch

    Example C-19 lanaddress Command LAN Address Information: LAN Address Path ----------------- ---------------------------------------- Mac(00306E4C4F1A) Acpi(HWP0002,0)/Pci(3|0)/Mac(00306E4C4F1A)) *Mac(00306E4C0FF2) Acpi(HWP0002,100)/Pci(2|0)/Mac(00306E4C0FF2)) monarch Displays or modifies the ID of the bootstrap processor. The preferred monarch number is stored in NVM. Syntax monarch <cpu> Parameters <cpu> specifies a cpu Operation If specified with no parameters, monarch displays the Monarch processor for the server.

  • Page 161: Operation

    Operation With no options specified, the command displays the PDT information for the server. The PDT is cleared and a reboot is required for memory reallocation and safe booting. Example C-21 pdt Command Shell> pdt PDT Information for PD Last Clear time for PD: PDT has not been cleared Number of total entries in PD PDT: Number of used entries in PD PDT:...

  • Page 162: Specifying Scsi Parameters

    Example C-23 sysmode Command Shell> sysmode System Mode: NORMAL Shell> sysmode admin You are now in admin mode. Shell> sysmode service You are now in service mode. Shell> sysmode normal You are now in normal mode. Specifying SCSI Parameters The following SCSI parameters can be configured for the SCSI board: •...
  • Page 163 To map the parameters for all PCI cards installed in the server, enter the shell> info io command at the EFI Shell prompt. A list of all the installed devices in the server and managed by EFI drivers appears. For example: I/O INFORMATION BOOTABLE DEVICES...
  • Page 164 Also, this SCSI interface has a non-numeric (XX) slot # indicating that it is on the system board. From the EFI Shell prompt, enter the following command to obtain the controller handle for the SCSI interface: devtree A tree of all EFI-capable devices installed in the system displays. For example: Shell>...
  • Page 165 Drv[45] Ctrl[1C] Lang[eng] Drv[45] Ctrl[1D] Lang[eng] This listing shows which driver controls which device (controller). This information describes a SCSI interface because the values shown for Ctrl—17 and 18—are the controller handles for the SCSI interface two channels (from the information displayed by the devtree command).
  • Page 166 Be sure the utility is running for the channel of the SCSI interface by comparing the values shown for PCI Bus, PCI Device, and PCI Function to the Bus #, Dev #, and Fnc # values from the info io command. CAUTION: Do not change the value for any of these fields on the Adapter Properties screen: •...

  • Page 167: Using The Boot Option Maintenance Menu

    Using the Boot Option Maintenance Menu This menu enables you to select console output and input devices as well as various boot options. The menu items are described below. The following selections are available on all menus: • Help: Displays the help available for the command. •...

  • Page 168: Add A Boot Option

    Where: • NO VOLUME LABEL: A hard drive. When you format a hard drive, the EFI tools provide an option to LABEL the disk. In this example, the volume is not labelled. • CD_FORMAT: The label created for the disk currently inside the DVD drive. •...

  • Page 169: Change Boot Order

    NOTE: This action does not delete any files, applications, or drivers from your system. This option displays a list of boot options that are configured on the system. The names match the options on the main Boot Manager menu. If you remove a drive from the system, you must manually delete it from the boot options list. •...

  • Page 170: Set Autoboot Timeout

    VenHw(D65A6B8C-71E5-4DF0-A909-F0D2992B5AA9) Boot0000 Set AutoBoot TimeOut Use this option to set the amount of time the system pauses before it launches the first item in the Boot Options list. For example: Set Auto Boot Timeout. Select an Option Set Timeout Value Delete/Disable Timeout Help Exit...

  • Page 171: Select Active Console Input Devices

    Table C-5 Console Output Devices To select: Choose: Serial A/Serial 1 Acpi(PNP0501,0)/Uart(9600 N81)/VenMsg(Vt100+) iLO MP Serial Console Acpi(HWP0002,700)/Pci(1|1)/Uart(9600 N81)/VenMsg(Vt100+) iLO MP VGA Port Acpi(HWP0002,700)/Pci(2|0) • Each option is identified with an EFI device path. Not all options are available, depending on the configuration of the server and the options purchased.

  • Page 172: Select Active Standard Error Devices

    • Each option is identified with an EFI device path. Not all options are available, depending on the configuration of the server and the options purchased. Device paths can differ slightly on different product models. • On both serial device examples, UART 9600 indicates the current baud rate of the serial device (can be changed with the EFI Shell baud command), VenMsg Vt100+ is the current emulation type (several different terminal emulation protocols are supported).

  • Page 173: Set System Wake-On Lan

    Set System Wake-On LAN Enables or disables the server Wake-On_LAN settings. Set System Defaults Selects server default settings. iLO MP The Integrated Lights-Out management processor (iLO MP) for entry-level Integrity servers is an autonomous management subsystem embedded directly on the server. It is the foundation of the server’s High Availability (HA), embedded server, and fault management.

  • Page 175: Index

    Index configurable components, EFI capable, displaying, 164 connector locations, 41 acetone, 114 control panel LEDs, 29 activity LED, 99 controller handle, 164 adapter controls path, 163 CD/DVD controls, 31 slot number, 163 control panel, 29 ammonia, 114 hard drive controls, 30 anti-static wrist strap, 39 core I/O specifications autoboot, 126...
  • Page 176 extensible firmware interface, (see EFI) MP, 34 MP LAN, 34 troubleshooting, 111 F/W LED, 110 power supply, 31 fault LED warnings, 104 rear panel, 32 fault management, 113 system, 29 field replaceable unit, FRU system board, 109 list of, 117 lighter fluid, 114 front bezel, removing and replacing, 45 locator LEDs, 30...
  • Page 177 power supply LEDs, 31 support power supply, removing and replacing, 48 online, 115 Pre-OS System Environment (see EFI/POSSE) phone, 114 processor supported operating systems, 125 location, 62 system battery socket specifications, 22 removing and replacing, 69 specifications, 20 system board processor airflow guide block diagram, 21 removing and replacing, 54...

This manual is also suitable for:

Integrity rx2620

Table of Contents
