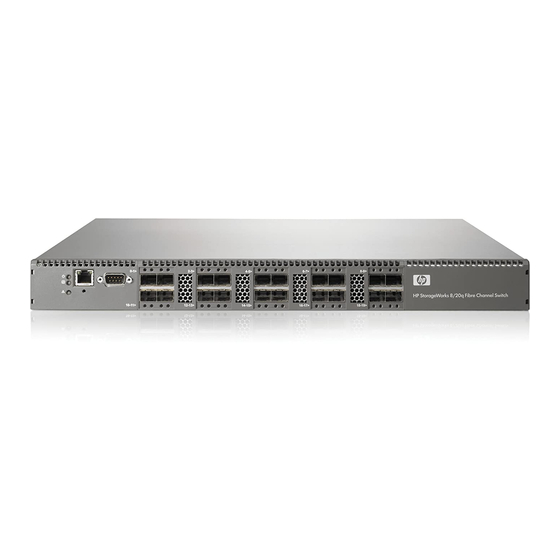

HP StorageWorks 8/20q Fibre Channel Switch
Command Line Interface Guide
This guide provides information about using the HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface
(CLI), including fabric, switch, and port management tasks. This guide also provides an alphabetical listing of the the CLI
commands, including the command syntax, operands, and notes, and examples of their use. This guide is for users who
are responsible for installing and servicing Fibre Channel equipment using the command line interface.
Part number: 5697-0418
Published June 2010
Edition: 2

Advertisement

Table of Contents

   Related Manuals for HP StorageWorks 8/20q

   Summary of Contents for HP StorageWorks 8/20q

  • Page 1 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide This guide provides information about using the HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface (CLI), including fabric, switch, and port management tasks. This guide also provides an alphabetical listing of the the CLI commands, including the command syntax, operands, and notes, and examples of their use.
  • Page 2 Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Microsoft, Windows, Windows XP, and Windows NT and Internet Explorer are U.S. registered trademarks of Microsoft Corporation. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 3: Table Of Contents

    Hardware information ............41 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 4 Firmware information ............41 Managing switch services .
  • Page 5 Adding groups to a security set ........... 95 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 6 Removing groups from a security set ..........95 Activating a security set .
  • Page 7 ............. 238 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 8 show config threshold ............239 show config zoning .
  • Page 9 Zoning configuration parameters 204 Component event monitoring filter parameters 205 Event display filter parameters 206 Severity level monitoring parameters 206 Port monitoring parameters 206 Pagebreak state parameters 208 Transmission speed parameters 209 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 10 Port administrative state parameters 209 Call Home service configuration attributes 210 Common RADIUS server configuration attributes 212 Server-specific RADIUS server configuration attributes 212 Switch services settings 215 Common SNMP configuration parameters 218 SNMP trap configuration parameters 219 DNS host name configuration parameters 221 IPv4 Ethernet configuration parameters 222 IPv6 Ethernet configuration parameters 222 Event logging configuration parameters 223...
  • Page 11: Command Line Interface Usage

    Your user account password has not been changed. It is strongly recommended that you do so before proceeding. To log off, enter the exit command: 8/20q FC Switch #> exit HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 12: Opening And Closing An Admin Session

    The following is an example of how to open and close an Admin session: 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> 8/20q FC Switch (admin) #> admin end Entering commands The command-line completion feature makes entering and repeating commands easier.
  • Page 13: Getting Help

    Otherwise, you can use FTP to download the support file from the switch to your workstation. NOTE: Support files are deleted from the switch during a power-cycle or switch reset. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 14 The following example creates a support file and sends it to a remote host using a workstation with an FTP server. 8/20q FC Switch #> create support Log Msg:[Creating the support file - this will take several seconds] FTP the dump support file to another machine? (y/n): y Enter address of ftp server (hostname, IPv4, or IPv6): 10.20.33.130...
  • Page 15: Downloading And Uploading Files

    ”Installing firmware” (page 50). • ”Backing up and restoring a switch configuration” (page 46). • ”Creating and downloading a log file” (page 103). • ”Creating a support file” (page 13). HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 16 Command Line Interface Usage...
  • Page 17: User Account Configuration

    10.20.68.108-1034 day month date time year snmp@OB-session3 Unknown day month date time year snmp@IB-session4 Unknown day month date time year admin@OB-session5 Unknown day month date time year HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 18: Creating User Accounts

    0 days? Please confirm (y/n): [n] The following example deletes the user account named user3. 8/20q FC Switch (admin) #> user delete user3 The user account will be deleted. Please confirm (y/n): [n] y User Account Configuration...
  • Page 19 Press 'q' and the ENTER key to abort this command. account OLD password : ******** account NEW password (8-20 chars) : ******** please confirm account NEW password: ******** password has been changed. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 20 User Account Configuration...
  • Page 21: Network Configuration

    To display specific information, add the corresponding keyword. For example, to display IPv6 configuration information, enter the show setup system ipv6 command: 8/20q FC Switch #> show setup system ipv6 System Information ------------------ EthIPv6NetworkEnable False EthIPv6NetworkDiscovery Static EthIPv6NetworkAddress 2001::1/64 EthIPv6GatewayAddress fe80::1 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 22: Configuring The Ethernet Port

    Dynamic Host Configuration Protocol (DHCP) To configure the IPv4 parameters, enter the set setup system ipv4 command: 8/20q FC Switch (admin) #> set setup system ipv4 A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
  • Page 23: Ipv6 Configuration

    New Value (press ENTER to accept current value, 'q' to quit, 'n' for none): EthIPv6NetworkEnable (True / False) EthIPv6Discovery (1=Static, 2=Dhcpv6, 3=Ndp) EthIPv6NetworkAddress (IPv6 Address/Mask Length format) : EthIPv6GatewayAddress (IPv6 Address) Do you want to save and activate this system setup? (y/n): [n] HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 24: Dns Server Configuration

    IP address. To configure a DNS server, enter the set setup system dns command in an Admin session, as shown in the following example: 8/20q FC Switch (admin) #> set setup system dns A list of attributes with formatting and current values will follow.
  • Page 25: Managing Ip Security

    4 or 6) or DNS host names. If a host name resolves to more than one IP address, the switch creates the necessary policies and associations. You can recognize these dynamic policies and associations because their names begin with DynamicSP_ and DynamicSA_ respectively. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 26: Applying Ip Security

    For information about using maintenance mode and connecting through the serial port, see the HP StorageWorks 8/20q Fibre Channel Switch Installation and Reference Guide. Displaying IP security information You can display the security policy and security association databases sorted by the following parameters: •...
  • Page 27: Ip Security Configuration History

    The security policy database is made up of user-defined policies and dynamic policies (policies created by the switch). In addition to creating a policy, you can delete, modify, rename, and copy user-defined policies. Dynamic policies can only be copied. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 28: Creating A Policy

    8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> ipsec edit 8/20q FC Switch (admin-ipsec) #> ipsec policy create h2h-sh-sp A list of attributes with formatting will follow. Enter a value or simply press the ENTER key to skip specifying a value.
  • Page 29: Modifying A User-defined Policy

    'ipsec cancel' command. 8/20q FC Switch (admin-ipsec) #> ipsec save The IPsec configuration will be saved and activated. Please confirm (y/n): [n] y HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 30: Renaming A User-defined Policy

    8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> ipsec edit 8/20q FC Switch (admin-ipsec) #> ipsec policy rename policy_1 policy_4 The security policy will be renamed. Please confirm (y/n): [n] y 8/20q FC Switch (admin-ipsec) #> ipsec save The IPsec configuration will be saved and activated.
  • Page 31: Creating An Association

    The security association will be deleted. Please confirm (y/n): [n] y 8/20q FC Switch (admin-ipsec) #> ipsec save The IPsec configuration will be saved and activated. Please confirm (y/n): [n] y HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 32: Modifying A User-defined Association

    Admin session and an Ipsec Edit session as shown in the following example. An asterisk (*) indicates a required entry. 8/20q FC Switch (admin-ipsec) #> ipsec association edit h2h-sh-sa A list of attributes with formatting and current values will follow.
  • Page 33: Renaming A User-defined Association

    8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> ipsec edit 8/20q FC Switch (admin-ipsec) #> ipsec association rename association_1 association_4 The security association will be renamed. Please confirm (y/n): [n] y 8/20q FC Switch (admin-ipsec) #> ipsec save The IPsec configuration will be saved and activated.
  • Page 34 Network Configuration...
  • Page 35: Switch Configuration

    37 • System process information, page 38 • Elapsed time between resets, page 38 • Configuration information, page 38 • Hardware information, page 41 • Firmware information, page 41 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 36: Name Server Information

    The show ns all command displays the list of worldwide names (WWNs) in the fabric, as shown in the following example. The show ns command displays the WWNs that are local to the switch. 8/20q FC Switch #> show ns all Seq Domain...
  • Page 37: Switch Operational Information

    Vx.x.x.0 (day month date time year) ActiveConfiguration default AdminState Online AdminModeActive False BeaconOnStatus OperationalState Online PrincipalSwitchRole False POSTFaultCode 00000000 POSTStatus Passed TestFaultCode 00000000 TestStatus NeverRun BoardTemp (1) - Degrees Celsius SwitchTemperatureStatus Normal HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 38: System Process Information

    TIME—Actual processing time • ELAPSED—Elapsed time since the process started • COMMAND—The command that initiated the process. The following example displays current system processes. 8/20q FC Switch #> ps PPID %CPU %MEM TIME ELAPSED COMMAND 0.3 00:00:04 2-03:02:31 cns 0.3 00:00:06 2-03:02:31 ens 0.3 00:00:09...
  • Page 39: Switch Configuration Parameters

    See Table 38 for descriptions of these parameters. 8/20q FC Switch #> show config zoning Configuration Name: default ------------------- Zoning Configuration Information -------------------------------- MergeAutoSave True DefaultZone Allow DiscardInactive False HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 40: Security Configuration Parameters

    These parameters determine how security is applied to the switch. See Table 34 for descriptions of the switch security configuration parameters. See Table 35 for descriptions of the port binding parameters. 8/20q FC Switch #> show config security Configuration Name: default ------------------- Switch Security Configuration Information ----------------------------------------- FabricBindingEnabled False...
  • Page 41: Hardware Information

    HP StorageWorks 8/20q Fibre Channel Switch HostName <undefined> EthIPv4NetworkAddress 10.20.11.192 EthIPv6NetworkAddress MACAddress 00:c0:dd:00:71:ee WorldWideName 10:00:00:c0:dd:00:71:ed SerialNumber FAM033100024 SymbolicName 8/20q FC Switch ActiveSWVersion V8.0.4.xx.xx ActiveTimestamp day month date time year POSTStatus Passed LicensedPorts SwitchMode Full Fabric HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 42: Managing Switch Services

    Simple SAN Connection Manager. To display the current switch services settings, enter the show setup services command, as shown in the following example: 8/20q FC Switch #> show setup services System Services -----------------------------...
  • Page 43 FTPEnabled (True / False) [True ] MgmtServerEnabled (True / False) [True ] CallHomeEnabled (True / False) [True ] Do you want to save and activate this services setup? (y/n): [n] HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 44: Managing Switch Configurations

    To create a copy of an existing configuration, enter the config copy command in an Admin session, as shown in the following example: 8/20q FC Switch (admin) config copy config_1 config_2 Deleting a switch configuration To delete a configuration from the switch, enter the config delete command in an Admin session, as shown in the following example.
  • Page 45: Modifying A Switch Configuration

    8/20q FC Switch (admin) #> config edit The config named default is being edited. 8/20q FC Switch (admin-config)#> set config port . . . 8/20q FC Switch (admin-config)#> set config switch . . . 8/20q FC Switch (admin-config)#> set config security . . .
  • Page 46: Backing Up And Restoring A Switch Configuration

    The config backup command creates the configdata file on the switch. This file can be used to restore a switch configuration only from the CLI; it cannot be used with QuickTools or Enterprise Fabric Management Suite to restore a switch. 8/20q FC Switch #> config backup The configdata file contains the following switch configuration information: •...
  • Page 47: Paging A Switch

    Displaying the date and time To display the date and time, enter the date command, as shown in the following example: 8/20q FC Switch #> date Mon Apr 07 07:51:24 2008 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 48: Setting The Date And Time Explicitly

    To change the time zone (to America/North Dakota, for example), enter the set timezone command in an Admin session, as shown in the following example: 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> set timezone Africa America...
  • Page 49: Setting The Time Through An Ntp Server

    Suite sessions afterwards Clears the event log Deletes supports files, firmware image files that have not been unpacked, and configuration backup files Closes all management sessions Performs power-on self test (POST) HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 50: Installing Firmware

    Installing firmware New firmware becomes available periodically, either on CD-ROM or from the HP website. To install firmware on a switch, follow these steps: Download the firmware image file to the switch. Unpack the firmware image file. Activate the new firmware. The activation can be disruptive or non-disruptive. See ”Non-disruptive activation”...
  • Page 51: One-step Firmware Installation

    Enter the password for your account name (FTP only). 331 Password required for johndoe. Password:****** 230 User johndoe logged in. The firmware will now be downloaded from the remote host to the switch, installed, and activated. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 52: Custom Firmware Installation

    If your workstation has an FTP server, enter the image fetch command: 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> image fetch account_name ip_address filename • If your workstation has a TFTP server, enter the image tftp command to download the firmware image file.
  • Page 53: Online Tests For Switches

    An internal loopback test exercises all internal port and inter-port connections. • An external loopback test exercises all internal ports, transceivers, and inter-port connections. A transceiver with a loopback plug is required for all ports. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 54: Displaying Switch Test Status

    The following example performs an internal connectivity test on a switch: 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> set switch state diagnostics 8/20q FC Switch (admin) #> test switch connectivity internal A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the default value.
  • Page 55: Verifying And Tracing Fibre Channel Connections

    • The HP StorageWorks 8/20q Port Activation Upgrade LTU enables additional SFP ports in increments of four for totals of 16 or 20 ports. Installing a feature license key is not disruptive, nor does it require a switch reset. To order a license key, contact your switch distributor or your authorized reseller.
  • Page 56: Installing A Feature License Key

    To configure idle login and Admin session limits, enter the set setup system timers command as shown in the following example: 8/20q FC Switch (admin) #> set setup system timers A list of attributes with formatting and current values will follow.
  • Page 57: Port Configuration

    ------------ AdminState Online LinkSpeed Auto PortType SymbolicName Port3 ALFairness False DeviceScanEnabled True ForceOfflineRSCN False ARB_FF False InteropCredit ExtCredit FANEnabled True AutoPerfTuning True MSEnabled True NoClose False IOStreamGuard Auto PDISCPingEnabled True HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 58: Port Operational Information

    Port operational information To display port operational information, enter the show port command. 8/20q FC Switch #> show port 1 Port Number: 1 ------------ AdminState Online AsicNumber AsicPort ConfigType DownstreamISL False EpConnState Connected EpIsoReason NotApplicable IOStreamGuard Disabled Licensed True LinkSpeed...
  • Page 59: Port Threshold Alarm Configuration Parameters

    CRCErrorsMonitoringEnabled True RisingTrigger FallingTrigger SampleWindow DecodeErrorsMonitoringEnabled True RisingTrigger FallingTrigger SampleWindow ISLMonitoringEnabled True RisingTrigger FallingTrigger SampleWindow LoginMonitoringEnabled True RisingTrigger FallingTrigger SampleWindow LogoutMonitoringEnabled True RisingTrigger FallingTrigger SampleWindow LOSMonitoringEnabled True RisingTrigger FallingTrigger SampleWindow HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 60: Port Performance

    Enter the show media command to display operational information about a transceiver, as shown in the following example. For a description of the transceiver information in the show media display, see Table 8/20q FC Switch #> show media 4 Port Number: 4 -------------...
  • Page 61: Modifying Port Operating Characteristics

    8/20q FC Switch (admin) config edit 8/20q FC Switch (admin) #> set config ports 3 8/20q FC Switch (admin-config)#> config save 8/20q FC Switch (admin)#> config activate 8/20q FC Switch (admin)#> admin end HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 62: Configuring Transparent Routing

    The transparent routing feature provides inter-fabric routing to allow controlled and limited access between devices on a 8/20q Fibre Channel Switch (local) fabric and devices on a remote fabric consisting of switches made by other vendors. For a list of switches that are supported in a remote fabric, see the HP StorageWorks 8/20q Fibre Channel Switch release notes, and the HP StorageWorks SAN Design Reference Guide located at the HP website: http://www.hp.com/go/sandesignguide.
  • Page 63 To configure transparent routing: Determine what devices on the local fabric require access to devices on the remote fabric. Local devices must be attached directly to the 8/20q Fibre Channel Switch. In this example, the device WWNs are as follows: •...
  • Page 64: Port Binding

    The changes have been saved; however, they must be activated before they can take effect -- see Zoneset Activate command. 8/20q FC Switch (admin) #> zoneset activate zoneset_alpha Apply the same inter-fabric zone that was created on the local fabric to the active zoning on the remote HP StorageWorks B-series or C-Series fabric.
  • Page 65: Resetting A Port

    8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> config edit 8/20q FC Switch (admin-config) #> set config security port 1 A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
  • Page 66 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> config edit 8/20q FC Switch (admin-config) #> set config threshold A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
  • Page 67: Testing A Port

    The test has been started. A notification with the test result(s) will appear on the screen when the test has completed. 8/20q FC Switch (admin) #> Test for port 1 Passed. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 68: Offline Tests For Ports

    The following example performs an offline test: 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> set port 1 state diagnostics 8/20q FC Switch (admin) #> test port 1 offline internal A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the default value.
  • Page 69: Zoning Configuration

    To display a list of the zonesets, enter the zoneset list command, as shown in the following example: 8/20q FC Switch #> zoneset list Current List of ZoneSets ------------------------ alpha beta HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 70 To display all zonesets, zones, and zone members in the active zoneset and configured zonesets, enter the zoning list command, as shown in the following example. Merged and edited zonesets are displayed if they exist. 8/20q FC Switch #> zoning list Active (enforced) ZoneSet Information ZoneSet...
  • Page 71: Active Zoneset Information

    To display the name of the active zoneset and its activation history, enter the zoneset active command, as shown in the following example: 8/20q FC Switch #> zoneset active Active ZoneSet Information -------------------------- ActiveZoneSet Bets LastActivatedBy admin@OB-session6 LastActivatedOn day month date time year HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 72: Merged Zoneset Information

    To display the unsaved edited zoneset information, enter the zoning edited command in an Admin session and a Zoning Edit session, as shown in the following example: 8/20q FC Switch (admin-zoning) #> zoning edited Edited (unsaved) Zoning Information...
  • Page 73: Zone Membership Information

    To display a list of zones that are not members of any zoneset, enter the zone orphans command, as shown in the following example: 8/20q FC Switch #> zone orphans Current list of orphan zones ---------------------------- zone3 zone4 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 74: Alias And Alias Membership Information

    ---------------------------- alias1 alias2 To display the membership for a specified alias, enter the alias members command, as shown in the following example: 8/20q FC Switch #> alias members alias1 Current list of members for Zone Alias: alias1 --------------------------------------- 50:06:04:82:bf:d2:18:c4 50:06:04:82:bf:d2:18:c5...
  • Page 75: Zoning Database Limits

    • DefaultZone—Allows or denies communication among ports/devices that are not defined in the active zoneset. • DiscardInactive—Enables or disables the discarding of all zonesets except the active zoneset. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 76 8/20q FC Switch (admin) #> config edit The config named default is being edited. 8/20q FC Switch (admin-config) #> set config zoning A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
  • Page 77: Modifying The Zoning Database

    8/20q FC Switch (admin) #> zoning merged capture This command will overwrite the configured zoning database in NVRAM. Please confirm (y/n): [n] y The merged zoning database has been saved. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 78: Resetting The Zoning Database

    To rename a zoneset, enter the zoneset rename command, as shown in the following example: 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> zoning edit 8/20q FC Switch (admin-zoning) #> zoneset rename zoneset_old zoneset_new 8/20q FC Switch (admin-zoning) #>zoning save Zoning Configuration...
  • Page 79: Copying A Zoneset

    To add a zone to a zoneset, enter the zoneset add command, as shown in the following example: 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> zoning edit 8/20q FC Switch (admin-zoning) #> zoneset add zoneset_1 zone_1 zone_2 8/20q FC Switch (admin-zoning) #>zoning save Removing zones from a zoneset...
  • Page 80: Renaming A Zone

    To add ports/devices to zone_1, enter the zone add command, as shown in the following example: 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> zoning edit 8/20q FC Switch (admin-zoning) #> zone add zone_1 alias_1 1,4 1,5 8/20q FC Switch (admin-zoning) #> zoning save Removing members from a zone...
  • Page 81: Managing Aliases

    8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> zoning edit 8/20q FC Switch (admin-zoning) #> alias remove alias_1 1,4 1,5 8/20q FC Switch (admin-zoning) #> zoning save HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 82 Zoning Configuration...
  • Page 83: Connection Security Configuration

    Connection Security Configuration The 8/20q Fibre Channel Switch supports secure connections with Telnet and switch management applications. The Secure Shell protocol (SSH) secures Telnet connections to the switch. The Secure Sockets Layer (SSL) protocol secures switch connections to the following management applications: •...
  • Page 84: Displaying Ssl And Ssh Services

    Displaying SSL and SSH services To display the status of the SSH and SSL services, enter the show setup services command, as shown in the following example: 8/20q FC Switch #> show setup services System Services ----------------------------- TelnetEnabled True SSHEnabled...
  • Page 85: Radius Server Configuration

    DeviceAuthServer False UserAuthServer False AccountingServer False Timeout Retries SignPackets False Secret ******** Server: 2 ServerIPAddress bacd:1234:bacd:1234:bacd:1234:bacd:1234 ServerUDPPort 1812 DeviceAuthServer True UserAuthServer True AccountingServer True Timeout Retries SignPackets False Secret ******** HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 86: Configuring A Radius Server On The Switch

    The following example configures the common RADIUS server configuration parameters: 8/20q FC Switch (admin) #> set setup radius common A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
  • Page 87 The following example configures RADIUS server 1: 8/20q FC Switch (admin) #> set setup radius server 1 A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
  • Page 88 RADIUS Server Configuration...
  • Page 89: Device Security Configuration

    To display a list of the security sets, enter the securityset list command, as shown in the following example: 8/20q FC Switch #> securityset list Current list of SecuritySets ---------------------------- alpha beta HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 90: Active Security Set Information

    To display all security sets, groups, and group members in the security database, enter the security list command, as shown in the following example: 8/20q FC Switch #> security list Active Security Information SecuritySet Group GroupMember ----------- ----- ----------- No active securityset defined.
  • Page 91: Security Set Membership Information

    To display the members for a specified group, enter the group members command, as shown in the following example: 8/20q FC Switch #> group members group_1 Current list of members for Group: group_1 ---------------------------------- 10:00:00:c0:dd:00:71:ed 10:00:00:c0:dd:00:72:45 10:00:00:c0:dd:00:90:ef 10:00:00:c0:dd:00:b8:b7 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 92: Security Database Modification History

    Security database modification history To display a record of security database modifications, enter the security history command, as shown in the following example: 8/20q FC Switch #> security history Active Database Information --------------------------- SecuritySetLastActivated/DeactivatedBy Remote SecuritySetLastActivated/DeactivatedOn day month date time year...
  • Page 93: Configuring The Security Database

    (see config activate command) before it can take effect. To discard this configuration use the config cancel command. 8/20q FC Switch (admin-config)#> config save 8/20q FC Switch (admin)#> config activate 8/20q FC Switch (admin)#> admin end HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 94: Modifying The Security Database

    8/20q FC Switch (admin) #> security edit 8/20q FC Switch (admin-security)#> securityset . . . 8/20q FC Switch (admin-security)#> group . . . 8/20q FC Switch (admin-security)#> security . . .
  • Page 95: Copying A Security Set

    8/20q FC Switch (admin-security) #> group delete group_port Renaming a group To rename group_port to port_1, enter the group rename command, as shown in the following example: 8/20q FC Switch (admin-security) #> group rename group_port port_1 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 96: Copying A Group

    To copy the contents of an existing group (group_port) to a new group (port_1), enter the group copy command, as shown in the following example: 8/20q FC Switch (admin-security) #> group copy group_port port_1 Adding members to a group Adding a member to a group involves specifying a group, the member worldwide name, and the member attributes.
  • Page 97: Removing Members From A Group

    Removing members from a group To remove a member from a group, enter the group remove command, as shown in the following example: 8/20q FC Switch (admin-security) #> group remove group_1 10:00:00:c0:dd:00:90:a3 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide...
  • Page 98 Device Security Configuration...
  • Page 99: 10event Log Configuration

    Event messages originate from the switch or from the management application in response to events that occur in the fabric. For a complete listing of switch event messages, see the HP StorageWorks 8/20q and SN6000 Fibre Channel Switch Event Messages Reference Guide.
  • Page 100 The following is an example of the show log command: 8/20q FC Switch #> show log [327][day month date time year][I][Eport Port:0/8][Eport State= E_A0_GET_DOMAIN_ID] [328][day month date time year][I][Eport Port: 0/8][FSPF PortUp state=0] [329][day month date time year][I][Eport Port: 0/8][Sending init hello]...
  • Page 101: Filtering The Event Log Display

    8/20q FC Switch (admin) #> set log component switch 8/20q FC Switch (admin) #> set log level warn 8/20q FC Switch (admin) #> set log port 0 1 2 3 8/20q FC Switch (admin) #> set log save HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 101...
  • Page 102: Displaying The Event Log Configuration

    To return the event log configuration to the factory default, enter the set log restore command in an Admin session, as shown in the following example: 8/20q FC Switch (admin) #> set log restore Clearing the event log To delete all entries in the event log, enter the set log clear command in an Admin session, as shown in the following example: 8/20q FC Switch (admin) #>...
  • Page 103: Creating And Downloading A Log File

    Open an FTP session on the switch and log in with the account name images and password images. Transfer the file logfile in binary mode with the get command. >ftp ip_address user:images password: images ftp>bin ftp>get logfile xxxxx bytes sent in xx secs. ftp>quit HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 103...
  • Page 104 104 Event Log Configuration...
  • Page 105: 11call Home Configuration

    11 Call Home Configuration NOTE: The 8/20q Fibre Channel Switch Call Home service provides an email notification capability for the switch. This service has no relationship with the HP Call Home feature, which notifies HP services. This section describes Call Home configuration tasks.
  • Page 106: Call Home Messages

    Call Home messages The Call Home service generates e-mail messages for the specified event severity level and the following switch actions: • Switch comes online • Switch goes offline • Reboot • Power up • Power down • SFP failure NOTE: For a power-down event, if the switch is forced to power down before the message is sent to the SMTP server, no message will be transmitted.
  • Page 107: Technical Support Interface

    Tech_Support_Center. The capture command enables you to add instructions to the Tech_Support_Center profile to specify the frequency with which to e-mail the collected data. For more information, see ”Adding a data capture configuration” (page 114). HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 107...
  • Page 108: Configuring The Call Home Service

    Call Home service configuration entries. 8/20q FC Switch (admin) #> set setup callhome A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value. If you wish to terminate this process before reaching the end of the list press 'q' or 'Q' and the ENTER key to do so.
  • Page 109: Managing The Call Home Database

    To remove all Call Home profiles and restore the Call Home service configuration to its factory state, enter the reset callhome command. 8/20q FC Switch (admin) #> reset callhome HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 109...
  • Page 110: Displaying Call Home Database Information

    • E-mail messages in the Call Home queue To display the Call Home data base change history information, enter the callhome history command, as shown in the following example: 8/20q FC Switch #> callhome history CallHome Database History ------------------------- ConfigurationLastEditedBy...
  • Page 111 To display information about e-mail messages in the Call Home queue, enter the callhome queue stats command, as shown in the following example: 8/20q FC Switch #> callhome queue stats Callhome Queue Information -------------------------- FileSystemSpaceInUse 534 (bytes) EntriesInQueue HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 111...
  • Page 112: Creating A Profile

    8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> callhome edit 8/20q FC Switch (admin-callhome) #> profile create profile_1 A list of attributes with formatting and default values will follow. Enter a new value or simply press the ENTER key to accept the current value.
  • Page 113: Modifying A Profile

    8/20q FC Switch (admin-callhome) #> profile copy profile_1 profile_a 8/20q FC Switch (admin-callhome) #> callhome save The CallHome database profiles will be saved and activated. Please confirm (y/n): [n] y HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 113...
  • Page 114: Adding A Data Capture Configuration

    If the Tech_Support_Center profile does not exist, you must create it using the profile create command. 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> callhome edit 8/20q FC Switch (admin-callhome) #> capture add A list of attributes with formatting and default values will follow.
  • Page 115: Deleting A Data Capture Configuration

    The callhome queue will be cleared. Please confirm (y/n): [n] y To display the contents of the Call Home message queue, see ”Displaying Call Home database information” (page 110). HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 115...
  • Page 116: Resetting The Call Home Database

    This command does not affect the Call Home service configuration. 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> callhome edit 8/20q FC Switch (admin-callhome) #> callhome clear 8/20q FC Switch (admin-callhome) #> callhome save The CallHome database profiles will be saved and activated.
  • Page 117: 12simple Network Management Protocol Configuration

    [True ] Do you want to save and activate this services setup? (y/n): [n] You can display the SNMPEnabled parameters using the show setup snmp or show setup services commands. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 117...
  • Page 118: Displaying Snmp Information

    To display common and trap-specific SNMP configuration information, enter the show setup snmp command, as shown in the following example. See Table 50 for a description of the SNMP parameters. 8/20q FC Switch #> show setup snmp SNMP Information ---------------- SNMPEnabled...
  • Page 119: Modifying The Snmp Configuration

    WriteCommunity (string, max=32 chars) : AuthFailureTrap (True / False) ProxyEnabled (True / False) SNMPv3Enabled (True / False) Do you want to save and activate this snmp setup? (y/n): [n] HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 119...
  • Page 120: Resetting The Snmp Configuration

    The following example configures SNMP trap 1: 8/20q FC Switch (admin) #> set setup snmp trap 1 A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
  • Page 121: Managing The Snmp Version 3 Configuration

    (True / False) Do you want to save and activate this snmp setup? (y/n): [n] y The following sub-sections describe how to create, display, and modify SNMP version 3 user accounts. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 121...
  • Page 122: Creating An Snmp Version 3 User Account

    To create an SNMP version 3 user account, enter the snmpv3user add command as shown in the following example: 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> snmpv3user add A list of SNMPV3 user attributes with formatting and default values as applicable will follow.
  • Page 123: Modifying An Snmp Version 3 User Account

    (0=ReadOnly, 1=ReadWrite) [ReadWrite ] : 1 Authentication (True/False) [True ] : f Do you want to save and activate this setup ? (y/n): [n] y SNMPV3 user account edited and activated. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 123...
  • Page 124 124 Simple Network Management Protocol Configuration...
  • Page 125: 13command Reference

    The Notes paragraph presents information about the command and its use, including special applications or its effects on other commands. The Examples paragraph presents sample screen captures of the command and its output. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 125...
  • Page 126: Admin

    Admin session to time out, or use the admin cancel command. Examples The following example shows how to open and close an Admin session: 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> 8/20q FC Switch (admin) #> admin end set setup system, page 221 See also...
  • Page 127: Alias

    • 6-character hexadecimal device Fibre Channel address (hex) • 16-character hexadecimal WWPN for the device with the format xx:xx:xx:xx:xx:xx:xx:xx. rename [alias_old] [alias_new] Renames the alias given by [alias_old] to the alias given by [alias_new]. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 127...
  • Page 128 8/20q FC Switch #> alias list Current list of Zone Aliases ---------------------------- alias1 alias2 The following is an example of the alias members command: 8/20q FC Switch #> alias members alias1 Current list of members for Zone Alias: alias1 --------------------------------------- 50:06:04:82:bf:d2:18:c4 50:06:04:82:bf:d2:18:c5 50:06:04:82:bf:d2:18:c6...
  • Page 129: Callhome

    Description Opens a Callhome Edit session in which to create and manage Call Home profiles. NOTE: The 8/20q Fibre Channel Switch Call Home service provides an e-mail notification capability for the switch. This service has no relationship with the HP Call Home feature, which notifies HP services.
  • Page 130: Call Home Queue Statistics Parameters

    Saves changes made during the current Callhome Edit session. test profile [profile] Tests the Call Home profile given by [profile]. Examples The following is an example of the callhome history command: 8/20q FC Switch #> callhome history CallHome Database History ------------------------- ConfigurationLastEditedBy...
  • Page 131 The following is an example of the callhome queue stats command: 8/20q FC Switch #> callhome queue stats Callhome Queue Information -------------------------- FileSystemSpaceInUse 534 (bytes) EntriesInQueue See also profile, page 175 reset, page 180 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 131...
  • Page 132: Capture

    capture Description Manages the data capture configuration for the Tech_Support_Center Call Home profile. The data capture configuration determines the time and frequency by which status and trend data are collected from the switch and sent to recipients specified in the Tech_Support_Center profile. Authority Admin session and Callhome Edit session.
  • Page 133 The selected capture entry has been edited for profile Tech_Support_Center. This configuration must be saved with the 'callhome save' command before it can take effect, or to discard this configuration use the 'callhome cancel' command. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 133...
  • Page 134 The following is an example of the capture remove command: 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> callhome edit 8/20q FC Switch (admin-callhome) #> capture remove Capture Entries for Profile: Tech_Support_Center Index TimeOfDay DayOfWeek Interval -----...
  • Page 135: Clone Config Port

    8/20q FC Switch (admin-config)#> config save 8/20q FC Switch (admin)#> config activate 8/20q FC Switch (admin)#> admin end See also set config port, page 195 show config port, page 235 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 135...
  • Page 136: Config

    config Description Manages the Fibre Channel configurations on a switch. Authority Admin session for all operands except backup and list Syntax config activate [config_name] backup export cancel copy [config_source] [config_destination] delete [config_name] edit [config_name] export [account_name] [ip_address] [file_name] import [account_name] [ip_address] [file_name] list restore import save [config_name]...
  • Page 137 The following is an example of how to create a backup file (configdata) and download the file to the workstation. 8/20q FC Switch #> config backup 8/20q FC Switch #> exit #>ftp symbolic_name or ip_address user: images password: images ftp> bin ftp> get configdata ftp> quit HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 137...
  • Page 138 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> config restore The switch will be reset after restoring the configuration. Please confirm (y/n): [n] y Alarm Msg: [day month date time year][A1005.0021][SM][Configuration is...
  • Page 139: Create

    The current date and time is day mon date hh:mm:ss UTC yyyy. This is the time used to stamp onto the certificate. Is the date and time correct? (y/n): [n] y Certificate generation successful. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 139...
  • Page 140 You then use the get FTP command to transfer the dump_support.tgz file in binary mode. 8/20q FC Switch (admin) #> create support Log Msg:[Creating the support file - this will take several seconds] FTP the dump support file to another machine? (y/n): n 8/20q FC Switch (admin) #>...
  • Page 141: Date

    8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> date 013110152008 8/20q FC Switch (admin) #> date Thu Jan 31 10:15:03 UTC 2008 See also set setup system, page 221 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 141...
  • Page 142: Exit

    exit Description Closes the switch connection. Authority None Syntax exit Notes You can also press Control-D to close the switch connection. 142 Command Reference...
  • Page 143: Fcping

    28 bytes from local switch to 0x970400 time = 11 usec 28 bytes from local switch to 0x970400 time = 119 usec See also fctrace, page 144 ping, page 174 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 143...
  • Page 144: Fctrace

    Maximum number of hops before stopping the trace. If you omit [hop_count], 20 hops is used. Examples The following is an example of the command: fctrace 8/20q FC Switch#> fctrace 970400 970e00 hops 5 36 bytes from 0x970400 to 0x970e00, 5 hops max Domain Ingress Port WWN...
  • Page 145: Feature

    • The HP StorageWorks 8/20q Port Activation Upgrade LTU enables additional SFP ports in increments of four on the standard 12-port, single power supply 8/20q Fibre Channel Switch for totals of 16 or 20 ports. Examples The following is an example of the feature add command: 8/20q FC Switch #>...
  • Page 146: Firmware Install

    Examples The following is an example of the firmware install command using FTP: 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> firmware install The switch will be reset. This process will cause a disruption to I/O traffic.
  • Page 147 200 Type set to I. verbose Verbose mode off. This may take several seconds... The switch will now reset. Connection closed by foreign host. See also image, page 158 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 147...
  • Page 148: Group

    group Description Creates groups, manages membership within the group, and manages the membership of groups in security sets. Authority Admin session and a Security Edit session. For information about starting a Security Edit session, see the security command. The list, members, securitysets, and type operands are available without an Admin session.
  • Page 149: Port Group Member Attributes

    Port worldwide name for the N_Port device that would attach to the Member switch. Common Transport (CT) authentication. Enables (True) or disables CTAuthentication (False) authentication for MS group members. The default is False. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 149...
  • Page 150: Group Type Parameters

    Table 10 MS group member attributes (continued) Attribute Description The hash function to use to decipher the encrypted secret sent by the MS Hash group member. Hash values are MD5 or SHA-1. Hexadecimal string that is encrypted by the hash function for Secret authentication with MS group members.
  • Page 151 Otherwise, the switch will isolate because of an authentication failure. For more information about managing groups in security sets, see the securityset command. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 151...
  • Page 152 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> security edit 8/20q FC Switch (admin-security) #> group edit G1 10:00:00:c0:dd:00:90:a3 A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
  • Page 153 The following is an example of the group members command: 8/20q FC Switch #> group members group_1 Current list of members for Group: group_1 ---------------------------------- 10:00:00:c0:dd:00:71:ed 10:00:00:c0:dd:00:72:45 10:00:00:c0:dd:00:90:ef 10:00:00:c0:dd:00:b8:b7 See also security, page 188 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 153...
  • Page 154: Hardreset

    hardreset Description Resets the switch and performs a power-on self test (POST). This reset disrupts I/O traffic, activates the pending firmware, and clears the alarm log. To save the alarm log before resetting, see the set log command. Authority Admin session Syntax hardreset Notes To reset the switch without a power-on self test, see the reset command.
  • Page 155: Help

    If CONFIG_NAME is given and it exists, it gets edited; otherwise, it gets created. If it is not given, the currently active configuration is edited. Admin mode is required for this command. Usage: config edit [CONFIG_NAME] HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 155...
  • Page 156: History

    Enter ![partial command string] to re-execute a command that matches the command string. • Enter !! to re-execute the most recent command. Examples The following is an example of the history command: 8/20q FC Switch #> history 1 show switch 2 date 3 help set 4 history 8/20q FC Switch #>...
  • Page 157: Hotreset

    To correct this, close the QuickTools session and the browser window, then open a new QuickTools session. See also hardreset, page 154 reset, page 180 log, page 205 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 157...
  • Page 158: Image

    image Description Manages and installs switch firmware. Authority Admin session Syntax image cleanup fetch [account_name] [ip_address] [file_source] [file_destination] install list tftp [ip_address] [file_source] [file_destination] unpack [file] Operands cleanup Removes all firmware image files from the switch. All firmware image files are removed automatically each time the switch is reset.
  • Page 159 ******** ftp>bin ftp>put 8.0.4.xx.xx_epc ftp>quit 8/20q FC Switch (admin) $>image list 8/20q FC Switch (admin) $>image unpack 8.0.4.xx.xx_epc Image unpack command result: Passed See also firmware install, page 146 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 159...
  • Page 160: Ipsec

    Saves changes made during the current Ipsec Edit session. Examples The following is an example of the ipsec history command: 8/20q FC Switch #> ipsec history IPsec Database History ---------------------- ConfigurationLastEditedBy...
  • Page 161 8/20q FC Switch #> ipsec limits Configured (saved) IPsec Information IPsec Attribute Maximum Current --------------- ------- ------- MaxConfiguredSAs MaxConfiguredSPs See also ipsec association, page 162 ipsec list, page 165 ipsec policy, page 168 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 161...
  • Page 162: Ipsec Association

    ipsec association Description Creates and manages associations in the Security Association database. Authority Admin session and an Ipsec Edit session Syntax ipsec association copy [association_source] [association_destination] create [association] delete [association] edit [association] list [association] rename [association_old] [association_new] Operands copy [association_source] [association_destination] Creates a new association named [association_destination] and copies the configuration into it from the association given by [association_source].
  • Page 163 Renames the association given by [association_old] to the association given by [association_new]. You must enter the ipsec save command afterwards to save your changes. Dynamic associations cannot be renamed. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 163...
  • Page 164 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> ipsec edit 8/20q FC Switch (admin-ipsec) #> ipsec association create h2h-sh-sa A list of attributes with formatting will follow. Enter a value or simply press the ENTER key to skip specifying a value.
  • Page 165: Ipsec List

    Displays the configuration for all active policies. configured Displays the configuration for all user-defined policies. edited Displays the configuration for all policies that have been modified, but not saved. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 165...
  • Page 166 Summary ------- Security Association Count: Security Policy Count: The following is an example of the ipsec list association command: 8/20q FC Switch #> ipsec list association Active IPsec Information h2h-sh-sa Description: Host-to-host: switch->host Source: fe80::2c0:ddff:fe03:d4c1 Destination: fe80::250:daff:feb7:9d02 Protocol: esp...
  • Page 167 Direction: out Priority: 0 Action: ipsec Rule Protocol Mode Level ---- -------- --------- ----- transport require See also ipsec, page 160 ipsec association, page 162 ipsec policy, page 168 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 167...
  • Page 168: Ipsec Policy

    ipsec policy Description Manages policies in the Security Policy database. Authority Admin session and an Ipsec Edit session Syntax ipsec policy copy [policy_source] [policy_destination] create [policy] delete [policy] edit [policy] list [option] rename [policy_old] [policy_new] Operands copy [policy_source] [policy_destination] Creates a new policy named [policy_destination] and copies the configuration into it from the policy given by [policy_source].
  • Page 169 Displays the configuration for all active policies. configured Displays the configuration for all user-defined policies. edited Displays the configuration for all policies that have been modified, but not saved. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 169...
  • Page 170 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> ipsec edit 8/20q FC Switch (admin-ipsec) #> ipsec policy create h2h-sh-sp A list of attributes with formatting will follow. Enter a value or simply press the ENTER key to skip specifying a value.
  • Page 171: Lip

    The number of the port to be reinitialized. Ports are numbered beginning with 0. Examples The following is an example of the lip command: 8/20q FC Switch (admin) #> lip 2 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 171...
  • Page 172: Logout

    logout Description Closes the switch connection. Authority None Syntax logout Notes You can also press Control-D to close the switch connection. See also exit, page 142 logout, page 172 172 Command Reference...
  • Page 173: Passwd

    Press 'q' and the ENTER key to abort this command. account OLD password : ******** account NEW password (8-20 chars) : ******** please confirm account NEW password: ******** password has been changed. See also user, page 295 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 173...
  • Page 174: Ping

    IP address (version 6) or DNS host name of the switch you want to query. Examples The following is an example of a ping command that successfully communicated with another switch: 8/20q FC Switch #> ping 10.20.11.57 Ping command issued. Waiting for response... 8/20q FC Switch #>...
  • Page 175: Profile

    The minimum is 650. The maximum and default is 2,000,000. Subject of the e-mail; up to 64 characters EmailSubject HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 175...
  • Page 176 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> callhome edit 8/20q FC Switch (admin-callhome) #> profile create profile_1 A list of attributes with formatting and default values will follow. Enter a new value or simply press the ENTER key to accept the current value.
  • Page 177 8/20q FC Switch (admin-callhome) #> callhome save The CallHome database profiles will be saved and activated. Please confirm (y/n): [n] y See also callhome, page 129 capture, page 132 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 177...
  • Page 178 Description Displays current system process information. Authority None Syntax Examples The following is an example of the ps command: 8/20q FC Switch #> ps PPID %CPU %MEM TIME ELAPSED COMMAND 0.3 00:00:04 2-03:02:31 cns 0.3 00:00:06 2-03:02:31 ens 0.3 00:00:09 2-03:02:31 dlog 0.6 00:00:33...
  • Page 179: Quit

    Description Closes the switch connection. Authority None Syntax quit Notes You can also press Control-D to close the switch connection. See also exit, page 142 logout, page 172 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 179...
  • Page 180: Reset

    reset Description Resets the switch configuration parameters. If you omit the operand, the default is reset switch. Authority Admin session Syntax reset callhome config [config_name] factory ipsec port [port_list] radius security services snmp switch (default) system zoning Operands callhome Resets the Call Home database configuration to its default values. config [config_name] Resets the configuration given by [config_name] to the factory default values for switch, port, port threshold alarm, and zoning configuration as described in...
  • Page 181 Clears the zoning database and deactivates the active zoneset. The zoning configuration parameters (MergeAutoSave, DefaultZone, DiscardInactive) remain unchanged. See Table 20 for information about the zoning configuration parameters. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 181...
  • Page 182: Call Home Service Configuration Defaults

    Notes The following tables specify the various factory default settings: • Enter the show setup callhome command to display the Call Home database configuration. The default values are shown in Table • Enter the show config switch command to display the switch configuration. The default values are shown in Table •...
  • Page 183: Switch Configuration Defaults

    SymbolicName ALFairness False DeviceScanEnabled True ForceOfflineRSCN False ARB_FF False InteropCredit ExtCredit FANEnable True AutoPerfTuning True LCFEnable False MFSEnable False MSEnable True NoClose False IOStreamGuard Auto VIEnable False PDISCPingEnable True HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 183...
  • Page 184: Port Threshold Alarm Configuration Defaults

    Table 19 Port threshold alarm configuration defaults Parameter Default ThresholdMonitoringEnabled False CRCErrorsMonitoringEnabled True • RisingTrigger • FallingTrigger • SampleWindow DecodeErrorsMonitoringEnabled True • RisingTrigger • FallingTrigger • SampleWindow ISLMonitoringEnabled True • RisingTrigger • FallingTrigger • SampleWindow LoginMonitoringEnabled True • RisingTrigger • FallingTrigger •...
  • Page 185: Radius Configuration Defaults

    Retries SignPackets False Table 23 Switch services configuration defaults Parameter Default TelnetEnabled True SSHEnabled False GUIMgmtEnabled True SSLMgmtEnabled False EmbeddedGUIEnabled True SNMPEnabled True NTPEnabled False CIMEnabled True FTPEnabled True HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 185...
  • Page 186: Dns Host Name Configuration Defaults

    Table 23 Switch services configuration defaults Parameter Default MgmtServerEnabled True CallHomeEnabled True Table 24 DNS host name configuration defaults Parameter Default DNSClientEnabled False DNSLocalHostname <undefined> DNSServerDiscovery Static DNSServer1Address <undefined> DNSServer2Address <undefined> DNSServer3Address <undefined> DNSSearchListDiscovery Static DNSSearchList1 <undefined> DNSSearchList2 <undefined> DNSSearchList3 <undefined>...
  • Page 187: Ntp Server Configuration Defaults

    Table 29 Timer configuration defaults Parameter Default AdminTimeout InactivityTimeout Table 30 Security configuration defaults Parameter Default AutoSave True FabricBindingEnabled False PortBindingEnabled False See also hardreset, page 154 reset, page 180 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 187...
  • Page 188: Security

    security Description Opens a Security Edit session in which to manage the security database on a switch. Authority Admin session. The operands active, history, limits, and list are available without an Admin session. Syntax security active cancel clear edit history limits list restore...
  • Page 189 The following is an example of the security limits command: 8/20q FC Switch #> security limits Security Attribute Maximum Current [Name] ------------------ ------- ------- ------ MaxSecuritySets MaxGroups MaxTotalMembers 1000 MaxMembersPerGroup 1000 group1 group2 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 189...
  • Page 190 The following is an example of the security list command: 8/20q FC Switch #> security list Active Security Information SecuritySet Group GroupMember ----------- ----- ----------- No active securityset defined. Configured Security Information SecuritySet Group GroupMember ----------- ----- ----------- alpha group1 (ISL)
  • Page 191: Securityset

    [security_set_old] [security_set_new] Renames the security set given by [security_set_old] to the name given by [security_set_new]. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 191...
  • Page 192 LastActivatedBy Remote LastActivatedOn day month date time year The following is an example of the securityset groups command 8/20q FC Switch #> securityset groups alpha Current list of Groups for SecuritySet: alpha --------------------------------------- group1 (ISL) group2 (Port) The following is an example of the securityset list command 8/20q FC Switch #>...
  • Page 193: Set Alarm

    Disabling the display of alarms in the output stream allows command scripts to run without interruption. Examples The following is an example of the set alarm command: 8/20q FC Switch #> set alarm on HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 193...
  • Page 194: Set Beacon

    Table 32 Beacon state parameters Parameter Description Enables the flashing beacon. Disables the flashing beacon. Examples The following is an example of the set beacon command: 8/20q FC Switch #> set beacon on 194 Command Reference...
  • Page 195: Set Config Port

    RSCN message is delayed for 200 ms for locally attached devices and 400 ms for devices connected through other switches. The default is False. This parameter is ignored if IOStreamGuard is enabled. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 195...
  • Page 196 Table 33 Port configuration parameters (continued) Parameter Description Send ARB_FF (True) instead of IDLEs (False) on the loop. The default is ARB_FF False. Interoperability credit. The number of buffer-to-buffer credits per port. 0 InteropCredit means the default is unchanged. Default buffer-to-buffer credits are 16 per port.
  • Page 197 (see config activate command) before it can take effect. To discard this configuration use the config cancel command. See also config, page 136 show config port, page 235 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 197...
  • Page 198: Set Config Security

    8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> config edit 8/20q FC Switch (admin-config) #> set config security A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
  • Page 199: Set Config Security Portbinding

    This configuration must be saved (see config save command) and activated (see config activate command) before it can take effect. To discard this configuration use the config cancel command. See also show config security portbinding, page 237 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 199...
  • Page 200: Set Config Switch

    ID. The default is False. Descriptive name for the switch. The name can be up to 32 characters SymbolicName excluding #, semicolon (;), and comma (,). The default is 8/20q FC Switch. Resource Allocation Timeout Value. The number of milliseconds the...
  • Page 201 (decimal value, 100-100000 msec) [10000 E_D_TOV (decimal value, 10-20000 msec) [2000 PrincipalPriority (decimal value, 1-255) [254 ConfigDescription (string, max=64 chars) [Default Config] See also config, page 136 show config switch, page 238 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 201...
  • Page 202: Set Config Threshold

    set config threshold Description Sets the port alarm threshold parameters by which the switch monitors port performance and generates alarms. The changes you make with this command are not retained when you reset or power-cycle the switch unless you save them using the config save command. Authority Admin session and a Config Edit session Syntax set config threshold...
  • Page 203 This configuration must be saved (see config save command) and activated (see config activate command) before it can take effect. To discard this configuration use the config cancel command. See also show config threshold, page 239 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 203...
  • Page 204: Set Config Zoning

    8/20q FC Switch (admin) #> config edit The config named default is being edited. 8/20q FC Switch (admin-config) #> set config zoning A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
  • Page 205: Set Log

    [filter] Specifies the log events to automatically display on the screen according to the event severity levels given by [filter]. Table 40 describes the event display filter parameters. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 205...
  • Page 206: Event Display Filter Parameters

    Table 40 Event display filter parameters Parameter Description Critical severity-level events. The critical level describes events that are generally Critical disruptive to the administration or operation of the fabric, but require no action. Warning severity-level events. The warning level describes events that are Warn generally not disruptive to the administration or operation of the fabric, but are more important than the informative-level events.
  • Page 207 The alarm level describes events that are disruptive to the administration or operation of a fabric and require administrator intervention. Alarms are always logged and always displayed on the screen. See also show log, page 247 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 207...
  • Page 208: Set Pagebreak

    (active, list) Allows continuous display of information without a break. This is the default. Examples The following is an example of the set pagebreak command: 8/20q FC Switch #> set pagebreak on 8/20q FC Switch #> zone list Zone...
  • Page 209: Set Port

    Set Port State command. Therefore, to avoid unexpected results, do not manage port administrative states with QuickTools or Enterprise Fabric Management Suite and the CLI at the same time. See also show port, page 259 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 209...
  • Page 210: Set Setup Callhome

    set setup callhome Description Configures the Call Home database for managing e-mail notifications of fabric problems. Authority Admin session Syntax set setup callhome Prompts you in a line-by-line fashion to configure the Call Home database. Table 46 describes the Call Home configuration attributes. Table 46 Call Home service configuration attributes Parameter...
  • Page 211 (ex: admin3@company.com) ThrottleDupsEnabled (True / False) Do you want to save and activate this Callhome setup? (y/n): See also callhome, page 129 profile, page 175 set setup services, page 215 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 211...
  • Page 212: Set Setup Radius

    set setup radius Description Configures RADIUS servers on the switch. Authority Admin session Syntax set setup radius common server [server_number] Operands common Prompts you in a line-by-line fashion to configure attributes that are common to all RADIUS servers. To configure common and server-specific attributes, omit the operand. Table 47 describes the common RADIUS server configuration attributes.
  • Page 213 New Value (press ENTER to not specify value, 'q' to quit): DeviceAuthOrder 1=Local, 2=Radius, 3=RadiusLocal : UserAuthOrder 1=Local, 2=Radius, 3=RadiusLocal : TotalServers decimal value, 0-5 Do you want to save and activate this radius setup? (y/n): [n] HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 213...
  • Page 214 The following is an example of the set setup radius server command: 8/20q FC Switch (admin) #> set setup radius server 1 A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
  • Page 215: Set Setup Services

    QuickTools enables you to point at a switch with an internet browser and manage the switch. This parameter is the master control for the set setup system command parameter, EmbeddedGUIEnabled. The default is True. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 215...
  • Page 216 CallHomeEnabled controls e-mail notification. The default is True. NOTE: The 8/20q Fibre Channel Switch Call Home service provides an e-mail notification capability for the switch. This service has no relationship with the HP Call Home feature, which notifies HP services.
  • Page 217 (True / False) [True ] CallHomeEnabled (True / False) [True ] Do you want to save and activate this services setup? (y/n): [n] See also show setup services, page 267 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 217...
  • Page 218: Set Setup Snmp

    set setup snmp Description Configures SNMP on the switch. Authority Admin session Syntax set setup snmp common trap [trap_number] Operands common Prompts you in a line-by-line fashion to change SNMP configuration parameters that are common for all traps. For each parameter, enter a new value or press Enter to accept the current value. To configure common parameters and trap parameters, omit the common operand.
  • Page 219: Snmp Trap Configuration Parameters

    WriteCommunity (string, max=32 chars) : AuthFailureTrap (True / False) ProxyEnabled (True / False) SNMPv3Enabled (True / False) Do you want to save and activate this snmp setup? (y/n): [n] HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 219...
  • Page 220 The following is an example of the set setup snmp trap command: 8/20q FC Switch (admin) #> set setup snmp trap 1 A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
  • Page 221: Set Setup System

    A suffix that is appended to unqualified host names to extend the DNSSearchList1 DNS search. You can specify up to five search lists (or suffixes). DNSSearchList2 DNSSearchList3 DNSSearchList4 DNSSearchList5 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 221...
  • Page 222: Ipv4 Ethernet Configuration Parameters

    ipv4 Prompts you in a line-by-line fashion to change the switch IPv4 Ethernet configuration parameters described in Table 53. To configure all system parameters, omit the operand. For each parameter, enter a new value or press Enter to accept the current value. NOTE: Changing the IP address will terminate all Ethernet management sessions.
  • Page 223: Event Logging Configuration Parameters

    Prompts you in a line-by-line fashion to change the timer configuration parameters described in Table 57. To configure all system parameters, omit the operand. For each parameter, enter a new value or press Enter to accept the current value. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 223...
  • Page 224: Timer Configuration Parameters

    The default is 0, the maximum is 1440. Examples The following is an example of the set setup system dns command: 8/20q FC Switch (admin) #> set setup system dns A list of attributes with formatting and current values will follow.
  • Page 225 EthIPv6NetworkEnable (True / False) EthIPv6Discovery (1=Static, 2=Dhcpv6, 3=Ndp) EthIPv6NetworkAddress (IPv6 Address/Mask Length format) : EthIPv6GatewayAddress (IPv6 Address) Do you want to save and activate this system setup? (y/n): [n] HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 225...
  • Page 226 The following is an example of the set setup system logging command: 8/20q FC Switch (admin) #> set setup system logging A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
  • Page 227 (dec value 0-1440 minutes, 0=never) : InactivityTimeout (dec value 0-1440 minutes, 0=never) : Do you want to save and activate this system setup? (y/n): [n] See also show setup system, page 269 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 227...
  • Page 228: Set Switch State

    QuickTools or Enterprise Fabric Management Suite and the CLI at the same time. Examples The following is an example of the set switch command: 8/20q FC Switch #>admin start 8/20q FC Switch (admin) #>set switch state offline See also show switch, page 272...
  • Page 229: Set Timezone

    Press ENTER for more options or 'q' to make a selection. Enter selection (or 'q' to quit): america/north_dakota America/North_Dakota/Center Enter selection (or 'q' to quit): america/north_dakota/center See also date, page 141 show timezone, page 277 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 229...
  • Page 230: Show About

    show about Description Displays introductory information about the operational attributes of the switch. This command is equivalent to the show version command. Authority None Syntax show about Table 59 describes the information returned by the show about command. Table 59 Show about display entries Attribute Description...
  • Page 231 00:c0:dd:00:71:ee WorldWideName 10:00:00:c0:dd:00:71:ed SerialNumber FAM033100024 SymbolicName 8/20q FC Switch ActiveSWVersion V8.0.4.xx.xx ActiveTimestamp day month date time year POSTStatus Passed LicensedPorts SwitchMode Full Fabric See also show version, page 280 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 231...
  • Page 232: Show Alarm

    ID 99] [4][Sun Jan 21 07:59:29.367 UTC 2007][A][1004.0030][Topology change, lost route to switch with domain ID 101] The following is an example of the show alarm settings command: 8/20q FC Switch #> show alarm settings Current settings for alarm -------------------------- display...
  • Page 233: Show Broadcast

    Authority None Syntax show broadcast Examples The following is an example of the show broadcast command: 8/20q FC Switch #> show broadcast Group Member Ports ISL Ports ----- ------------ --------- HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 233...
  • Page 234: Show Chassis

    Description Displays chassis component status and temperature. Authority None Syntax show chassis Examples The following is an example of the show chassis command. 8/20q FC Switch #> show chassis Chassis Information ------------------- BoardTemp (1) - Degrees Celsius BoardTemp (2) - Degrees Celsius...
  • Page 235: Show Config Port

    ALFairness False DeviceScanEnabled True ForceOfflineRSCN False ARB_FF False InteropCredit ExtCredit FANEnabled True AutoPerfTuning True MSEnabled True NoClose False IOStreamGuard Auto PDISCPingEnable True See also set config port, page 195 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 235...
  • Page 236: Show Config Security

    Description Displays the security database configuration parameters. Authority None Syntax show config security Examples The following is an example of the show config security command: 8/20q FC Switch #> show config security Configuration Name: default ------------------- Switch Security Configuration Information -----------------------------------------...
  • Page 237: Show Config Security Portbinding

    No port binding entries found. False No port binding entries found. False No port binding entries found. False No port binding entries found. See also set config security portbinding, page 199 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 237...
  • Page 238: Show Config Switch

    Description Displays the switch configuration parameters. Authority None Syntax show config switch Examples The following is an example of the show config switch command: 8/20q FC Switch #> show config switch Configuration Name: default ------------------- Switch Configuration Information -------------------------------- AdminState...
  • Page 239: Show Config Threshold

    FallingTrigger SampleWindow ISLMonitoringEnabled True RisingTrigger FallingTrigger SampleWindow LoginMonitoringEnabled True RisingTrigger FallingTrigger SampleWindow LogoutMonitoringEnabled True RisingTrigger FallingTrigger SampleWindow LOSMonitoringEnabled True RisingTrigger FallingTrigger SampleWindow See also set config threshold, page 202 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 239...
  • Page 240: Show Config Zoning

    Description Displays zoning configuration parameters for the switch. Authority None Syntax show config zoning Examples The following is an example of the show config zoning command: 8/20q FC Switch #> show config zoning Configuration Name: default ------------------- Zoning Configuration Information --------------------------------...
  • Page 241: Show Domains

    Domain 100 (0x64) WWN = 10:00:00:c0:dd:00:ba:68 Domain 101 (0x65) WWN = 10:00:00:60:df:22:2e:06 Domain 102 (0x66) WWN = 10:00:00:c0:dd:00:90:ef Domain 103 (0x67) WWN = 10:00:00:60:69:50:0b:6c Domain 104 (0x68) WWN = 10:00:00:c0:dd:00:b8:b7 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 241...
  • Page 242: Show Donor

    Description Displays list of current donor and extended credit configuration for all ports. Authority None Syntax show donor Examples The following is an example of the show donor command: 8/20q FC Switch #> show donor Port Config Ext Credit Max Credit Donated Member of Valid Groups to Number...
  • Page 243: Show Env

    Good 1.50 1.31 1.68 1.8V_ANALOG Good 1.78 1.58 2.02 1.8V Good 1.79 1.60 1.99 2.5V_ANALOG Good 2.40 2.08 2.84 See also show temp, page 275 show voltage, page 282 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 243...
  • Page 244: Show Fabric

    HostName <undefined> EthIPv4Address 10.20.116.133 EthIPv6Address <undefined> * indicates principal switch The following is an example of the show fabric brief command: 8/20q FC Switch #> show fabric brief Domain SymbolicName ------ ------------ *16 (0x10) 10:00:00:c0:dd:00:77:81 swsb1.11 17 (0x11) 10:00:00:c0:dd:00:6a:2d sw12 18 (0x12) 10:00:00:c0:dd:00:c3:04 sw.160...
  • Page 245: Show Fdmi

    HardwareVersion FC5010409-10 DriverVersion 8.2.3.10 Beta 2 (W2K VI) OptionRomVersion 1.21 FirmwareVersion 03.02.13. OperatingSystem SunOS 5.8 MaximumCTPayload 2040 NumberOfPorts Port 21:01:00:e0:8b:27:aa:bc SupportedFC4Types SupportedSpeed 2Gb/s CurrentSpeed 2Gb/s MaximumFrameSize 2048 OSDeviceName HostName HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 245...
  • Page 246: Show Interface

    Description Displays the status of the active network interfaces. Authority None Syntax show interface Examples The following is an example of the show interface command: 8/20q FC Switch #> show interface eth0 Link encap:Ethernet HWaddr 00:C0:DD:00:00:27 inet addr:10.20.116.131 Bcast:10.20.116.255 Mask:255.255.255.0...
  • Page 247: Show Log

    Zoning conflict events display [filter] Displays log events on the screen according to the component or severity level filter given by [filter].Table 61 describes the event log display filter parameters. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 247...
  • Page 248: Event Log Display Filter Parameters

    Examples The following is an example of the show log component command: 8/20q FC Switch #> show log component Current settings for log ------------------------...
  • Page 249 [333][day month date time year][I][Eport Port: 0/8][Sending LSU oxid=0xc:type=1] [334][day month date time year][I][Eport Port: 0/8][Send Zone Merge Request] [335][day month date time year][I][Eport Port: 0/8][LSDB Xchg timer set] See also log, page 205 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 249...
  • Page 250: Show Lsdb

    Description Displays link state database information, Authority None Syntax show lsdb Examples The following is an example of the show lsdb command: 8/20q FC Switch #> show lsdb Link State Database Information ------------------------------- LsID 34: Age=1176, Incarnation=0x800000e5 NeighborDomain=36, LocalPort=6, RemotePort=7, Cost=500...
  • Page 251: Show Media

    Displays transceiver information for all ports. installed Displays transceiver information for all ports that have transceivers installed. Notes Table 62 describes the transceiver information in the show media display. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 251...
  • Page 252: Transceiver Information

    Table 62 Transceiver information Entry Description Media physical variant. The variant indicates speed, media, MediaType transmitter, and distance. The media designator may be M5 (multimode 50 micron), M6 (multimode 62.5 micron), or MX. MX indicates that the media supports both multimode 50 and 62.5 micron.
  • Page 253 Normal HighWarning Normal Normal LowAlarm HighAlarm 95.00 3.90 17.00 0.637 1.264 HighWarning 90.00 3.70 14.00 0.637 0.791 LowWarning -20.00 2.90 2.00 0.082 0.028 LowAlarm -25.00 2.70 1.00 0.073 0.019 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 253...
  • Page 254: Show Mem

    This operand will display memory activity updates until [count] is reached–it cannot be interrupted. Therefore, avoid using large values for [count]. Examples The following is an example of the show mem command: 8/20q FC Switch #> show mem procs -----------memory---------- ---swap-- -----io---- --system-- ----cpu---- swpd...
  • Page 255: Show Ns

    8/20q FC Switch #> show ns 1301e1 Port ID: 1301e1 -------- PortType PortWWN 21:00:00:20:37:73:13:69 SymbolicPortName (NULL) NodeWWN 20:00:00:20:37:73:13:69 SymbolicNodeName (NULL) NodeIPAddress diskarray7.anycompany.com ClassOfService PortIPAddress FabricPortName 20:01:00:c0:dd:00:bc:56 FC4Type FC4Desc (NULL) HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 255...
  • Page 256: Show Pagebreak

    Operands The pagebreak setting limits the display of information to 20 lines (ON) or allows the continuous display of information without a break (OFF). Examples The following is an example of the show pagebreak command: 8/20q FC Switch #> show pagebreak current setting: ON See also...
  • Page 257: Show Perf

    0 2 10-15 specifies ports 0, 2, 10, 11, 12, 13, 14, and 15. If you omit [port_list], the command displays performance data for ports 0–15. Type q and press Enter to stop the display. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 257...
  • Page 258 136M 136M 136M 136M 136M 136M The following is an example of the show perf byte command: 8/20q FC Switch #> show perf byte Displaying bytes/sec (total)... (Press any key to stop display) ------------------------------------------------------------------------------- 137M 58K 137M 136M 58K 136M...
  • Page 259: Show Port

    2 and class 3 F_BSY frames generated by this port in response to incoming frames. This usually indicates a busy condition on the fabric or N_Port that is preventing delivery of this frame. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 259...
  • Page 260 Table 64 Show port display entries (continued) Parameter Description Number of frames received there were no available credits Flowerrors Number of frames from devices that were rejected FReject Invalid CRC detected InvalidCRC Invalid destination address detected InvalidDestAddr I/O StreamGuard status IOStreamGuard Number of optical link failures detected by this port.
  • Page 261: Show Port Display Entries

    Total number of words issued by this port TotalTxWords Number of link resets issued by this port TxLinkResets Number of offline sequences issued by this port TxOfflineSeq Transmitter status: True, False. XmitterEnabled HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 261...
  • Page 262 Examples The following is an example of the show port command: 8/20q FC Switch #> show port 1 Port Number: 1 ------------ AdminState Online OperationalState Offline AsicNumber PerfTuningMode Normal AsicPort PortID 3a0100 ConfigType PortWWN 20:01:00:c0:dd:0d:4f:08 POSTFaultCode 00000000 RunningType Unknown POSTStatus...
  • Page 263: Show Postlog

    Time: day mmm dd hh:mm:ss yyyy Sequence Number: Test: TEST_SUITE_POST (0x13) Subtest: TEST_STATIC_PORTADDR (0x72) Fault Code: DIAGS_ERR_CPORT_VERIFY (0x34) Loops: Blade/Asic: Register Address: 0x00000005 Received Data: 0x0082202b Expected Data: 0x00a2202b HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 263...
  • Page 264: Show Setup Callhome

    Description Displays the Call Home database configuration. NOTE: The 8/20q Fibre Channel Switch Call Home service provides an e-mail notification capability for the switch. This service has no relationship with the HP Call Home feature, which notifies HP services.
  • Page 265: Show Setup Mfg

    Tuesday, September 25, 2007 11:23 ChassisPartNumber HSTNM-N015 ChassisSerialNumber 0729C00137 CPUBoardSerialNumber 0729c00137 LicensedPorts MACAddress 00:c0:dd:0d:53:e7 PlanarPartNumber 31894-00 SwitchSymbolicName 8/20q FC Switch SwitchWWN 10:00:00:c0:dd:0d:53:e7 SystemDescription HP StorageWorks 8/20q Fibre Channel Switch SystemObjectID 1.3.6.1.4.1.3873.1.11 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 265...
  • Page 266: Show Setup Radius

    8/20q FC Switch #> show setup radius common Radius Information ------------------ DeviceAuthOrder Local UserAuthOrder Local TotalServers The following is an example of the show setup radius server command: 8/20q FC Switch #> show setup radius server 2 Radius Information ------------------ Server: 2 ServerIPAddress bacd:1234:bacd:1234:bacd:1234:bacd:1234 ServerUDPPort 1812 DeviceAuthServer...
  • Page 267: Show Setup Services

    TelnetEnabled True SSHEnabled False GUIMgmtEnabled True SSLEnabled False EmbeddedGUIEnabled True SNMPEnabled True NTPEnabled True CIMEnabled True FTPEnabled True MgmtServerEnabled True CallHomeEnabled True See also set setup services, page 215 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 267...
  • Page 268: Show Setup Snmp

    HP StorageWorks 8/20q FC Switch ObjectID 1.3.6.1.4.1.3873.1.11 AuthFailureTrap True ProxyEnabled True SNMPv3Enabled False The following is an example of the show setup snmp trap command: 8/20q FC Switch #> show setup snmp trap 1 SNMP Information ---------------- Trap1Enabled False Trap1Address 10.0.0.254 Trap1Port Trap1Severity warning...
  • Page 269: Show Setup System

    8/20q FC Switch #> show setup system dns System Information ------------------ DNSClientEnabled False DNSLocalHostname <undefined> DNSServerDiscovery Static DNSServer1Address <undefined> DNSServer2Address <undefined> DNSServer3Address <undefined> DNSSearchListDiscovery Static DNSSearchList1 <undefined> DNSSearchList2 <undefined> DNSSearchList3 <undefined> DNSSearchList4 <undefined> DNSSearchList5 <undefined> HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 269...
  • Page 270 The following is an example of the show setup system ipv4 command: 8/20q FC Switch #> show setup system ipv4 System Information ------------------ EthIPv4NetworkEnable True EthIPv4NetworkDiscovery Static EthIPv4NetworkAddress 10.20.11.32 EthIPv4NetworkMask 255.255.252.0 EthIPv4GatewayAddress 10.20.8.254 The following is an example of the show setup system ipv6 command: 8/20q FC Switch #>...
  • Page 271: Show Steering

    Examples The following is an example of the show steering command: 8/20q FC Switch #> show steering 35 DomainID DefaultOutPort InPort OutPort -------- -------------- ------ ------- 16/18/16/18 18/16/18/16 16/18/16/18 16/18/16/18 18/16/18/16 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 271...
  • Page 272: Show Switch

    show switch Description Displays switch operational information. Authority None Syntax show switch Notes Table 65 describes the switch operational parameters. Table 65 Switch operational parameters Parameter Description Descriptive name for the switch SymbolicName Switch worldwide name SwitchWWN Programmable Read-only Memory (PROM) boot version BootVersion Number of port buffer credits available to recipient ports CreditPool...
  • Page 273 PrincipalSwitchRole False POSTFaultCode 00000000 POSTStatus Passed TestFaultCode 00000000 TestStatus NeverRun BoardTemp (1) - Degrees Celsius SwitchTemperatureStatus Normal See also set config switch, page 200 set switch state, page 228 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 273...
  • Page 274: Show System

    Description Displays the operational status of the Ethernet and DNS host name configuration parameters. Authority None Syntax show system Examples The following is an example of the show system command: 8/20q FC Switch #> show system Assigned System Network Information ----------------------------------- Hostname <undefined>...
  • Page 275: Show Temp

    Current High Warn High Alarm ------ ----------- ------ ------- --------- ---------- BOARD Normal DS1780 Normal MAX1617 Normal ASIC Normal See also show env, page 243 show voltage, page 282 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 275...
  • Page 276: Show Testlog

    Description Displays the contents of the diagnostic field test log file. Authority None Syntax show testlog show test log Examples The following is an example of the show testlog command: 8/20q FC Switch #> show testlog Queue: Sequence Count: 1000 Success Count: 1000...
  • Page 277: Show Timezone

    Description Displays the current time zone setting. Authority None Syntax show timezone Examples The following is an example of the show timezone command: 8/20q FC Switch #> show timezone America/Chicago See also timezone, page 229 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 277...
  • Page 278: Show Topology

    Operands [port_number] Displays the devices connected to the port given by [port_number]. Examples The following is an example of the show topology command: 8/20q FC Switch #> show topology Unique ID Key ------------- A = ALPA, D = Domain ID,...
  • Page 279: Show Users

    The following is an example of the show users brief command: 8/20q FC Switch #> show users brief User Client ---- ------ cim@OB-session1 snmp@IB-session2 Unknown snmp@OB-session3 Unknown admin@OB-session5 10.33.21.27 See also user, page 295 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 279...
  • Page 280: Show Version

    show version Description Displays introductory information about the operational attributes of the switch. This command is equivalent to the show about command. Authority None Syntax show version Notes Table 66 describes the information returned by the show version command. Table 66 Show version display entries Attribute Description...
  • Page 281 00:c0:dd:00:71:ee WorldWideName 10:00:00:c0:dd:00:71:ed SerialNumber FAM033100024 SymbolicName 8/20q FC Switch ActiveSWVersion V8.0.4.xx.xx ActiveTimestamp day month date time year POSTStatus Passed LicensedPorts SwitchMode Full Fabric See also show about, page 230 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 281...
  • Page 282: Show Voltage

    Description Displays voltage information. Authority None Syntax show voltage Examples 8/20q FC Switch #? show voltage Voltage Sensors: Sensor Description Status Current Low Alarm High Alarm ------ ----------- ------ ------- --------- ---------- 2.5V Good 2.50 2.20 2.80 1.25V Good 1.24...
  • Page 283: Shutdown

    Description Terminates all data transfers on the switch at convenient points and closes the switch connection. Always power-cycle the switch after entering this command. Authority Admin session Syntax shutdown Notes When the shutdown is complete, the Heartbeat LED is extinguished. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 283...
  • Page 284: Snmpv3user

    snmpv3user Description Manages SNMP version 3 user accounts on the switch. Authority Admin session except for the list operand Syntax snmpv3user delete [account] edit list Operands Creates an SNMP version 3 user account, prompting you for the parameters that are described Table Table 67 SNMP version 3 user account parameters...
  • Page 285 (0=ReadOnly, 1=ReadWrite) [ReadWrite ] : 1 Authentication (True/False) [True ] : f Do you want to save and activate this setup ? (y/n): [n] y SNMPV3 user account edited and activated. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 285...
  • Page 286 The following is an example of the snmpv3user list command: 8/20q FC Switch #> snmpv3user list Username Group AuthType PrivType -------- ----- -------- -------- snmpuser1 ReadWrite See also set setup snmp, page 218 show setup snmp, page 268 286 Command Reference...
  • Page 287: Test Cancel

    Examples The following example cancels the test running on port 15: 8/20q FC Switch (admin) #> test cancel port 15 See also test port, page 288 test status, page 290 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 287...
  • Page 288: Test Port

    test port Description Tests individual ports using an offline or online test. Authority Admin session Syntax test port [port_number] offline [loopback_type] online Operands [port_number] The port to be tested. [port_number] can be 0–19. offline [loopback_type] Performs an offline test of the type given by [loopback_type] on the port given by [port_number]. Use the set port command to place the port in the diagnostics state before running the test.
  • Page 289 8/20q FC Switch (admin) #> Test for port 1 Passed. See also test cancel, page 287 test status, page 290 test switch, page 292 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 289...
  • Page 290: Test Status

    Display test status for the port given by [port_number]. [port_number] can be 0–19. switch Display test status for the switch: Passed, Failed, NeverRun. Examples The following is an example of the test status port command: 8/20q FC Switch (admin) #> test status port 1 Port Test Test...
  • Page 291 See also test cancel, page 287 test port, page 288 test switch, page 292 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 291...
  • Page 292: Test Switch

    test switch Description Tests all ports on the switch using a connectivity test, an offline test, or an online test. Authority Admin session Syntax test switch connectivity [loopback_type] offline [loopback_type] online Operands connectivity [loopback_type] Performs a connectivity test of the type given by [loopback_type] on all switch ports. You must place the switch in the diagnostics state using the set switch state command before starting the test.
  • Page 293 LoopForever (True / False) [False Do you want to start the test? (y/n) [n] y See also test cancel, page 287 test status, page 290 test switch, page 292 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 293...
  • Page 294: Uptime

    Authority None Syntax uptime Examples The following is an example of the uptime command: 8/20q FC Switch #> uptime Elapsed up time : 0 day(s), 2 hour(s), 28 min(s), 44 sec(s) Reason last reset: NormalReset 294 Command Reference...
  • Page 295: User

    (admin authority = False, expires in < 50 days) gregj (admin authority = True , expires in < 100 days) fred (admin authority = True , never expires) HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 295...
  • Page 296 100 days? Please confirm (y/n): [n] y The following is an example of the user delete command: 8/20q FC Switch (admin) #> user del user3 The user account will be deleted. Please confirm (y/n): [n] y The following is an example of the user edit command: 8/20q FC Switch (admin) #>...
  • Page 297: Whoami

    Examples The following is an example of the whoami command: 8/20q FC Switch #> whoami User name : admin@session2 Switch name : HP StorageWorks 8/20q Fibre Channel Switch Switch domain ID: 21 (0x15) HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 297...
  • Page 298: Zone

    zone Description Manages zones and zone membership on a switch. Authority Admin session and a Zoning Edit session. See the zoning edit command. The list, members, and zonesets operands are available without an Admin session. Syntax zone add [zone] [member_list] list members [zone] orphans...
  • Page 299 Current List of Members for Zone: wwn_b0241f --------------------------------- 50:06:04:82:bf:d2:18:c2 50:06:04:82:bf:d2:18:d2 21:00:00:e0:8b:02:41:2f The following is an example of the zone orphans command: 8/20q FC Switch #> zone orphans Current list of orphan zones ---------------------------- zone3 zone4 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 299...
  • Page 300 The following is an example of the zone zonesets command: 8/20q FC Switch #> zone zonesets zone1 Current List of ZoneSets for Zone: zone1 ---------------------------------- zone_set_1 See also zoneset, page 301 zoning edit, page 308 300 Command Reference...
  • Page 301: Zoneset

    <space> to delimit zone names in [zone_list]. If [zone_set] is the active zoneset, the zone will not be removed until the zoneset has been deactivated. You must enter the zoning save command to save your changes. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 301...
  • Page 302 8/20q FC Switch #> zoneset list Current List of ZoneSets ------------------------ alpha beta The following is an example of the Zoneset Zones command: 8/20q FC Switch #> zoneset zones ssss Current List of Zones for ZoneSet: ssss ---------------------------------- zone1 zone2 zone3...
  • Page 303: Zoning Active

    This command will overwrite the configured zoning database in NVRAM. Please confirm (y/n): [n] y The active zoning database has been saved. See also zone, page 298 zoneset, page 301 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 303...
  • Page 304: Zoning Cancel

    Examples The following is an example of the zoning cancel command: 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> zoning edit 8/20q FC Switch (admin-zoning) #> zoning cancel Zoning edit mode will be canceled. Please confirm (y/n): [n] y...
  • Page 305: Zoning Clear

    8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> zoning edit 8/20q FC Switch (admin-zoning) #> zoning clear 8/20q FC Switch (admin-zoning) #> zoning save See also zoning save, page 315 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 305...
  • Page 306: Zoning Configured

    Description Displays the contents of the non-volatile zoning database. Authority None Syntax zoning configured Examples The following is an example of the zoning configured command: 8/20q FC Switch #> zoning configured Configured (saved in NVRAM) Zoning Information ZoneSet Zone ZoneMember...
  • Page 307: Zoning Delete Orphans

    8/20q FC Switch (admin) #> zoning delete orphans This command will remove all zonesets, zones, and aliases that are not currently active. Please confirm (y/n): [n] y 8/20q FC Switch (admin) #> zoning save HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 307...
  • Page 308: Zoning Edit

    Examples The following is an example of the zoning edit command: 8/20q FC Switch #> admin start 8/20q FC Switch (admin) #> zoning edit 8/20q FC Switch (admin-zoning) #> 8/20q FC Switch (admin-zoning) #> zoning save The changes have been saved; however, they must be activated before they can take effect -- see Zoneset Activate command.
  • Page 309: Zoning Edited

    Examples The following is an example of the zoning edited command: 8/20q FC Switch (admin-zoning) #> zoning edited Edited (unsaved) Zoning Information ZoneSet Zone ZoneMember ------- ---- ---------- 10:00:00:c0:dd:00:b9:f9 10:00:00:c0:dd:00:b9:fa See also zoning configured, page 306 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 309...
  • Page 310: Zoning History

    • Checksum for the zoning database Authority None Syntax zoning history Examples The following is an example of the zoning history command: 8/20q FC Switch #> zoning history Active Database Information --------------------------- ZoneSetLastActivated/DeactivatedBy Remote ZoneSetLastActivated/DeactivatedOn day mon date hh:mm:ss yyyy...
  • Page 311: Zoning Limits

    2,000. Each instance of a zone in a zoneset counts toward this maximum. Maximum number of members in a zone is 2,000. MaxMembersPerZone Maximum number of members in an alias is 2,000. MaxMembersPerAlias HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 311...
  • Page 312: Zoning List

    Description Lists all zoning definitions, including the applicable zoning database. Authority None Syntax zoning list Examples The following is an example of the zoning list command: 8/20q FC Switch #> zoning list Active (enforced) ZoneSet Information ZoneSet Zone ZoneMember --------------------------------...
  • Page 313: Zoning Merged

    This command will overwrite the configured zoning database in NVRAM. Please confirm (y/n): [n] y The merged zoning database has been saved. See also zoning configured, page 306 zoning edited, page 309 zoning list, page 312 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 313...
  • Page 314: Zoning Restore

    zoning restore Description Restores the volatile zoning database with the contents of the non-volatile zoning database. If the MergeAutoSave parameter is False (see Table 20), you can use this command to revert changes to the merged zoneset that were propagated from another switch in the fabric through zoneset activation or merging fabrics.
  • Page 315: Zoning Save

    8/20q FC Switch (admin-zoning) #> zoning save The changes have been saved; however, they must be activated before they can take effect -- see zoneset activate command. See also zoning edit, page 308 HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 315...
  • Page 316 316 Command Reference...
  • Page 317: Document Conventions

    (http://welcome.hp.com/country/us/en/contact_us.html). To contact HP by phone, call: 1-800-HP-INVENT (1-800-474-6836). This service is available 24 hours a day, 7 days a week. For continuous quality improvement, calls may be recorded or monitored. HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 317...
  • Page 318 In addition to this guide, see the following documents for this product: • HP StorageWorks 8/20q and SN6000 Fibre Channel Switch Quick Start Installation Instructions • HP StorageWorks 8/20q and SN6000 Fibre Channel Switch Rack Mount Kit Quick Start Installation Instructions • HP StorageWorks Simple SAN Connection Manager User Guide •...
  • Page 319 For more information about the HP Customer Self Repair program, contact your local service provider. For the North American program, visit the HP website (http://www.hp.com/go/selfrepair). HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 319...
  • Page 320 320 Support and Other Resources...
  • Page 321 Rename example Challenge Handshake Authentication Protocol association CHAP See Challenge Handshake Authentication copy Protocol create chassis status delete Clone Config Port command modify example rename command authentication entry HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 321...
  • Page 322 examples device notes access reference security configuration rules and conventions DHCP See Dynamic Host Configuration Protocol syntax discovery method command-line completion display control common transport authentication disruptive activation Config command DNS - See Domain Name System Activate example document Backup example conventions Copy example documentation, HP website...
  • Page 323 Ipsec Association command managing Copy example membership Create example modifying member Delete example Edit example port Rename example removing from security set Ipsec command removing members Clear example HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 323...
  • Page 324 Ipsec History command example name server information Ipsec Limits command network example configuration Ipsec List command discovery example enable Ipsec Policy command gateway address Copy example interfaces Create example IP address Delete example mask Edit example resetting configuration Rename example Network Time Protocol ISL See Inter-Switch Link client...
  • Page 325 Callhome example saving changes Config example security policy Factory example database IP Security example information Ipsec example security set Port example activating Security example active SNMP example HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 325...
  • Page 326 adding member group NTP service configured SNMP service copying SSH and SSL services creating Set Setup SNMP command deactivating Set Setup System command deleting Ethernet configuration description NTP configuration displaying remote logging managing Timers example membership Set Switch State command removing groups Set Timezone command renaming...
  • Page 327 Trivial File Transfer Protocol configuration parameters connectivity test date and time UDP See User Datagram Protocol displaying test status Universal Time hard reset upgrade licenses Uptime command logging in example HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 327...
  • Page 328 user account Copy example adding Create example configuration Delete example deleting Members example displaying Remove example list Rename example logged in Zonesets example modifying zone set password activating user administration active User command adding member zone Accounts example configured Add example copying Delete example creating...
  • Page 329 Zoning Edit command example Zoning Edited command Zoning History command example Zoning Limits command example Zoning List command example Zoning Merged command Capture example Zoning Restore command Zoning Save command HP StorageWorks 8/20q Fibre Channel Switch Command Line Interface Guide 329...
  • Page 330 330 Index...

Comments to this Manuals

Symbols: 0
Latest comments:
