IMPORTANT When a layer state is saved from the model space, the global layer properties for color, linetype, lineweight,
and plot style are saved in the layer state. When the layer state is restored to the model space, the global layer properties
will be restored as the global layer properties of the drawing. If the layer state is restored to a layout viewport, you can
choose if the settings from the saved layer state are restored either as the global layer properties for the drawing, or as
viewport overrides for that specific viewport.
Plot/Non Plot
New VP Freeze
Saving a Layer State in a Layout Viewport:
Layer name
On/Off
Freeze/Thaw
Lock
Color
Linetype
Lineweight
Plot style
IMPORTANT When a layer state is saved from a layout viewport, and the viewport has overrides for color, linetype,
lineweight, or plot style, the override settings are saved as the viewport properties. When the layer state is restored to a
layout viewport, you can choose if the settings from the saved layer state are restored either as the global layer properties
for the drawing, or as viewport overrides for that specific viewport. When the layer state is restored to the model space
of a drawing, the saved layer settings will be restored as global layer properties to the model space.
Plot/Non Plot
New VP Freeze
1 Verify that you are in the viewport - either model space or a layout - which you want to save as a layer
state.
2 Click Format menu
3 Verify that all layers have the desired states and properties you want to save in a layer state. If necessary,
make adjustments, and click Apply.

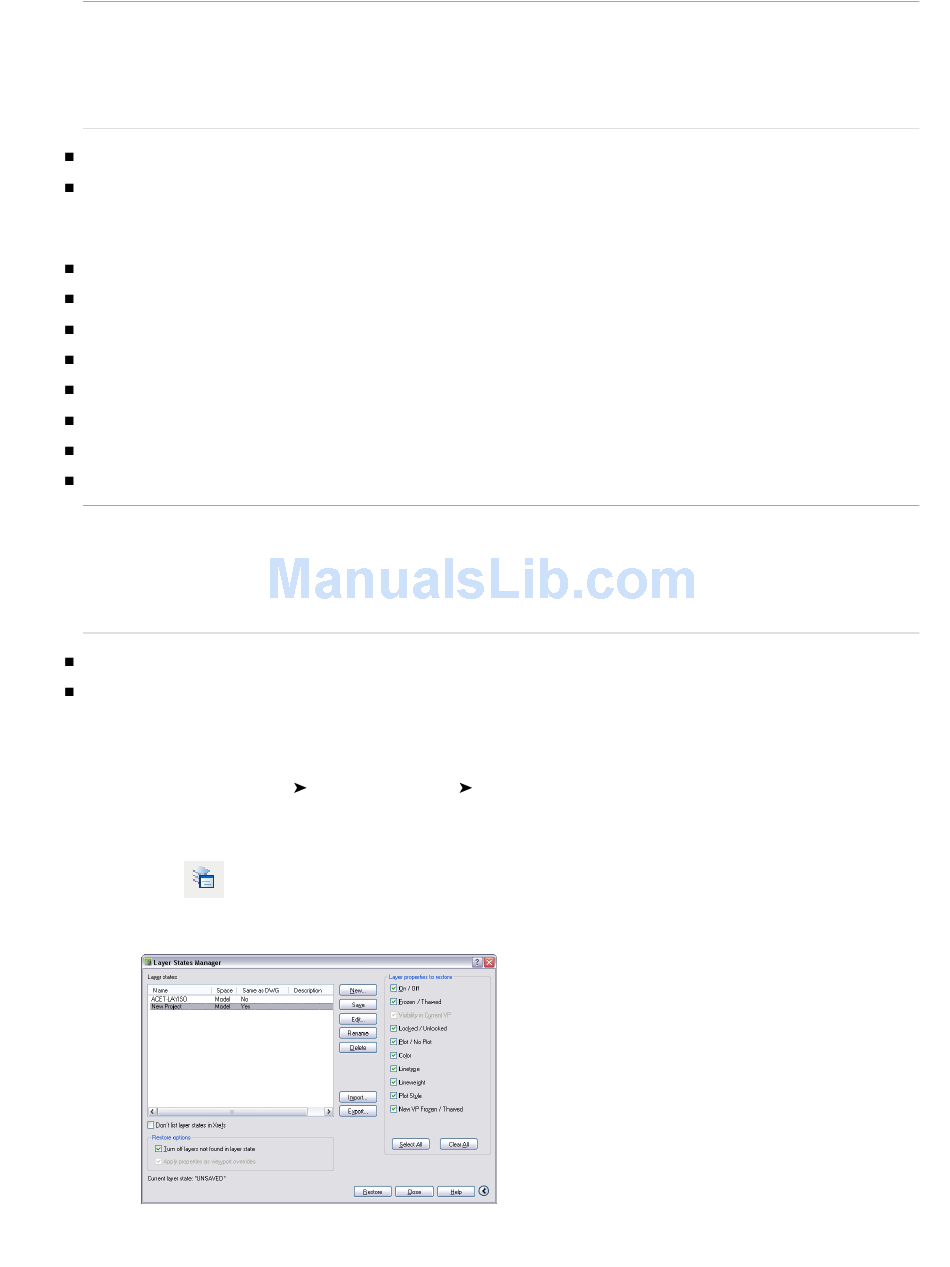

4 Click to open the Layer States Manager.
Saving a layer state
Layer Management Layer Manager.
Creating a Saved Layer State | 421
