EMI information: For information about complying with electromagnetic
interference regulations, see "Electromagnetic Compatibility" in the
SRKA4/ISP4400 Server System Product Guide.
To view or print a Product Guide: See "Product Guides" on page 34.

Connect Monitor, Keyboard, Mouse

CAUTION
Unplug the server. Before connecting external devices, make sure the
server is not plugged in, or equipment could be damaged.

Rear Panel I/O Ports and Features

M
A B
K
L I G F
J H

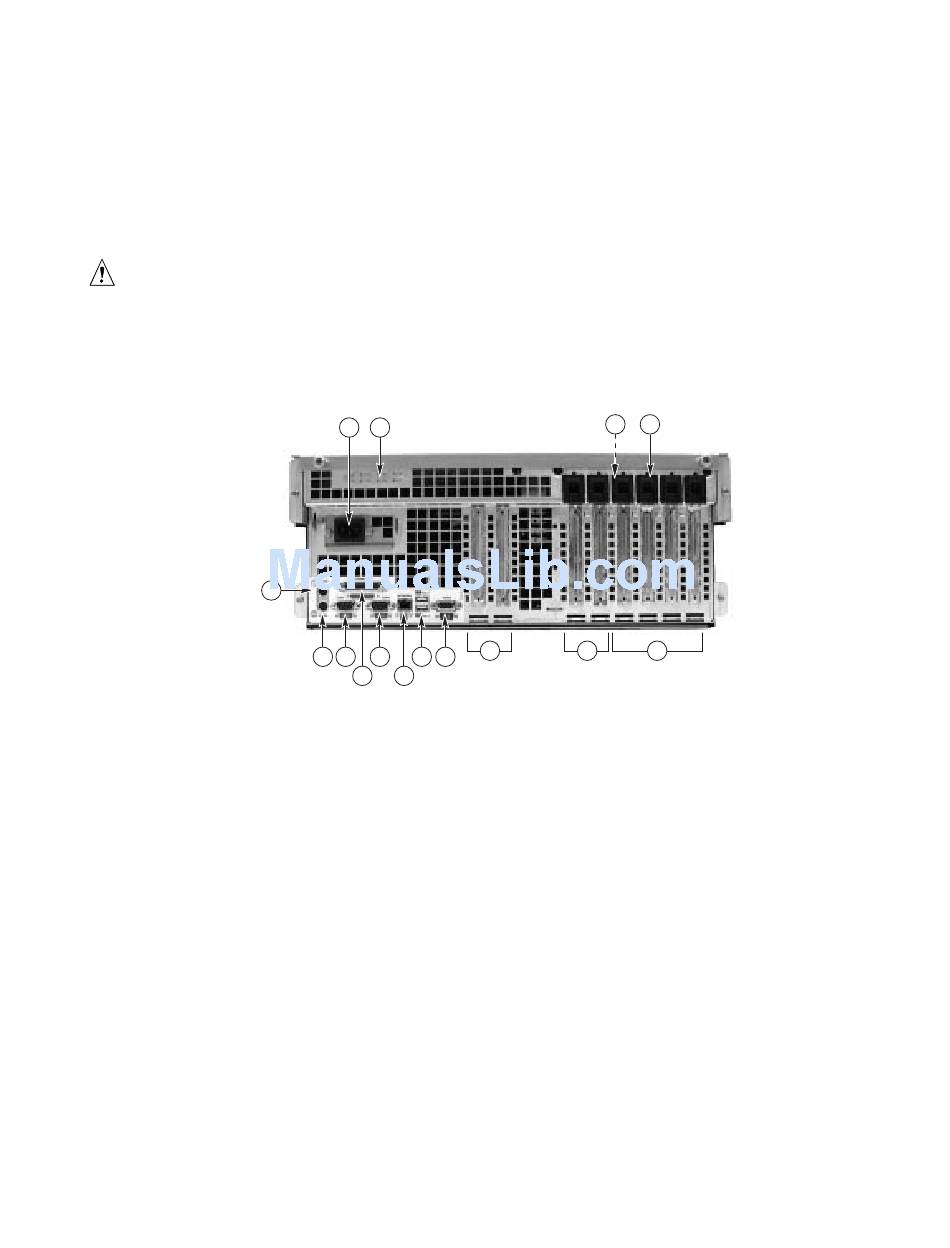

Figure 17. Rear Panel I/O Ports and Features
A. AC input power connector
B. Two optional external SCSI connector ports. The figure shows only
one connector port, but your system has two
C. Hot-plug 64-bit, 33 MHz PCI add-in board slots
D. Hot-plug 64-bit, 66/33 MHz PCI add-in board slots
E. Non-hot-plug 32-bit, 33 MHz PCI add-in board slots. These slots can
also accept an optional Intelligent Chassis Management Bus (ICMB)
SEMCONN 6-pin connector in/out connector, port 1
F. Video connector
G. USB ports 0 (upper) and 1 (lower), 4-pin connectors
H. NIC RJ45 connector
I. Serial port 2 (COM2), 9-pin RS-232 connector
J. IEEE 1284 compliant, 25-pin bi-directional parallel connector
K. Serial port 1 (COM1), 9-pin RS-232 connector
L. PS/2-compatible keyboard connector
M. PS/2-compatible mouse connector
N. HW push button
O. PCI green and amber LEDs on the inside of the chassis
O N
D
E C
SRKA4 /ISP4400 Server System 25
