Goodrive600 Series VFD Auto Station Programmable Card Programming cases
5 Programming cases
Programmable card (PLC card for short) digital input/output terminal application is as follows:
Example: When the PS1 terminal of the PLC card has input signal, the RO1 terminal of the
VFD has output. When both the S2 and S3 terminals of the VFD have input signal, the RO2
terminal of the VFD has output.
Implementing method: The LD is used for programming.
VFD function code setting: P06.03=44 (RO1 is given by the PLC card) and P06.04=45 (RO2
is given by the PLC card)

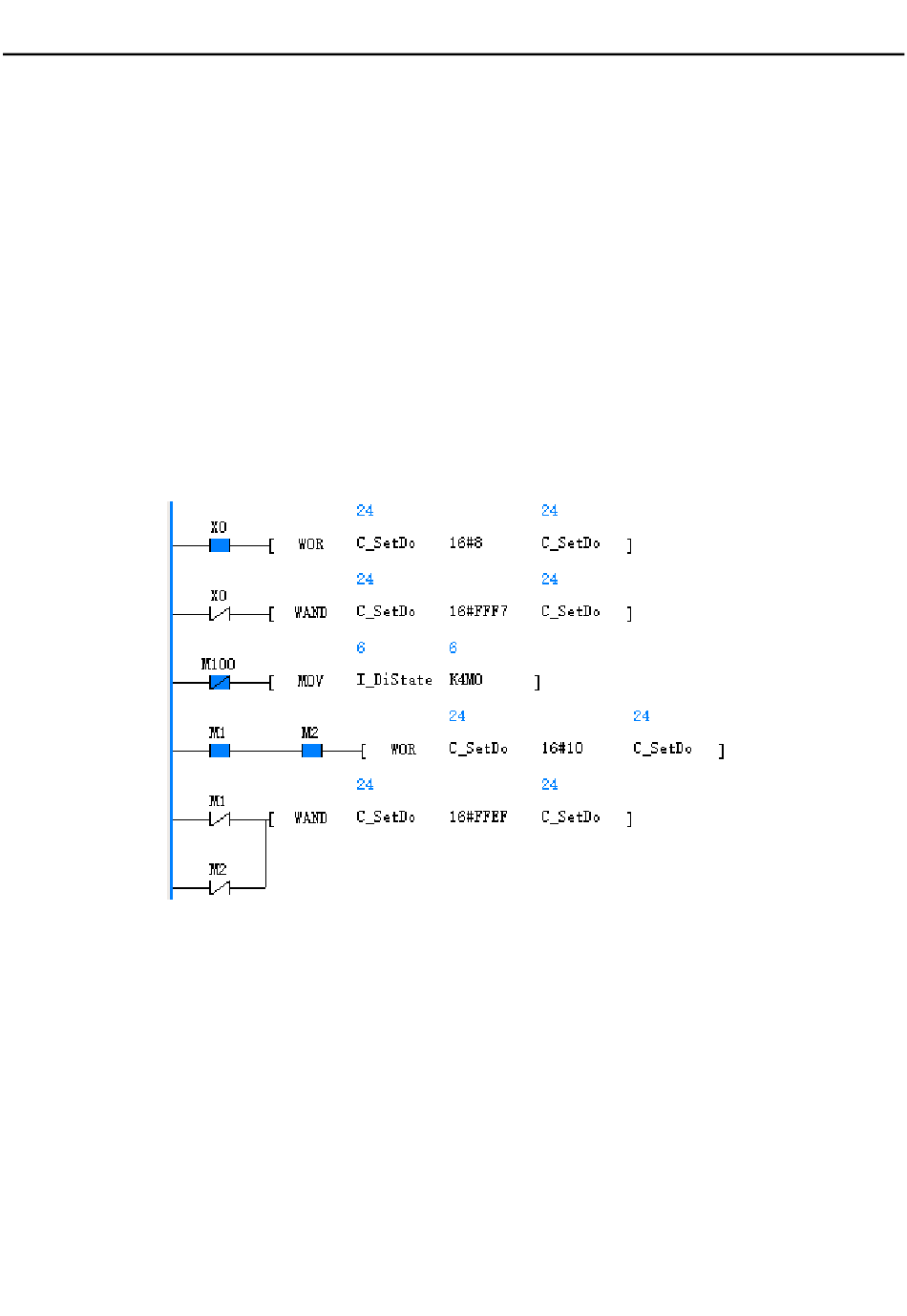

The following figure shows the code example and online debugging result:
Figure 5-1 Programming case for PLC card digital input/output terminals
