Goodrive600 Series VFD Auto Station Programmable Card
installation guide.
After installing the driver, open the Auto Station. After creating a project, choose PLC
Communication > Connect, and choose Program Port Setting. Set related parameters.
Generally, you only need to select the serial port (for example, COM5).
3.3 How to edit programs on the Auto Station
1. After opening the Auto Station, choose File > New Project to create a project. Select
IVC1L as the PLC type since the PLC card uses the structure of the IVC1L
programmable controller developed by us. See the following figure.
You can also choose Tool > Options... to change the default editor (program editing

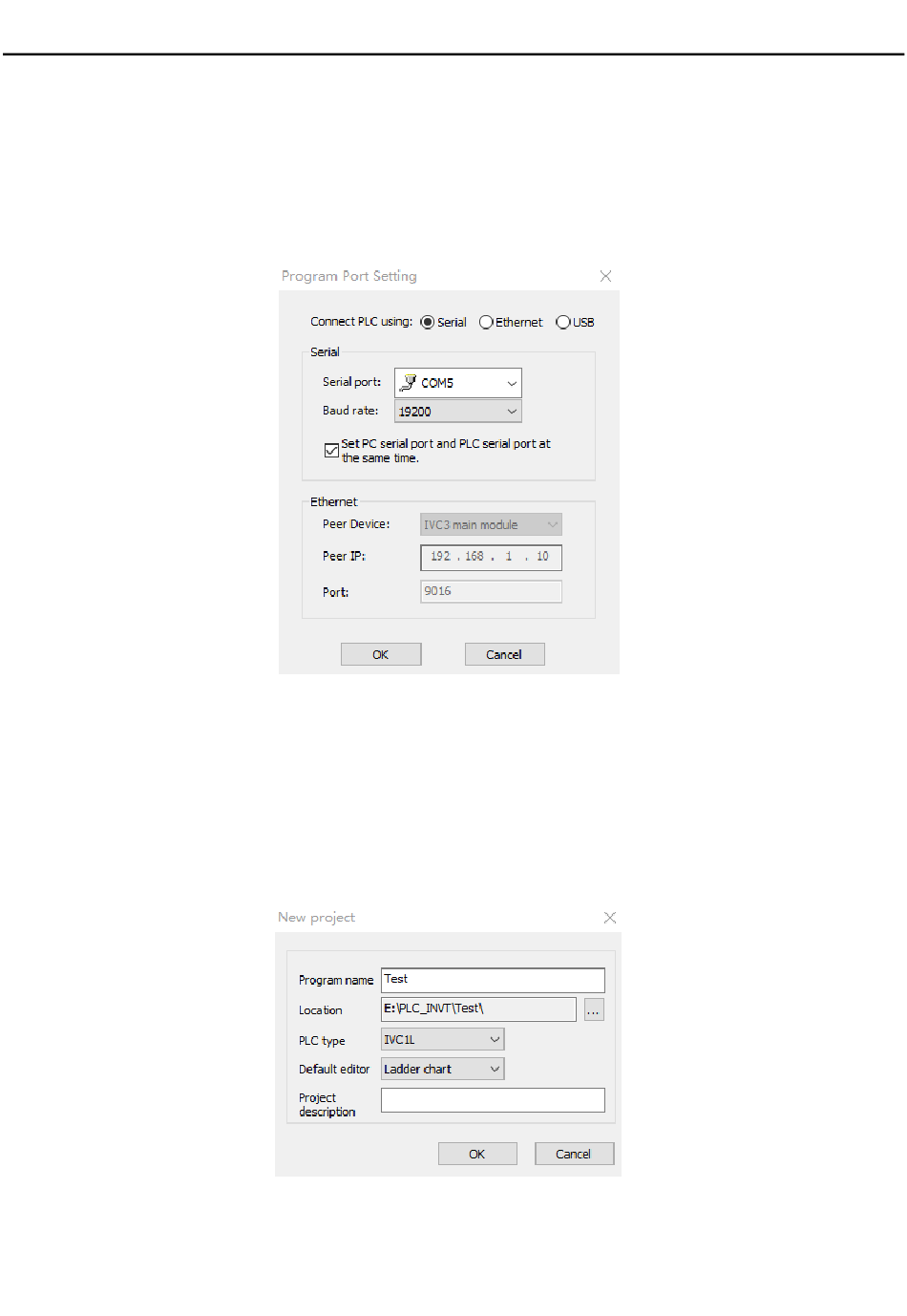

Figure 3-2 Serial port setting for program download
Figure 3-3 Creating a project
Secondary development platform
-7-
