Goodrive600 Series VFD Auto Station Programmable Card Auto Station programming interfaces

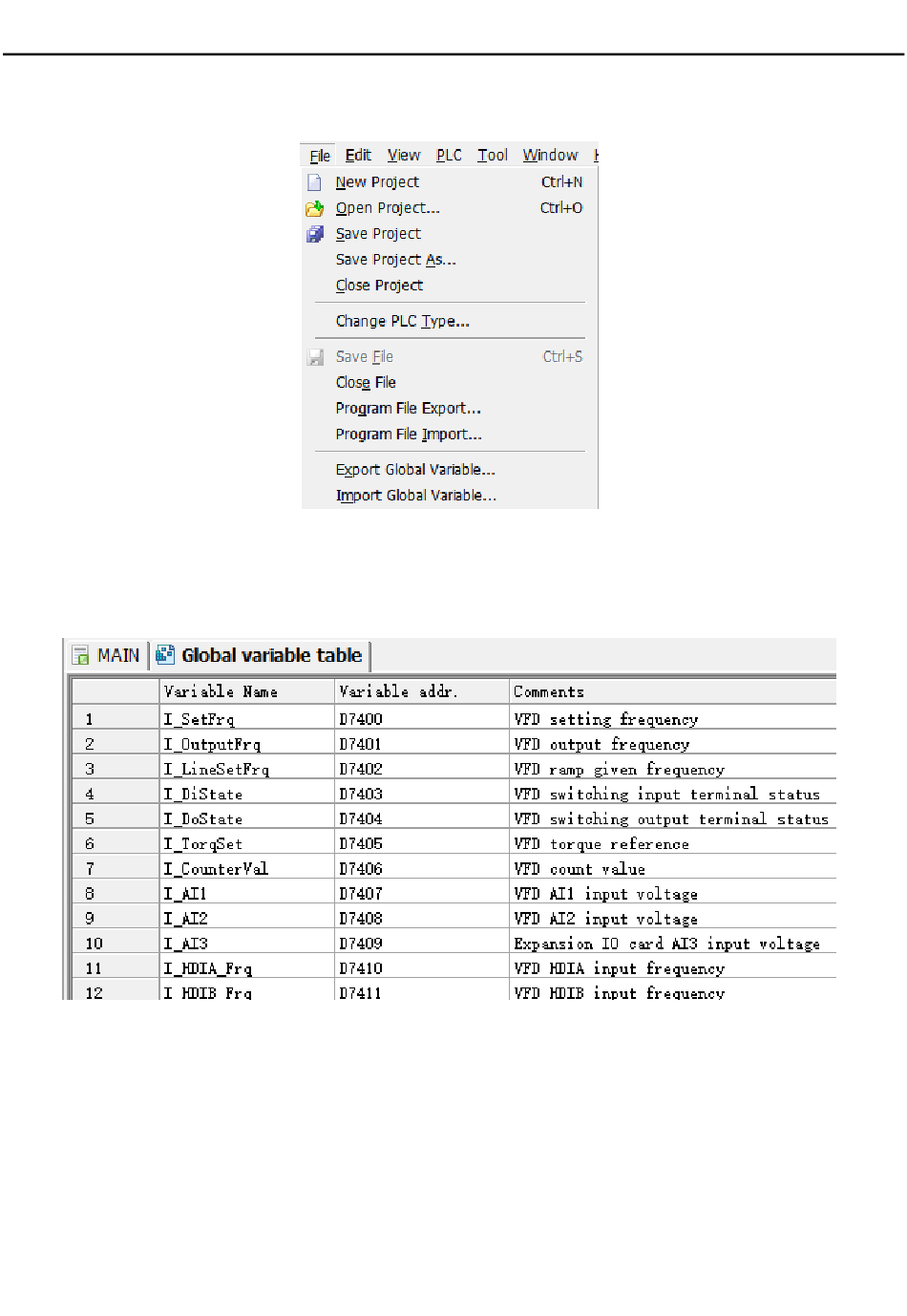

Figure 4-1 Importing global variables
The imported global variable table is similar to the following.
Figure 4-2 Global variables
When programming, you can directly use the variable names in the global variable table or
use the corresponding D elements (after D elements are written, the system automatically
replace the D elements with corresponding variable names). The following is an example of
saving the set frequency of the VFD to the element D100.
