Components
Stoppers on axis
Ambient light
Screws of BPA (Beam
Plus Adapter)
4 or 6 screws
PLG-II / PLG-II SKY
SATELITE adapter in-
stallation
6xM6
Connection screws
between axis 3 and the
flange plate of suspen-
sion tube
Accessories
Electrical socket
Gas outlet
Ceiling attachment
Welded points

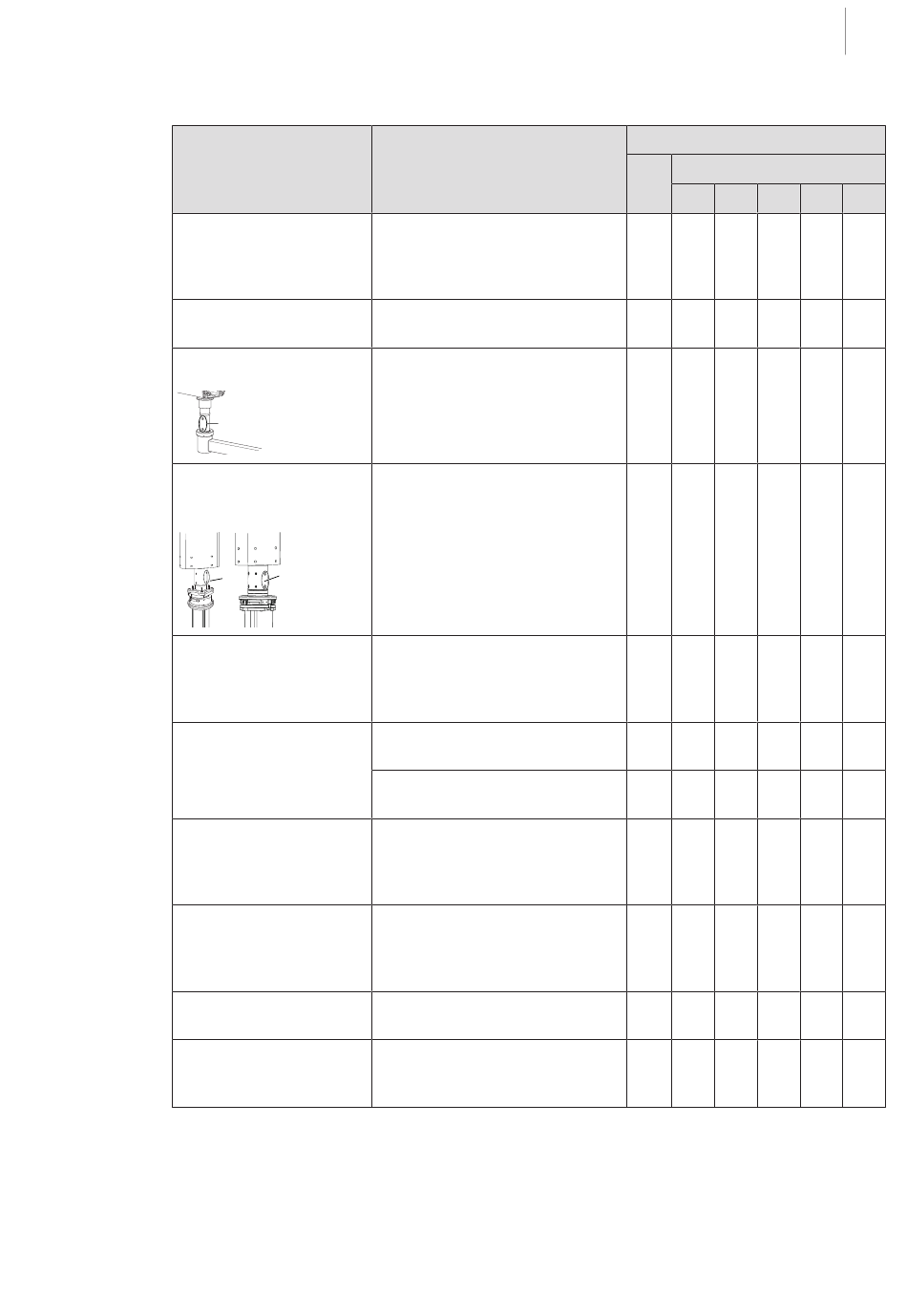

Tab. 16: Maintenance table
Moduevo
IFU 009001001 EN 13
Maintenance steps
Visual inspection:
check the fixed pin. No damage
or distorted, replace by new one
periodically.
Function test and brightness set-
ting
Check the tighteness of the 4 or
6 installation screws, tightening
torque: 14 Nm
Replace the screws periodically.
Check the tighteness of the 6 in-
stallation screws, tightening
torque: 49Nm for M10 screws of
PLG-II SKY installation, 10Nm
for M6 screws of PLG-II installa-
tion.
6xM10
Replace the screws periodically.
Check the screws' tighteness
and tighten them if necessary.
Check the tighteness of clamp
screws, tighten torque: 14 Nm.
Check if the conducting screw of
clamp is tightened.
Visual and functional inspections:
no breakage, poor contact, iden-
tification missing or func-tional
defect.
Visual and functional inspections:
no breakage, leakage, smudgy,
identification missing or func-
tional defect.
Check:
torque of M16 nuts is 200Nm.
Visual inspection:
no rusting, crack, loose weld or
shape change.
Maintenance
Inspection and Maintenance
Maintenance interval
An- Every X years
nual
2 3 5
X XX
X
X
X
X
X
X
X
X
— — — X
— X
7
6 10
XX
XX
