Introduction
1
Overview
1.5 Overview
Medical ceiling supply units are made up of various different modules and accessories which are,
in many instances, available in a number of versions.
In the section below, we use medical ceiling supply units with a basic configuration as an ex-
ample.

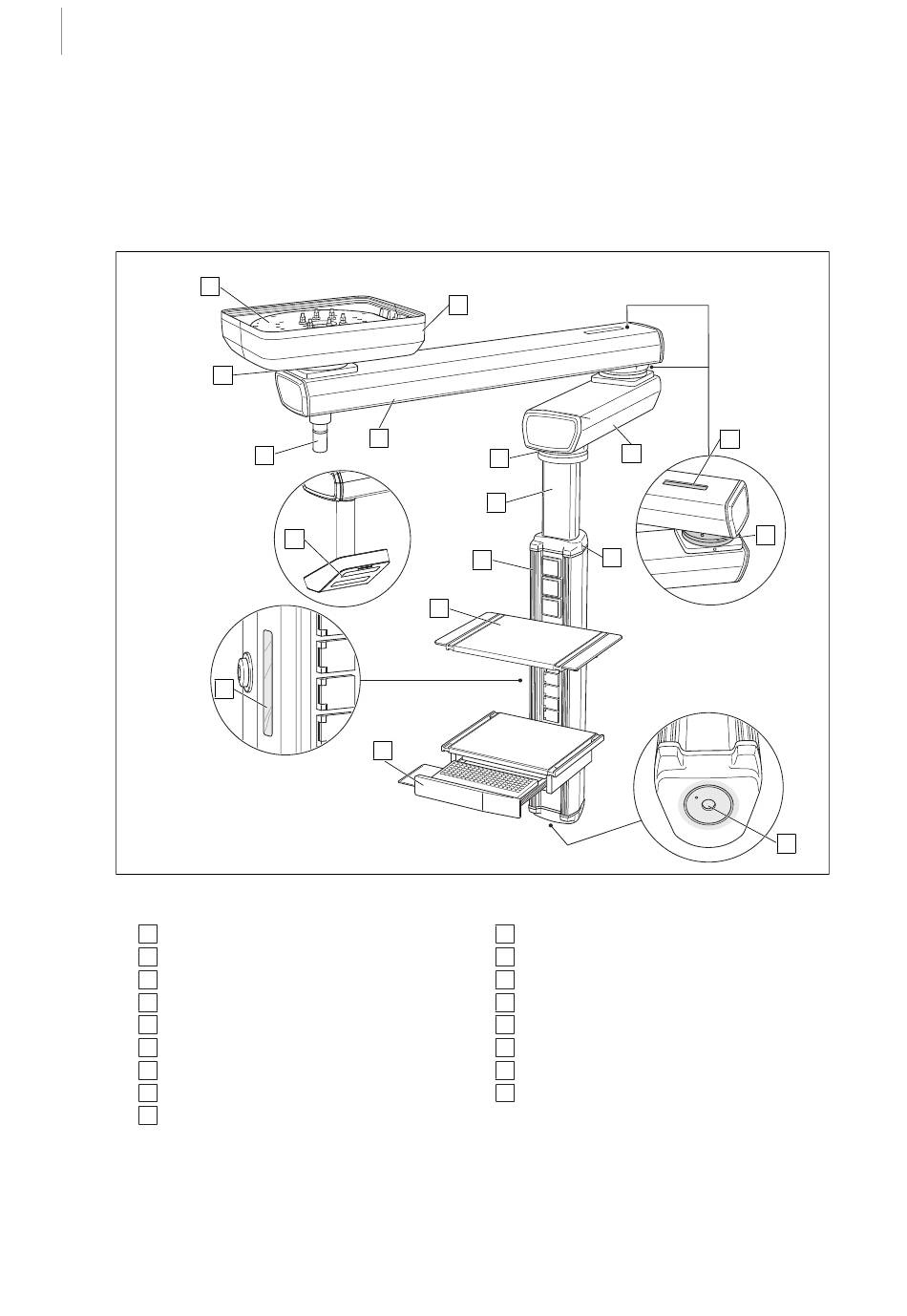

Fig. 3: Overview of the medical ceiling supply units (sample configuration)
1 Ceiling cover
2 Fixation flange with spacer tube
3 Axis 1
4 Upper beam
5 Axis 2
6 Lower beam
7 Axis 3
8 Suspension tube
9 Distributor module
14 / 104
2
3
4
16
17
14
12
1
7
8
10
11
10 EPoS rail
11 Shelf
12 Shelf with keyboard holder
13 Floor light, optional
14 Distributor light, optional
15 Beam light, optional
16 Beam Plus Adapter, optional
17 SOMNUS Carrier, optional
15
6
5
9
13
