4.1 Examples of a useful load calculation:

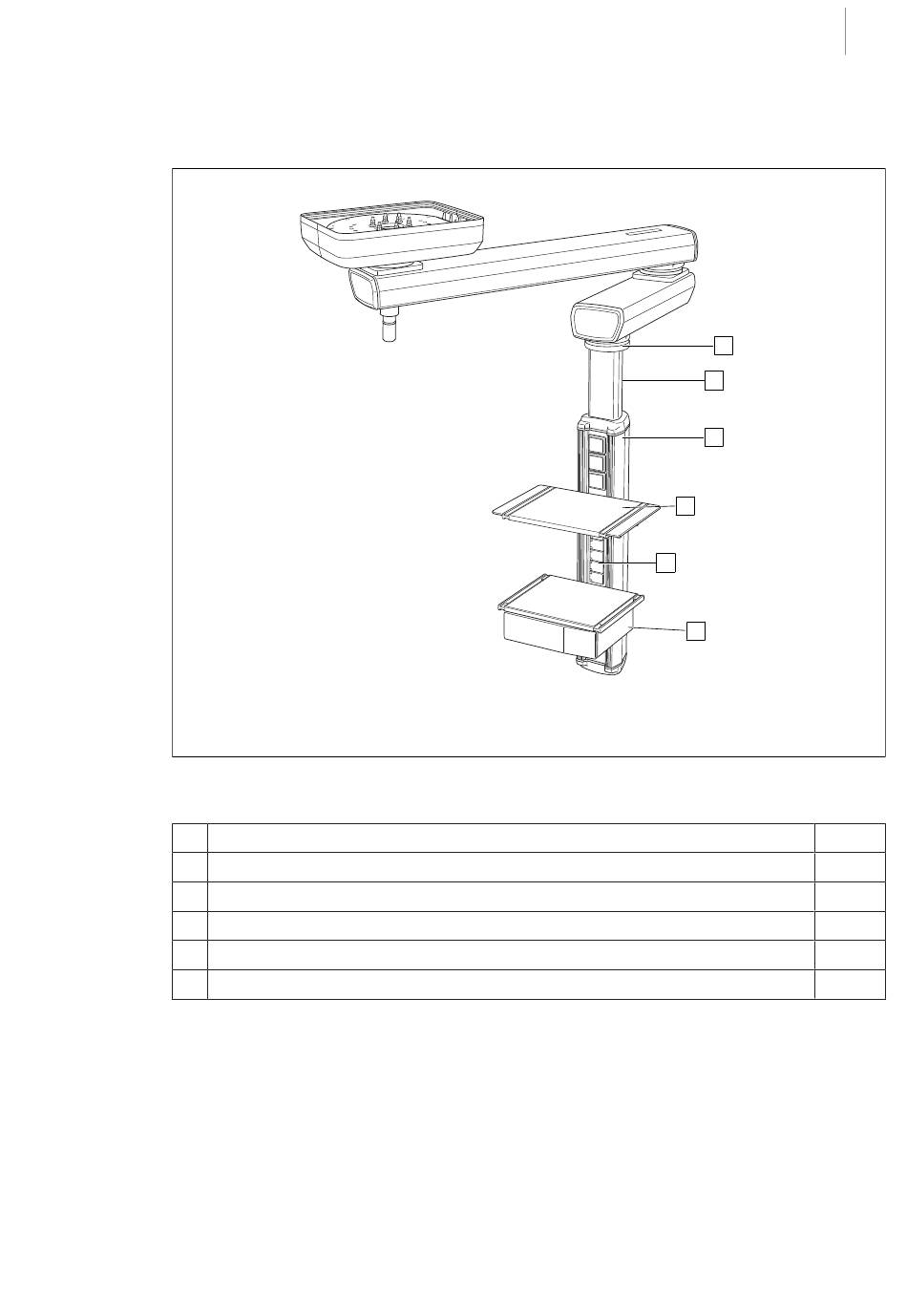

Fig. 4: Useful load calculation on the basis of a medical ceiling supply unit with solo system, a double
arm and SLIM distributor module
1 Load capacity of the double arm with LIGHT beams, reference number 6.6
2 Net weight of suspension tube, 400 mm
3 Net weight of distributor module SLIM, 800 mm
4 Net weight of shelf, 485 × 450 mm
5 Net weight of 10 gas connections (0.5 kg / gas connection)
6 Net weight of drawer, 485 x 450 mm
Moduevo
IFU 009001001 EN 13
Calculate the useful load of the medical ceiling supply units
Examples of a useful load calculation:
1
2
3
4
5
6
4
296 kg
3 kg
14 kg
6.4 kg
5 kg
6.9 kg
49 / 104
