5.15.14 Attaching the detachable parts to a rail (side rail, straight rail or wrap rail)
3

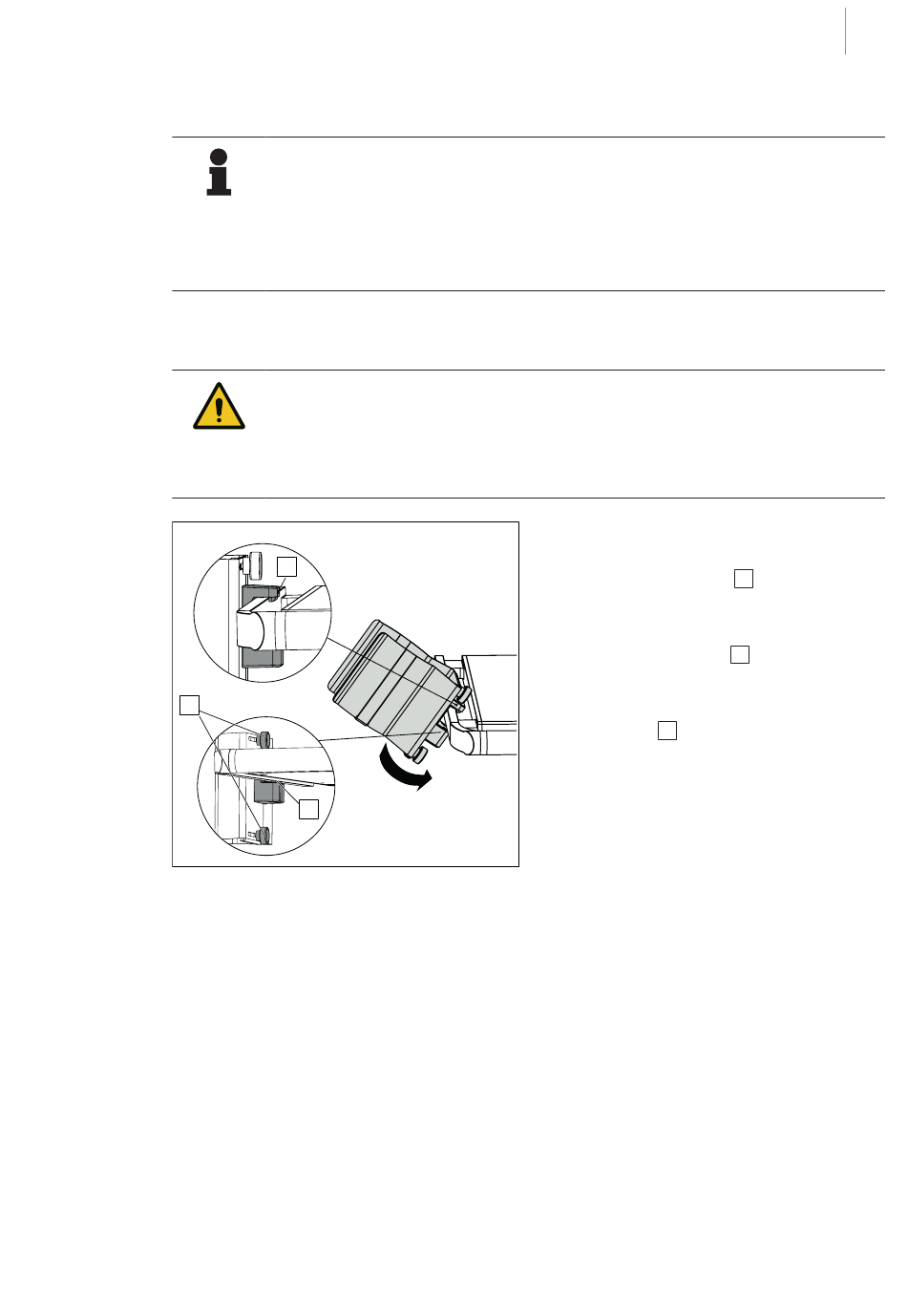

Fig. 47: Attaching the detachable parts to a rail
Moduevo
IFU 009001001 EN 13
N
O T E
If the gas cylinder holder is used on distributor under mechanical arm, the distance
between the bottom of distributer and floor should be considered.
In case that gas cylinder holder is used on distributor of ENERGY, technician
should adjust the limit switch to make sure there is a 100mm or more distance
between the floor and the bottom surface of gas cylinder holder when ENERGY at
the lowest position.
W !
AR N I NG
Property damage!
If the arm or the distributor module are adjusted with force, any unsecured
detachable parts may be thrown to the floor.
Do not use any torque when adjusting the distributor module.
1
2
Operation and use
1. {Incline the part slightly and attach it to the
rail (side rail, straight rail or wrap rail),
making sure the hook
erly with the top of the rail.
2. Turn the part as indicated by the arrow,
ensuring the spheres
with the bottom of the rail.
3. For the wipe canister holder, loosen the
two screws to adjust the plate to an ap-
3
propriate diameter, then tighten them.
5
Accessories
engages prop-
1
engage correctly
2
