7. TROUBLESHOOTING
Turnstile out of service.
Friction will be visible during
movements.
Obstacle cannot be unlocked.
Obstacle cannot be locked.
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using this information for any purpose
other than the use of the products or the execution of the project to which it refers and from communicating it to third parties without prior written agreement of Automatic
Systems. The document is subject to change without notice.
TRS373-MT-EN-01
See messages on the control board display (OPERATION group, STATUS parameter).
Bolts and/or rollers may be seized up, especially in corrosive conditions (e.g. in a
marine environment). Spray some silicone on parts that must be unseized.

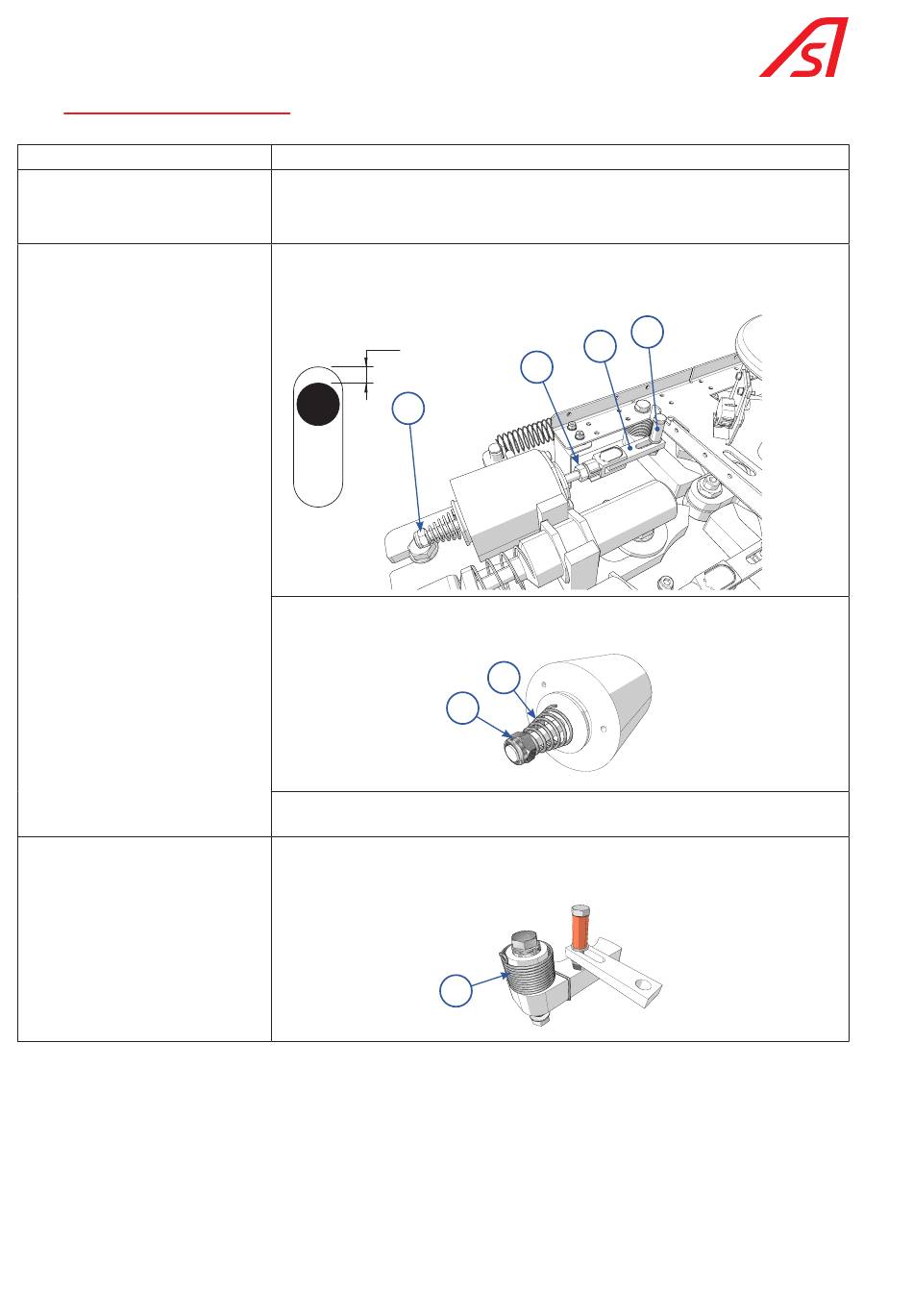

Leave a gap between the connecting rod (B) of the electromagnet and the bolt
stem (D) (setting the length of the connecting rod using nuts P and Q) in order to
create an impact on the bolt when the electromagnet is activated.
1 to 2 mm
Q
The electromagnets could become stuck if tightened too tightly. Slightly loosen
nut (Q) in order to decompress spring (C).
Spring (C) does not have the power needed to pull the bolt: compress the spring by
tightening nut (Q) or replace it.
Bolt release spring (K) is loose.
Re-tighten the spring by a few turns.
B
P
C
Q
K
D
