4.5. ELECTRICAL CONNECTIONS
The user is responsible for the power and control cables shown on the installation drawing.
If other than the recommended power cables are used, they must be separated from the control cables in order to
avoid interference, i.e. they must run through different uprights.
1. Connect the 2 phases of the power supply (single phase 120/230 VAC - 50/60 Hz) to the circuit breakers (1 per
passageway) and the ground.
PROTECT THE UPSTREAM LINE USING A 16 A CIRCUIT BREAKER.
2. Connect optional equipment (card reader, etc.) in accordance with the electrical diagrams.
3. Engage the circuit breaker.
4. Configure the control board parameters in accordance with the installed options OPTIONS group).
5. Send a passage command and check whether the turnstile is working properly: unlocking, obstacle rotation and
locking.
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using this information for any purpose
other than the use of the products or the execution of the project to which it refers and from communicating it to third parties without prior written agreement of Automatic
Systems. The document is subject to change without notice.
TRS373-MT-EN-01

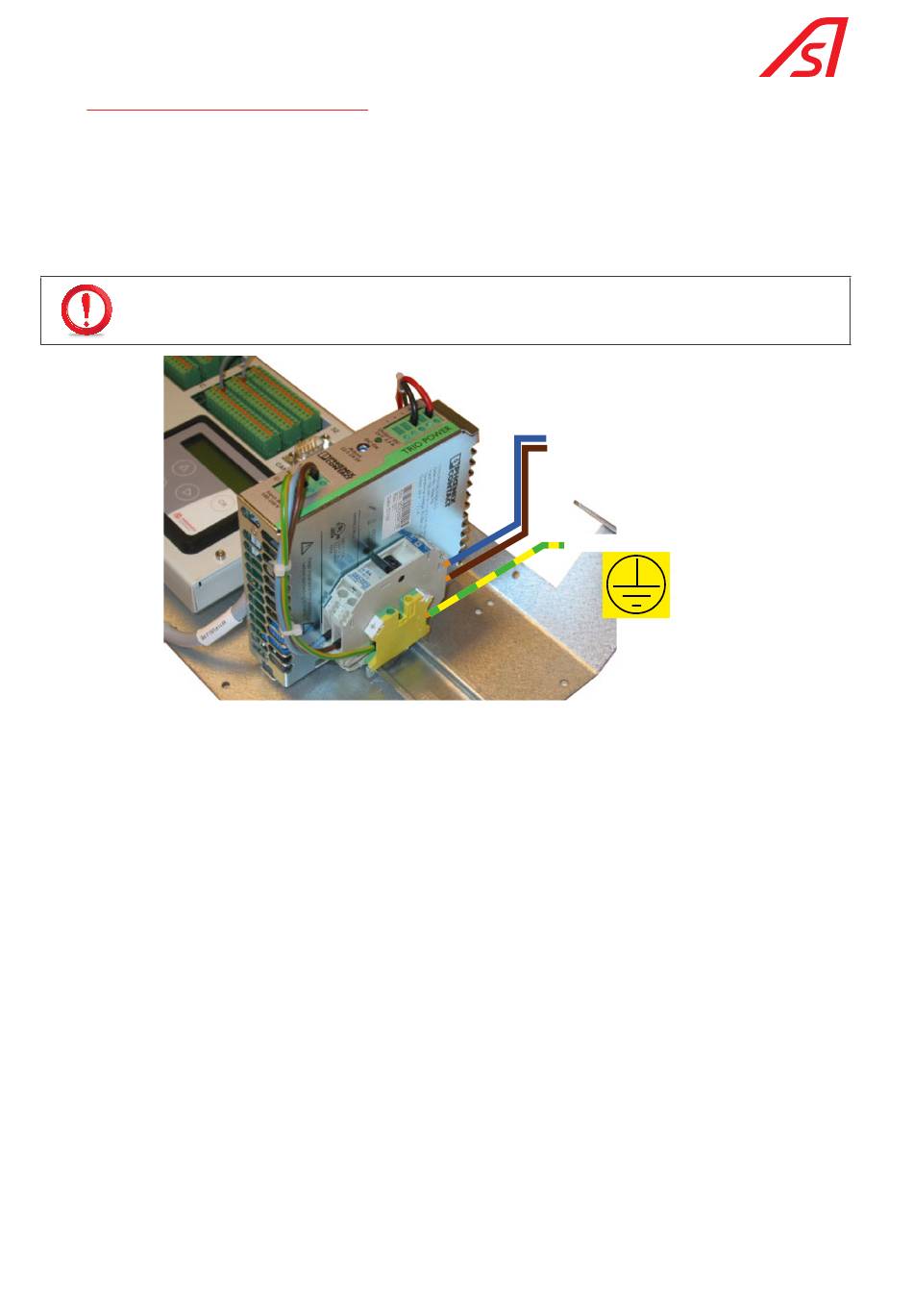

Inlet for the 2 power
cables
Inlet for the ground
Fig. 27
